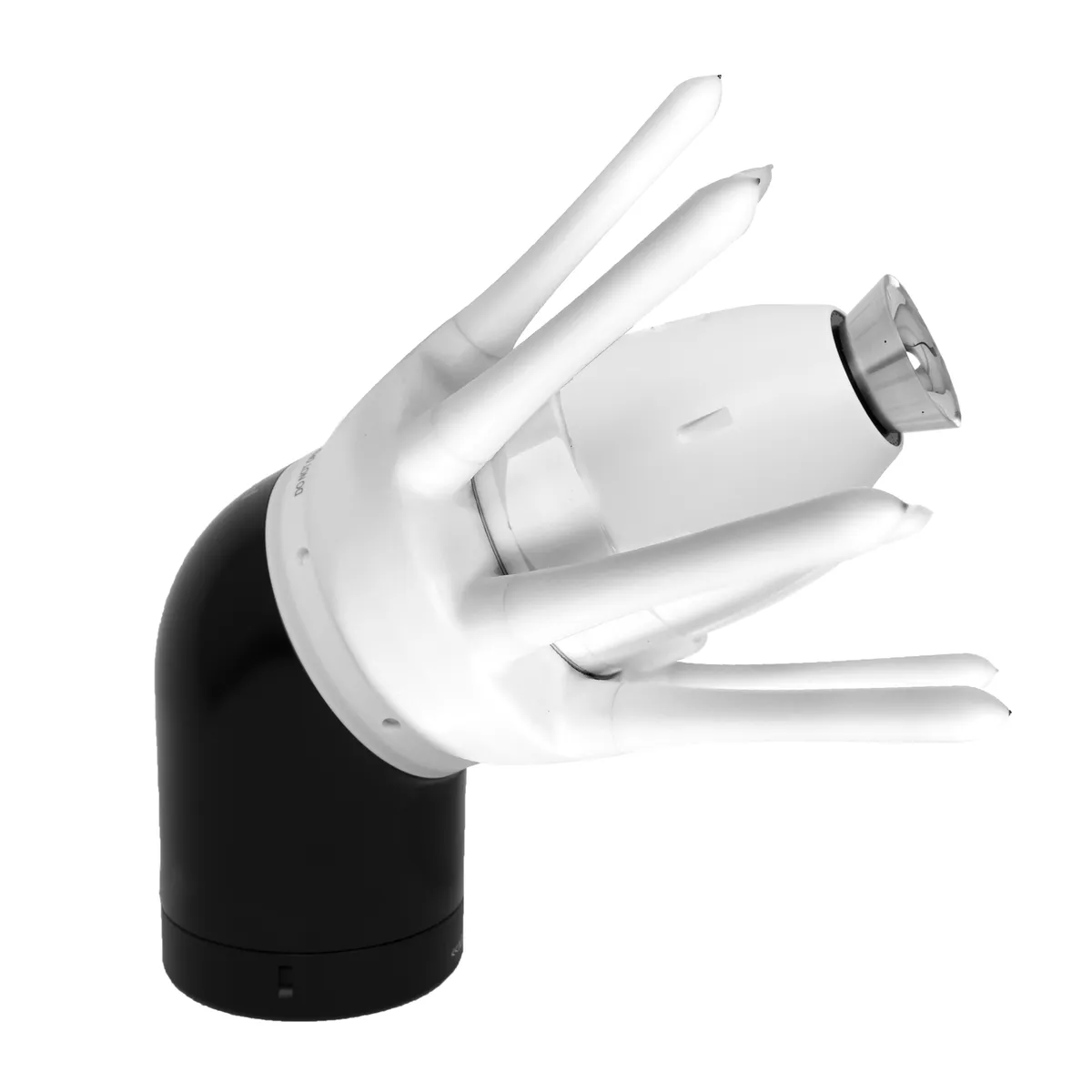

PPH707 EXT external charge sprayer is designed for the application of water-based materials.
PPH707 EXT external charge sprayer is designed for the application of water-based materials.
Product Status:
Category:
Manufacturer:
PPH707 EXT external charge sprayer is designed for the application of water-based materials.
♦ High rotating speed whatever the paint flow for the finest atomizing
♦ High voltage unit gives the maximum electrostatic effect for highest transfer efficiency possible
♦ Hi-TE dual shaping air with patented mixing straight and vortex airs
♦ The dual circuit allows a very fast color change
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 101 |
| Liquid Electrostatic Technology | External charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 20 - 40 |
| Maximum Flow (cc/min) | 700 |
| Maximum Flow (gal/min) | 0.185 |
| Minimum Flow (cc/min) | 30 |
| Minimum Flow (gal/min) | 0.008 |
| Standard Paint Flow (cc/min) | 400 |
| Standard Paint Flow (gal/min) | 0.106 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Maximum Total Air Consumption (NL/min) | 126 |
| Weight (kg) | 7 |
| Weight (lbs) | 18.75 |
| Current Max (µA) | 500 |
| High Voltage (maximum) (kV) | 80 |
| High Voltage Control Module | GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT330 / UHT330c |
| Type of electrostatic charge | External charge |
| Certification | II 3 G X T6 E > 2 J |
| Product Resistivity (min-max) (MOhm.cm) | <3 |
| Rotation Speed (rpm) | 15 - 70000 |
| Spraying type | Bells |
| Designation | Part number |
|---|---|
| UHT330c | 910030615 |
| PPH 707 EXT [curved fingers] | 910030745 |
| Designation | Part number |
|---|---|
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Ethercat | KIT ELEC-707EXT-300_RS-BW-170-XXX-080-300_RS-STD-H200-EC |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network CC-Link | KIT ELEC-707EXT-300_RS-BW-170-XXX-080-300_RS-STD-H200-CC |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Ethernet/IP | KIT ELEC-707EXT-300_RS-BW-170-XXX-080-300_RS-STD-H200-IP |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Profibus | KIT ELEC-707EXT-300_RS-BW-170-XXX-080-300_RS-STD-H200-PB |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Profinet | KIT ELEC-707EXT-300_RS-BW-170-XXX-080-300_RS-STD-H200-PN |
For pricing and availability on the Sames PPH707 EXT Robotic sprayer with external charge electrodes for water-based materials, call FTS at (248) 348-6700 or request a quote online.
