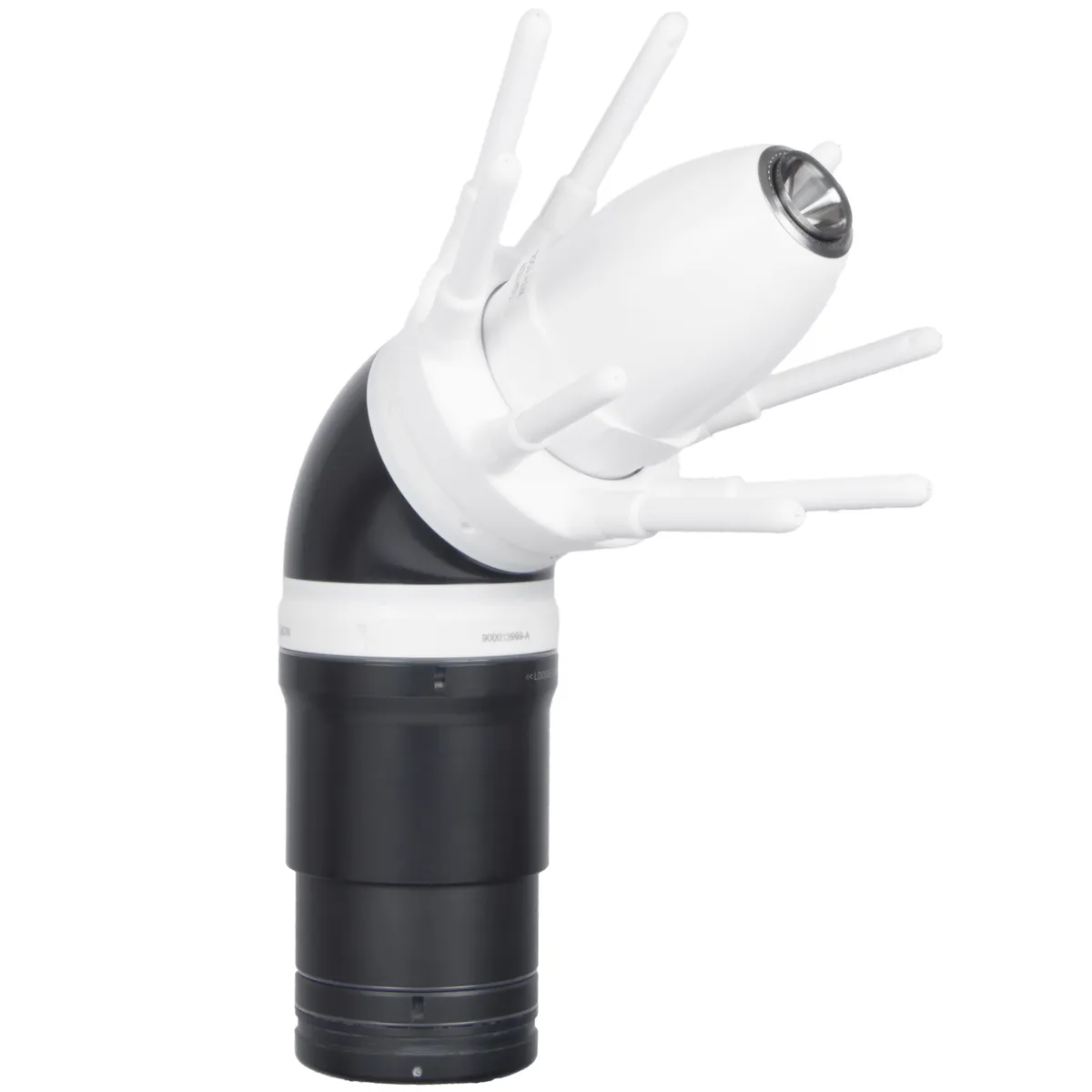

PPH707 EXT external charge sprayer is dedicated to the application of waterborne materials. This version of the PPH707 EXT features multi-trigger (MT) technology, which integrates a color change block in the body of the atomizer. This color change block allows for 1 super-high runner and 5 high runners, saving paint on color changes.
Product Status:
Category:
Manufacturer:
PPH707 EXT external charge sprayer is dedicated to the application of waterborne materials. This version of the PPH707 EXT features multi-trigger (MT) technology, which integrates a color change block in the body of the atomizer. This color change block allows for 1 super-high runner and 5 high runners, saving paint on color changes.
1. High rotating speed whatever the paint flow for the finest atomizing
2. High voltage unit gives the maximum electrostatic effect for highest transfer efficiency possible
3. Hi-TE dual shaping air with patented mixing straight and vortex airs
4. The dual circuit allows a very fast color change
6. The large range of bell cups EC50, EX65 and EX80 adapts to every layer to paint
7. The lightweight design of PPH 707 EXT is suitable to every painting robot
8. Remote bell monitoring device avoids spraying without the bell cup, securing the painting process after a shut down
9. High reliability of every component (valves, high voltage, air motor, fittings, bell cup) for high production rate paint shop
10. Titanium bell cup for longer life, high resistance to abrasion 11 7-year/30,0000 hr warranty turbine (whichever is sooner)
12. Magnetic bell cup fastening system: The easiest system on the market
13. Easy to maintain the full atomizer thanks to the Quick disconnect
14. Cabriolet-style cover for easy access to valve in the atomizer
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 101 |
| Liquid Electrostatic Technology | External charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 20-40 |
| Maximum Flow (cc/min) | 700 |
| Maximum Flow (gal/min) | 0.185 |
| Minimum Flow (cc/min) | 30 |
| Minimum Flow (gal/min) | 0.008 |
| Standard Paint Flow (cc/min) | 400 |
| Standard Paint Flow (gal/min) | 0.106 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Weight (kg) | 10.2 |
| Weight (lbs) | 22.5 |
| Current Max (µA) | 500 |
| High Voltage (maximum) (kV) | 80 |
| High Voltage Control Module | GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT330 / UHT330c |
| Type of electrostatic charge | External charge |
| Certification | II 3 G X T6 E > 2 J |
| Rotation Speed (rpm) | 15 - 70000 |
| Spraying type | Bells |
| Designation | Part number |
|---|---|
| UHT330c | 910030615 |
| PPH 707 EXT MT [curved fingers] | 910030393 |
| Designation | Part number |
|---|---|
| Electric kit : GNM300 + low voltage cable 17+8m+ BSC 300 + microphone 20m + Profinet | 910030641 |
For pricing and availability on the Sames PPH707 EXT MT Robotic sprayer with external charge electrodes & multi-trigger technology, call FTS at (248) 348-6700 or request a quote online.
