The TRP gun is light, compact and is very flexible in its applications. Its simple and robust design makes it extremely reliable. (For US, Canada & Mexico Only)
The TRP gun is light, compact and is very flexible in its applications. Its simple and robust design makes it extremely reliable. (For US, Canada & Mexico Only)
Product Status:
Category:
Manufacturer:
The TRP gun is light, compact and is very flexible in its applications. Its simple and robust design makes it extremely reliable. (For US, Canada & Mexico Only)
♦ High flow rate - up to 1200 cc/min
♦ High transfer efficiency compared to conventional gun
♦ Heavy-duty piston for extended life of trigger
♦ Integrated High voltage cascade
♦ Remotely controlled gun parameters
♦ Fan or vortex pattern
♦ Quick disconnect
♦ Integrated supply & dump circuits
♦ Insulated support device
| Designation | Value |
|---|---|
| Liquid Electrostatic Technology | Internal charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 14 - 60 |
| Maximum Flow (cc/min) | 1200 |
| Maximum Flow (gal/min) | 0.317 |
| Minimum Flow (cc/min) | 200 |
| Minimum Flow (gal/min) | 0.053 |
| Standard Paint Flow (cc/min) | 800 |
| Standard Paint Flow (gal/min) | 0.211 |
| Current Max (µA) | 200 |
| High Voltage (maximum) (kV) | 100 |
| High Voltage Control Module | GNM200: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT152 |
| Certification | II 2 G EEx > 350 mJ |
| Product Resistivity (min-max) (MOhm.cm) | >3 |
| Spraying type | Airspray |

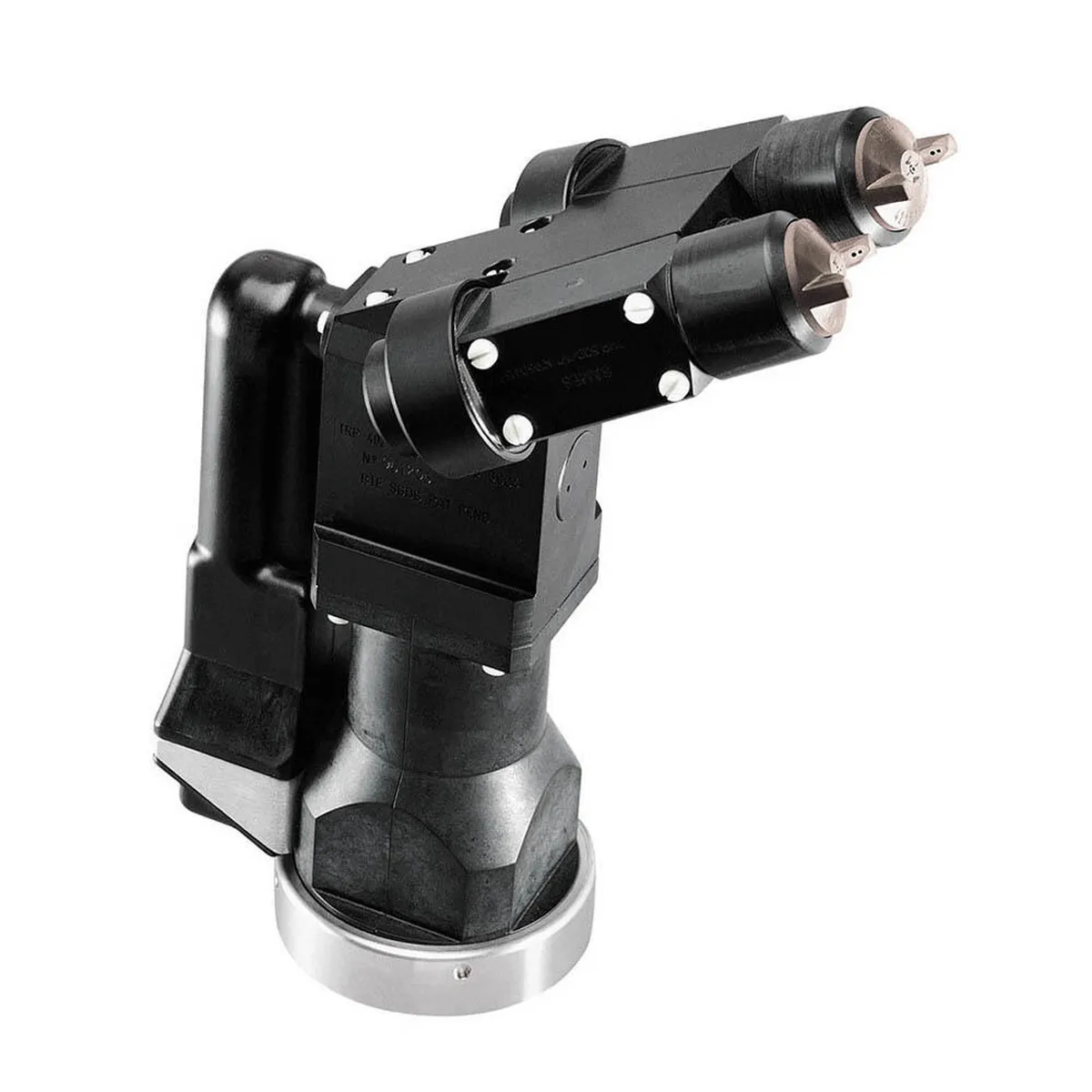

For pricing and availability on the Sames TRP502 Robotic Dual Robotic Electrostatic Spray Gun (US, Canada & Mexico), call FTS at (248) 348-6700 or request a quote online.
