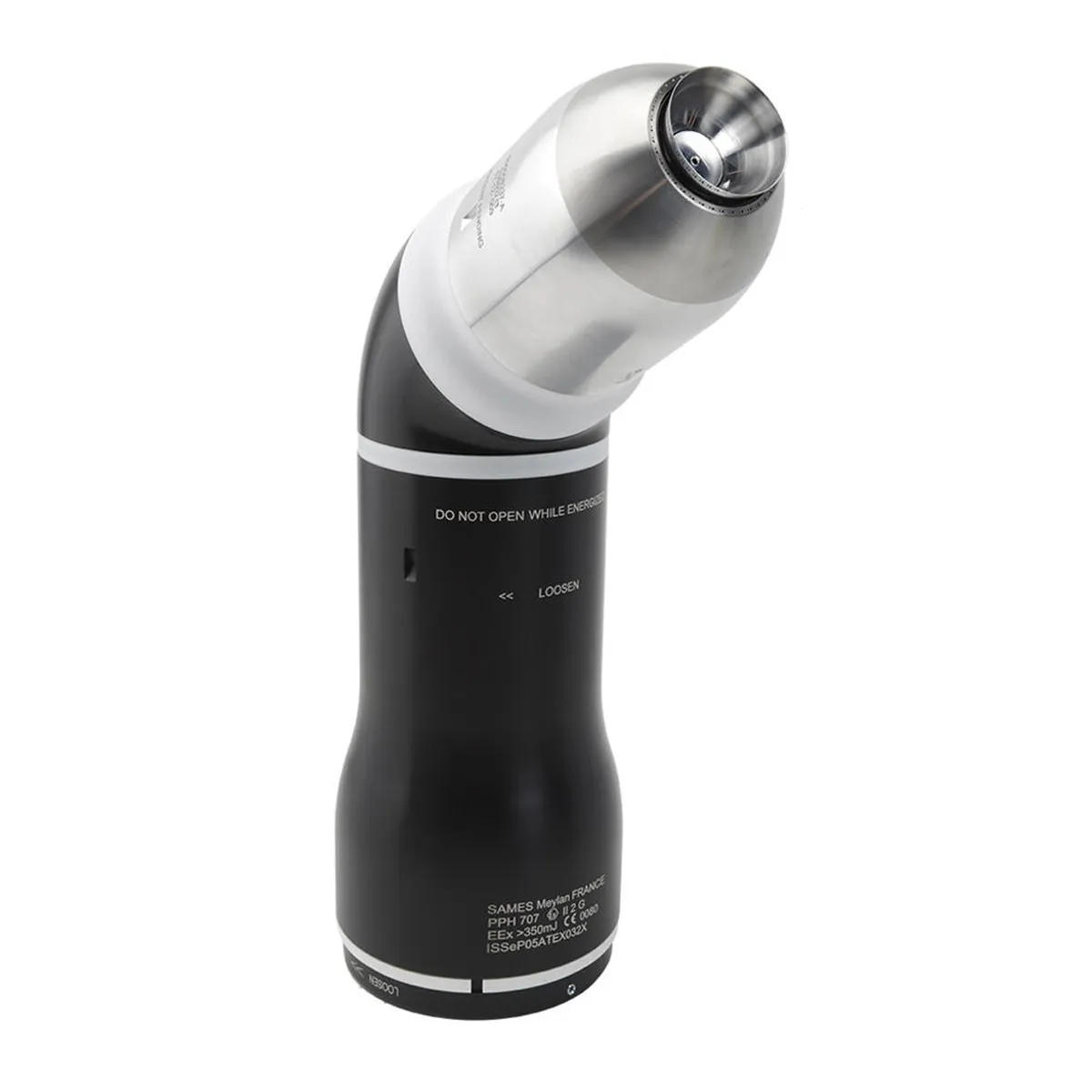

PPH707 SB 2K is a sprayer dedicated to the electrostatic application with internal charge of 2 component liquid paints. It is equipped with the static mixer located just before the bellcup injector which helps to reduce the mixed paint volume to only 2cc (0.07 oz).
Product Status:
Category:
Manufacturer:
PPH707 SB 2K is a sprayer dedicated to the electrostatic application with internal charge of 2 component liquid paints. It is equipped with the static mixer located just before the bellcup injector which helps to reduce the mixed paint volume to only 2cc (0.07 oz).
1. High rotating speed whatever the paint flow for the finest atomizing 2. High voltage unit gives the maximum electrostatic effect for highest transfer efficiency possible 3. Hi-TE dual shaping air with patented mixing straight and vortex airs 4. Integrated 2K static mixer into the injector just behind the bell cup
5. The static mixer is located inside the injector, so the mixed volume lost when flushing is reduced. 6. Both Base & Hardener valves are close to the static mixer for a fast-mixing effect 7. Remote bell monitoring device avoid spraying without the bell cup, securing the painting process after a shut down. 8. Easy to upgrade PPH707 SB to 2K (same TCP and body)
9. High reliability of every component (valves, high voltage, air motor, fittings, bell cup) for high production rate paint shop 10. Microvalves with bellow available for abrasive materials 11. Titanium bell cup for longer life, high resistance to abrasion 12. 7-year/30,0000 hr warranty turbine* 13. Easy disassembly of parts in contact with hardener 14. No mixed material in robot arm, no return back in the supply circuit 15. Magnetic bell cup fastening system: The easiest system on the market 16. Easy to maintain the full atomizer thanks to the Quick disconnect *whichever is the sooner
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 101 |
| Liquid Electrostatic Technology | Internal charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 20 - 40 |
| Maximum Flow (cc/min) | 1000 |
| Maximum Flow (gal/min) | 0.264 |
| Minimum Flow (cc/min) | 30 |
| Minimum Flow (gal/min) | 0.008 |
| Standard Paint Flow (cc/min) | 500 |
| Standard Paint Flow (gal/min) | 0.132 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Weight (kg) | 7.15 |
| Weight (lbs) | 15.76 |
| Current Max (µA) | 200 |
| Hardener Resistivity (min-max) (MOhm.cm) | >3 |
| High Voltage (maximum) (kV) | 100 |
| High Voltage Control Module | GNM200 / GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT157 / UHT157i |
| Type of electrostatic charge | Internal charge |
| Certification | II 2 G 350 mJ < Ex < 2J |
| Mixing head | 1 |
| Product Resistivity (min-max) (MOhm.cm) | >3 |
| Rotation Speed (rpm) | 15 - 85000 |
| Spraying type | Bells |
| Designation | Part number |
|---|---|
| PPH 707 2K UHT157i WITHOUT COIL | _910025901INT |
| PPH 707 2K WITHOUT COIL | 910025901 |
| PPH 707 2K UHT157i | 910023058INT |
| PPH 707 2K | 910023058 |
| Designation | Part number |
|---|---|
| Tool Kit Case 2K | 910029367 |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Ethercat + remote screens | KIT ELEC-707EVO-300_RS-BW-170-XXX-080-300_RS-STD-H200-EC |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network CC-Link + remote screens | KIT ELEC-707EVO-300_RS-BW-170-XXX-080-300_RS-STD-H200-CC |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Ethernet/IP + remote screens | KIT ELEC-707EVO-300_RS-BW-170-XXX-080-300_RS-STD-H200-IP |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Profibus+ remote screens | KIT ELEC-707EVO-300_RS-BW-170-XXX-080-300_RS-STD-H200-PB |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Profinet + remote screens | KIT ELEC-707EVO-300_RS-BW-170-XXX-080-300_RS-STD-H200-PN |
For pricing and availability on the Sames PPH707 2K Robotic sprayer for 2 component paint, call FTS at (248) 348-6700 or request a quote online.
