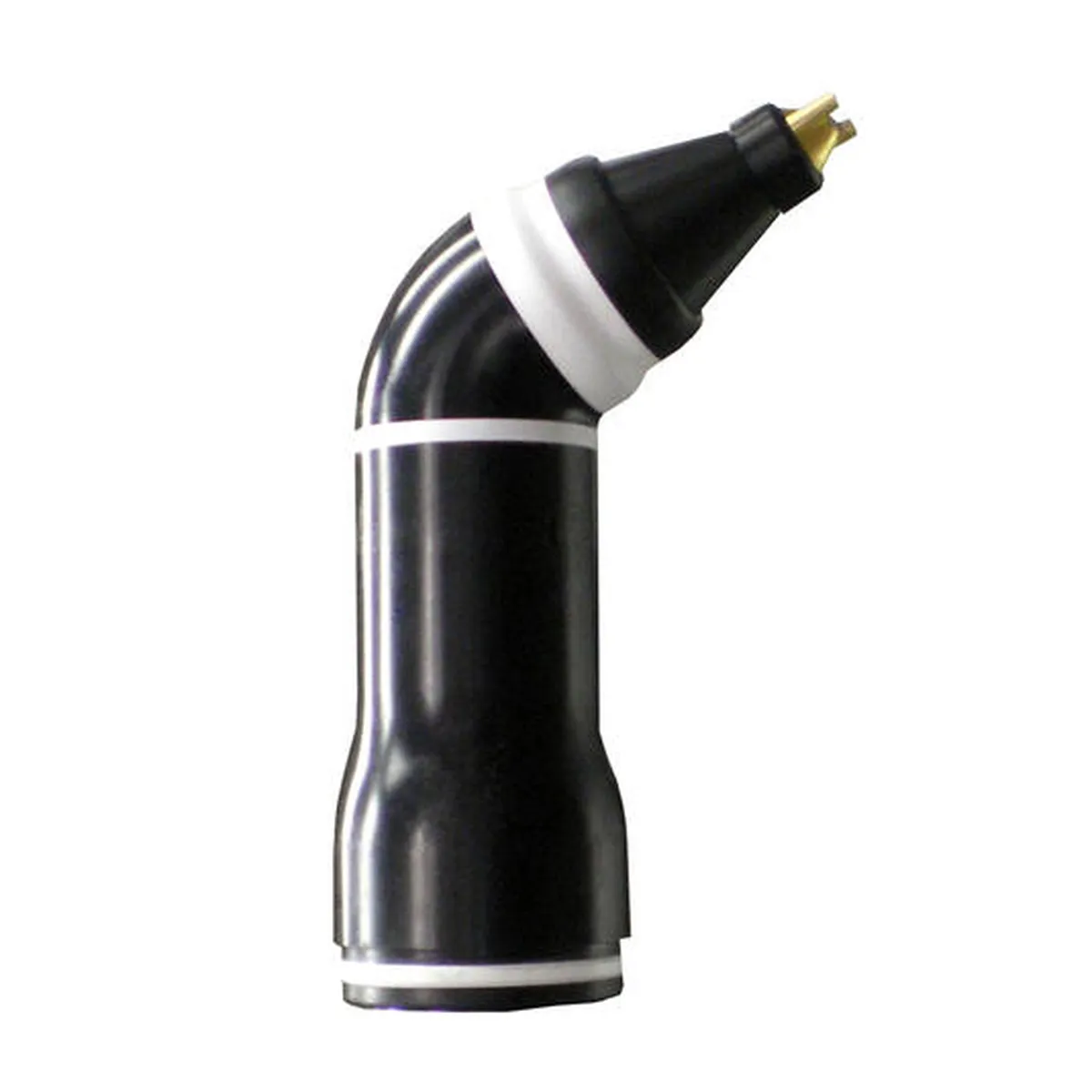

Robotic multi-process atomizer for 2K solvent-based material
Robotic multi-process atomizer for 2K solvent-based material
Product Status:
Category:
Manufacturer:
Robotic multi-process atomizer for 2K solvent-based material
♦ 2K mixing inside the head
♦ High flexibility with quick disconnect
♦ New Super Vortex nozzle available for robotic gun
♦ Common body PPH707 MS-GUN and PPH707 SB
| Designation | Value |
|---|---|
| Liquid Electrostatic Technology | Internal charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 14 - 60 |
| Maximum Flow (cc/min) | 1000 |
| Maximum Flow (gal/min) | 0.264 |
| Minimum Flow (cc/min) | 30 |
| Minimum Flow (gal/min) | 0.008 |
| Standard Paint Flow (cc/min) | 500 |
| Standard Paint Flow (gal/min) | 0.132 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Current Max (µA) | 200 |
| High Voltage (maximum) (kV) | 100 |
| High Voltage Control Module | GNM200/GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT157 / UHT157i |
| Certification | II 2 G 350 mJ < Ex < 2J |
| Mixing head | 1 |
| Product Resistivity (min-max) (MOhm.cm) | >3 |
| Spraying type | Airspray |
| Tips / Nozzle included | 1 |
| Designation | Part number |
|---|---|
| Tool Kit Case 2K | 910029367 |
For pricing and availability on the Sames PPH707 MS-GUN 2K, call FTS at (248) 348-6700 or request a quote online.
