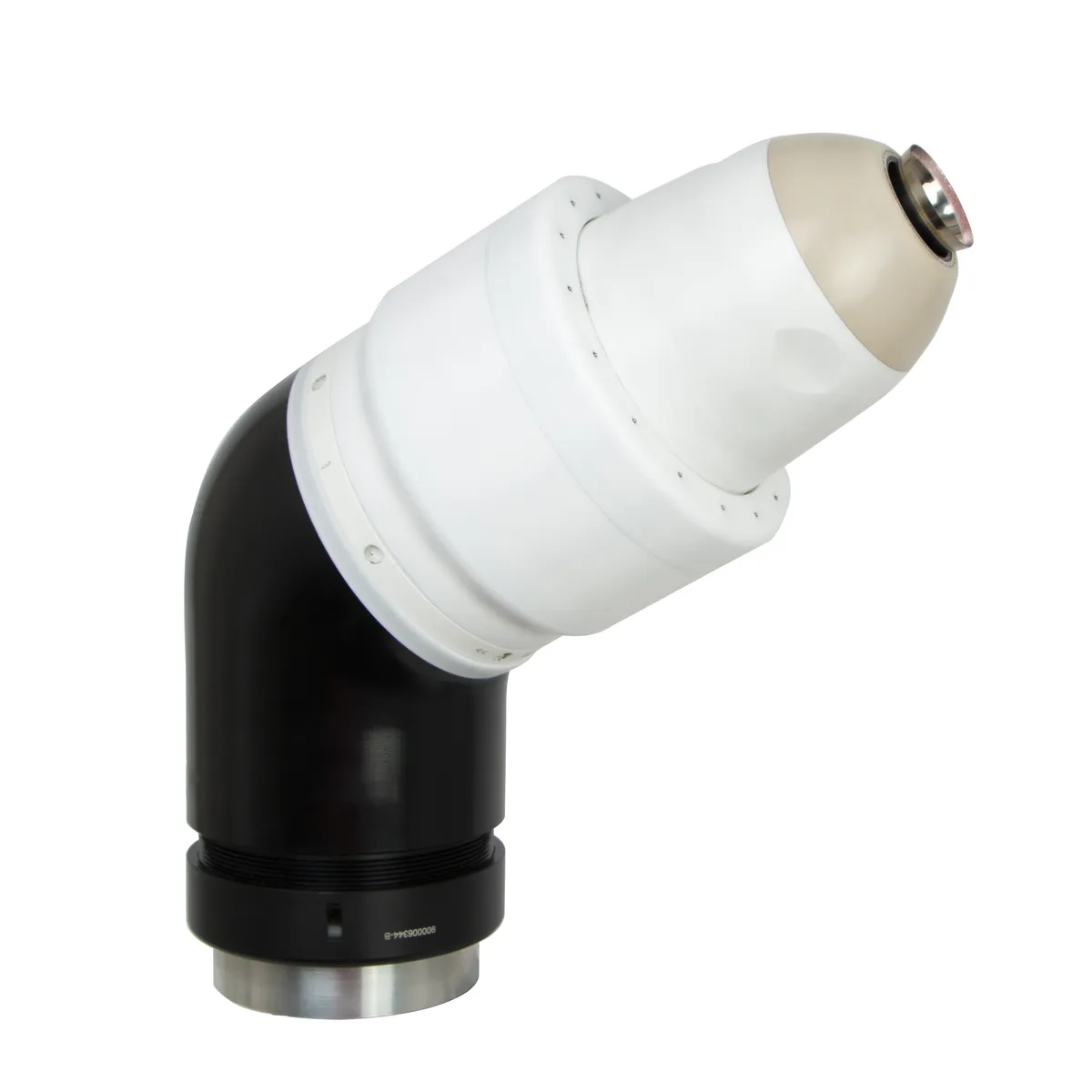

The PPH707 EXTi is designed to access complex shape parts, as interior cut-ins of vehicles or plastic bumpers, and to paint waterborne material continuously.
The PPH707 EXTi is designed to access complex shape parts, as interior cut-ins of vehicles or plastic bumpers, and to paint waterborne material continuously.
Product Status:
Category:
Manufacturer:
The PPH707 EXTi is designed to access complex shape parts, as interior cut-ins of vehicles or plastic bumpers, and to paint waterborne material continuously.
1. Fingerless conception combined with compact design to access complex shape parts, as interior cut-ins of vehicles or plastic bumpers
2. Renowned range of high-speed magnetic bell cups (EC43, EC50 & EX65) for uniform atomization
3. High Velocity Turbine for high rotation speed allowing fine atomization 4 16 electrodes arranged around the charge ring to charge properly the droplets
4. Charge ring in non-conductive PTFE material for 8 hours without manual cleaning
5. Patented air blow ring to protect the charge ring from contamination
♦ No more paint volume limitation for waterborne application in comparison to insulated systems
♦ Continuous waterborne application for outstanding productivity
6. Electrodes edges are equipped with large pins to make the cleaning easier and safer for operators
7. Easy operation and maintenance thanks to many common parts between EXT and EXTi
8. Most robust turbine on the market providing the longest warranty: 7 years/30 000 hours
♦ Eco-friendly solution by the use of water-borne materials which are better for the environment than solvent-borne
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 101 |
| Liquid Electrostatic Technology | External charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 20 - 40 |
| Maximum Flow (cc/min) | 600 |
| Maximum Flow (gal/min) | 0.16 |
| Minimum Flow (cc/min) | 100 |
| Minimum Flow (gal/min) | 0.027 |
| Standard Paint Flow (cc/min) | 300 |
| Standard Paint Flow (gal/min) | 0.08 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Weight (kg) | 7.5 |
| Weight (lbs) | 16.5 |
| Current Max (µA) | 500 |
| High Voltage (maximum) (kV) | 70 |
| High Voltage Control Module | GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT330i |
| Type of electrostatic charge | External charge |
| Certification | II 3 G X T6 0.24 mJ < E < 350 mJ Type B-L EN 50176 |
| Rotation Speed (rpm) | 20 - 70000 |
| Spraying type | Bells |
| Designation | Part number |
|---|---|
| PPH 707 EXTi Atomizer (Large Pins Version) | 910033322 |
| Designation | Part number |
|---|---|
| Removal tool for EX65 magnetic bell cup | 900005087 |
| Removal tool for EC50 magnetic bell cup | 900000803 |
| Removal tool for EC43 magnetic bell cup | 900018693 |
| Installation / Removal tool for rear nut and quick disconnect plate nut | 900020031 |
| Removal tool for high voltage connection and ground cable | 900006354 |
| HV Contact Needle Extraction Tool | 910030395 |
| Installation / Removal tool for Charge Ring | 900020166 |
| Adaptor Air shroud Kit 65 NW | 900020611 |
| Installation / Removal tool for Air shroud Kit 50 NW | 900020167 |
| Installation / Removal tool for Air shroud Kit 43 NW | 900018166 |
| Tool Kit PPH 707 EXTi with Bell Cup EX65 | 910030931 |
| Tool Kit PPH 707 EXTi with Bell Cup EC50 | 910034003 |
| Tool Kit PPH 707 EXTi with Bell Cup EC43 | 910032164 |
For pricing and availability on the Sames PPH707 EXTi Fingerless External Charge Electrostatic Rotary Bell Atomizer, call FTS at (248) 348-6700 or request a quote online.
