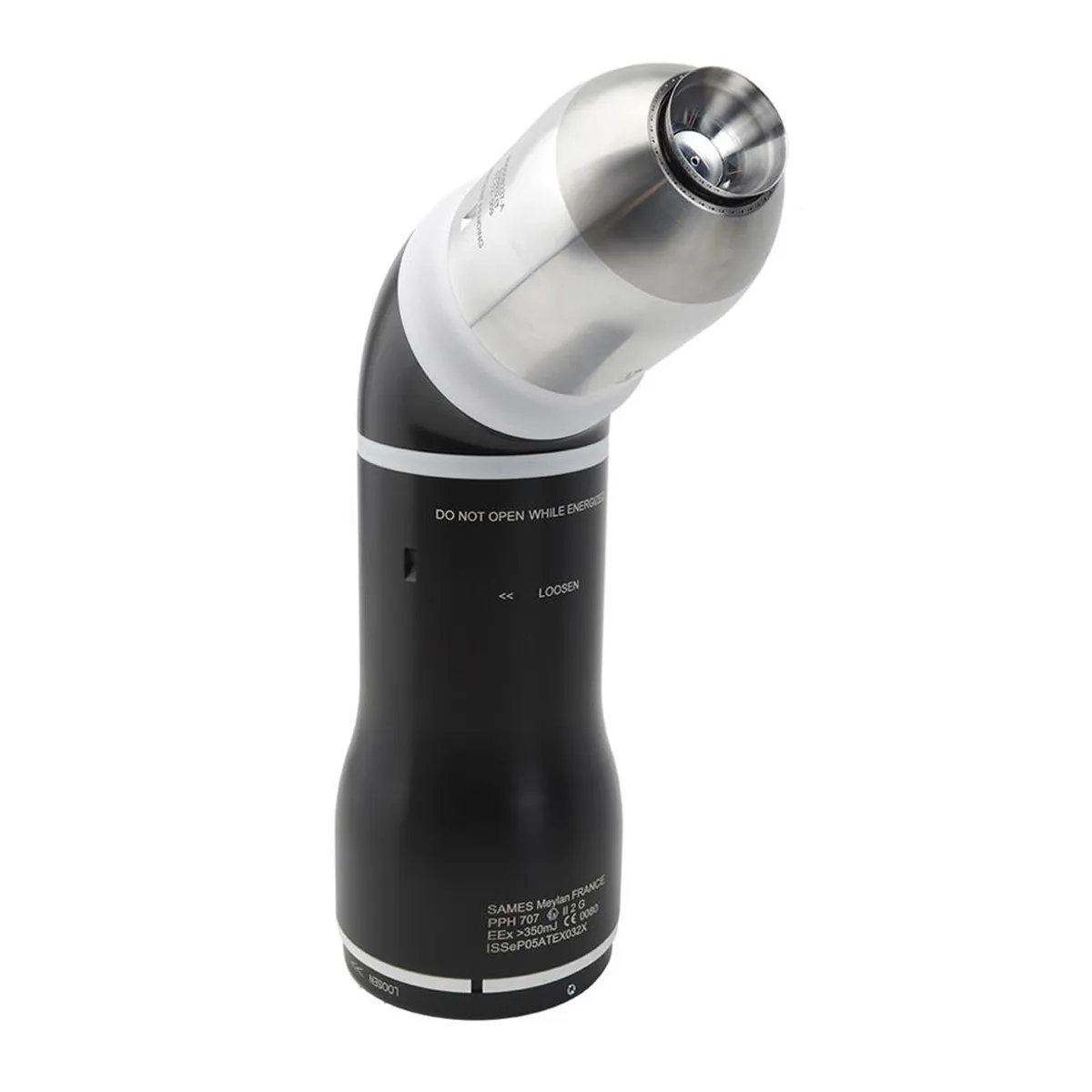

PPH707 ICWB is a sprayer dedicated to an electrostatic application with internal charge water-based paints. It requires an additional insulated supply system, which might be in process arm or on the floor.
PPH707 ICWB is a sprayer dedicated to an electrostatic application with internal charge water-based paints. It requires an additional insulated supply system, which might be in process arm or on the floor.
Product Status:
Category:
Manufacturer:
PPH707 ICWB is a sprayer dedicated to an electrostatic application with internal charge water-based paints. It requires an additional insulated supply system, which might be in process arm or on the floor.
1. High rotating speed whatever the paint flow for the finest atomizing 2. High voltage unit gives the maximum electrostatic effect for highest transfer efficiency possible 3. Hi-TE dual shaping air with patented mixing straight and vortex airs 4. Integrated 2K static mixer into the injector just behind the bell cup
5. The static mixer is located inside the injector, so the mixed volume lost when flushing is reduced. 6. Both Base & Hardener valves are close to the static mixer for a fast-mixing effect 7. Remote bell monitoring device avoid spraying without the bell cup, securing the painting process after a shut down. 8. Easy to upgrade PPH 707 ICWB to 2K (same TCP and body)
9. High reliability of every component (valves, high voltage, air motor, fittings, bell cup) for high production rate paint shop 10. Microvalves with bellow available for abrasive materials 11. Titanium bell cup for longer life, high resistance to abrasion 12. 7-year/30,0000 hr warranty turbine* 13. Easy disassembly of parts in contact with hardener 14. No mixed material in robot arm, no return back in the supply circuit 15. Magnetic bell cup fastening system: The easiest system on the market 16. Easy to maintain the full atomizer thanks to the Quick disconnect *whichever is the sooner
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 101 |
| Liquid Electrostatic Technology | Internal charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 20 - 40 |
| Maximum Flow (cc/min) | 1000 |
| Maximum Flow (gal/min) | 0.264 |
| Minimum Flow (cc/min) | 30 |
| Minimum Flow (gal/min) | 0.008 |
| Standard Paint Flow (cc/min) | 500 |
| Standard Paint Flow (gal/min) | 0.132 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Weight (kg) | 6.06 |
| Weight (lbs) | 13.36 |
| Current Max (µA) | 500 |
| Hardener Resistivity (min-max) (MOhm.cm) | >10 |
| High Voltage (maximum) (kV) | 100 |
| High Voltage Control Module | GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT288 |
| Type of electrostatic charge | Internal charge |
| Certification | II 3 G X T6 W > 2J |
| Mixing head | 1 |
| Rotation Speed (rpm) | 15 - 85000 |
| Spraying type | Bells |
| Designation | Part number |
|---|---|
| High Voltage unit UHT 288 EEx e | 910002864 |
| Tool Kit Case 2K | 910029367 |
| Tool Kit Case | 910029366 |
For pricing and availability on the Sames PPH707 ICWB & PPH707 ICWB 2K Robotic sprayer for water-based material and insulated supply system, call FTS at (248) 348-6700 or request a quote online.
