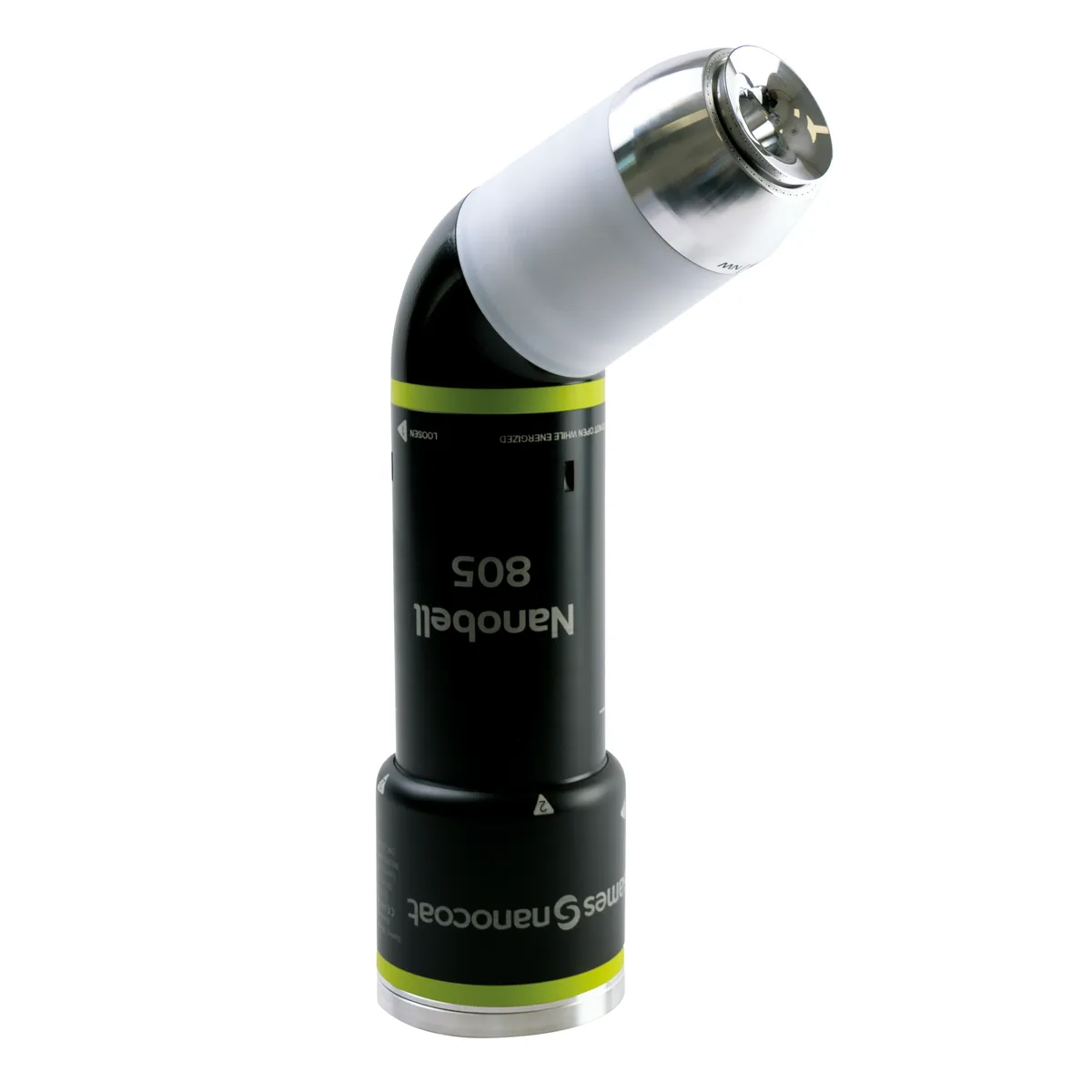

The Nanobell 805 is a world-class electrostatic rotary bell atomizer designed for robotic application of solvent or water-based coatings with internal/direct charge. It perfectly fits hollow wrist large painting robots for high productivity.
The Nanobell 805 is a world-class electrostatic rotary bell atomizer designed for robotic application of solvent or water-based coatings with internal/direct charge. It perfectly fits hollow wrist large painting robots for high productivity.
Product Status:
Category:
Manufacturer:
The Nanobell 805 is a world-class electrostatic rotary bell atomizer designed for robotic application of solvent or water-based coatings with internal/direct charge. It perfectly fits hollow wrist large painting robots for high productivity.
♦ Patented NW (Narrow to Wide) air shrouds for unsurpassed transfer efficiency
♦ Renowned range of high-speed magnetic bell cups for uniform atomization
♦ High Voltage Unit properly scaled and controlled for outstanding wrap-around effect
♦ Brand new air motor T8 for High Rotation Speed allowing fine atomization
♦ The T8 air motor provides constant production with accurate flow and paint applications
♦ Optimized fluid circuits for incomparable application efficiency
♦ Simple spray head for easy operation without specific skills
♦ Lightweight and compact to fit on smaller systems and robots to keep productivity at its best
♦ Patented magnetic fixing of bell cups ensures easy, fast, and safe installations
♦ Bell cups available in Aluminum as Standard with a Titanium option offering extended lifetime
♦ Quick disconnect system allowing fast & easy dismantling
♦ Integrated 3D print technology allowing multi-function in one light and simple part
♦ Newly patented Nano5 valves are highly durable
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 101 |
| Liquid Electrostatic Technology | Internal charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 15 - 65 |
| Maximum Flow (cc/min) | 800 |
| Maximum Flow (gal/min) | 0.21 |
| Minimum Flow (cc/min) | 30 |
| Minimum Flow (gal/min) | 0.008 |
| Standard Paint Flow (cc/min) | 400 |
| Standard Paint Flow (gal/min) | 0.1 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Bearing Air Consumption (Nl/min) | 125 Nl/min |
| Pilot Air Consumption (Nl/min) | 10 Nl/min |
| Shaping Air Consumption (min-max) (Nl/min) | 200-900 |
| Weight (kg) | 5.5 |
| Weight (lbs) | 11 |
| Current Max (µA) | 100 |
| High Voltage (maximum) (kV) | 80 |
| High Voltage Control Module | GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | HVU 8010 |
| Type of electrostatic charge | Internal charge |
| Certification | SB: II 2 G 350 mJ 2J |
| Rotation Speed (rpm) | 65000 |
| Spraying type | Bells |
| Designation | Part number |
|---|---|
| NANOBELL 805 - Robotic Version Internal Charge Water-Borne | 910031761 |
| NANOBELL 805 - Robotic Version Solvent-Borne High Resistivity | 910031760 |
| Nanobell 805 Hollow Wrist - Solvent-Borne Low Resistivity | 910035762 |
| Nanobell 805 - 2K Hollow Wrist - Solvent-Borne High Resistivity | 910033017 |
| Nanobell 805 - 2K Hollow Wrist - Solvent-Borne Low Resistivity | 910037278 |
| Nanobell 805 - 2K Hollow Wrist - Internal Charge Water-Borne | 910033018 |
| Designation | Part number |
|---|---|
| EC35 Bell Cup Tool | 900005784 |
| Removal tool for EC50 magnetic bell cup | 900000803 |
| EX65 Bell Cup Tool | 1204427 |
| Removal tool for injector | 910000700 |
| Installation / Removal tool for body | 900020518 |
| Trapezoidal tool for clipped fittings | 900002665 |
| Installation / Removal tool for Nano 5 Valves | 900019557 |
| Installation / Removal tool for Low Voltage Connection | 900019783 |
| Installation / Removal tool for T8 outer cover | 900017715 |
| Tool Kit Nanobell 801 RBHW / Nanobell 805 with Bell Cup EC35 | 910033145-35 |
| Tool Kit Nanobell 801 RBHW / Nanobell 805 with Bell Cup EC43 | 910033145-43 |
| Tool Kit Nanobell 801 RBHW / Nanobell 805 with Bell Cup EC50 | 910033145-50 |
| Tool Kit Nanobell 801 RBHW / Nanobell 805 with Bell Cup EX65 | 910033145-65 |
| Electrical Kit : GNM300 / BSC300 / Microphone Sensor with 20m high flexible cable / LV Cable from GNM300 to HV Unit (20m) / Ethernet/IP Network Board | 910036214 |
| Electrical Kit : GNM300 / Low Voltage Cable with connector from GNM300 (18m) / Low Voltage Cable with connector to High Voltage Unit (8m) | 910038718 |
| Electrical Kit : GNM300 / BSC300 / Microphone Sensor with 20m high flexible cable / LV Cable from GNM300 to HV Unit (20m) / PROFINET Network Board | 910036103 |
| Electrical Kit: GNM300 + Low Voltage Cables + Junction Box | 910030263 |
| Electrical Kit : GNM300 with Remote Display / Low Voltage Cable with connector from GNM300 (18m) / Low Voltage Cable with connector to High Voltage Unit (8m) | 910038719 |
| Electrical Kit : GNM300 / Low Voltage Cable with connector from GNM300 (18m) / Low Voltage Cable with connector to High Voltage Unit (8m) / PROFINET Network Board | 910038720 |
| Electrical Kit : GNM300 / BSC300 / Exhaust Microphone Sensor with 20m high flexible cable / LV Cable with connector from GNM300 (18m) / LV Cable with connector to HV Unit (8m) | 910038132 |
| Electrical Kit : GNM300 / BSC300 / Microphone Sensor with 20m high flexible cable / LV Cable with bare wires from GNM300 (22m) / Junction Box / LV Cable with bare wires to HV Unit (4.8m) / Ethercat Board | 910035223 |
| Electrical Kit : GNM300 / BSC300 /Microphone Sensor with 20m high flexible cable / LV Cable with bare wires from GNM300 (17m) / Junction Box / LV Cable with bare wires to HV Unit (8m) | 910031938 |
| Electrical Kit : GNM300 and BSC300 with RD / Microphone Sensor with 20m high flexible cable / LV Cable with connector from GNM300 (18m) / LV Cable with connector to HV Unit (8m) | 910038722 |
| Electrical Kit : GNM300 / BSC300 / Microphone Sensor with 20m high flexible cable / LV Cable with connector from GNM300 (18m) / LV Cable with connector to HV Unit (8m) / PN Network Board | 910038721 |
| Electrical Kit : GNM300 and BSC300 with RD / Microphone Sensor with 20m high flexible cable / LV Cable with connector from GNM300 (18m) / LV Cable with connector to HV Unit (8m) / PN Network Board | 910038723 |
For pricing and availability on the Sames Nanobell 805 Robotic Electrostatic Rotary Bell Atomizer, call FTS at (248) 348-6700 or request a quote online.
