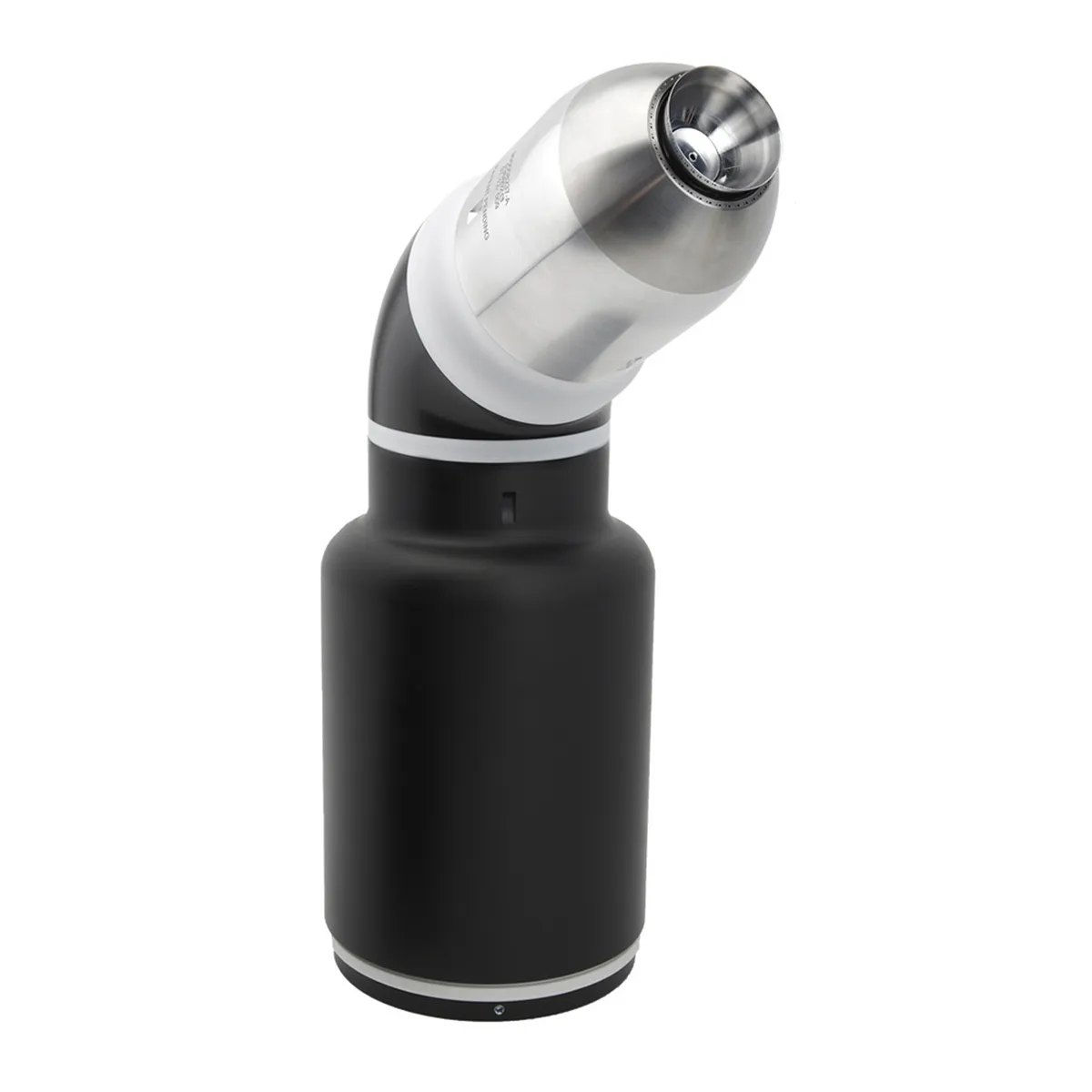

PPH707 MT is a sprayer designed for electrostatic applications with internal charge of liquid paints. This atomizer is the best solution for colored primer or clear coat: low paint loss and fast color change. It is equipped with a color change block inside the atomizer for 1 super high runner and 5 high runner colors.
Product Status:
Category:
Manufacturer:
PPH707 MT is a sprayer designed for electrostatic applications with internal charge of liquid paints. This atomizer is the best solution for colored primer or clear coat: low paint loss and fast color change. It is equipped with a color change block inside the atomizer for 1 super high runner and 5 high runner colors.
1. High rotating speed whatever the paint flow for the finest atomizing 2. High voltage unit gives the maximum electrostatic effect for highest transfer efficiency possible 3. Hi-TE dual shaping air with patented mixing straight and vortex airs 4. Color change block embedded system for highest performances in color change
5. Color change process: 5 seconds / 6 cc paint loss / 40 cc solvent loss with multi gear pump 5. Color change process: 15 seconds / 29 cc paint loss / 300 cc solvent loss with single gear pump 6. Remote bell monitoring device avoid spraying without the bell cup, securing the painting process after a shut down.
9. High reliability of every component (valves, high voltage, air motor, fittings, bell cup) for high production rate paint shop 10. Titanium bell cup for longer life, high resistance to abrasion 11. 7-year/30,0000 hr warranty turbine* 12. Magnetic bell cup fastening system: The easiest system on the market 13. Easy to maintain the full atomizer thanks to the Quick disconnect 14. "Cabriolet cover" for easy access to valve in the atomizer *whichever is the sooner
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 101 |
| Liquid Electrostatic Technology | Internal charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 20 - 40 |
| Maximum Flow (cc/min) | 700 |
| Maximum Flow (gal/min) | 0.185 |
| Minimum Flow (cc/min) | 30 |
| Minimum Flow (gal/min) | 0.008 |
| Standard Paint Flow (cc/min) | 400 |
| Standard Paint Flow (gal/min) | 0.106 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Weight (kg) | 9.2 |
| Weight (lbs) | 20 |
| Current Max (µA) | 200 |
| High Voltage (maximum) (kV) | 100 |
| High Voltage Control Module | GNM200/GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT157 / UHT157i |
| Type of electrostatic charge | Internal charge |
| Certification | II 2 G 350 mJ < Ex < 2J |
| Product Resistivity (min-max) (MOhm.cm) | >3 coil / >10 no coil |
| Rotation Speed (rpm) | 15 - 85000 |
| Spraying type | Bells |
| Designation | Part number |
|---|---|
| PPH 707 MT without coil UHT157i Optical Fiber | _910010373INTFO |
| PPH 707 MT without coil Optical Fiber | _910010373FO |
| PPH 707 MT without coil UHT157i | _910010373INT |
| PPH 707 MT without coil | 910010373 |
| PPH 707 MT with coil Optical Fiber | _910010372FO |
| PPH 707 MT with coil UHT157i Optical Fiber | _910010372INTFO |
| PPH 707 MT with coil UHT157i | _910010372INT |
| PPH 707 MT with coil | 910010372 |
| Designation | Part number |
|---|---|
| Tool Kit Case | 910029366 |
| Electric kit : GNM300 + low voltage cable 17m&8m+ BSC 300 + microphone cable 20m + network Profinet + remote screens | KIT ELEC-707EVO-300_RS-BW-170-XXX-080-300_RS-STD-H200-PN |
For pricing and availability on the Sames PPH707 MT Robotic sprayer for solvent-based materials with multi-trigger technology, call FTS at (248) 348-6700 or request a quote online.
