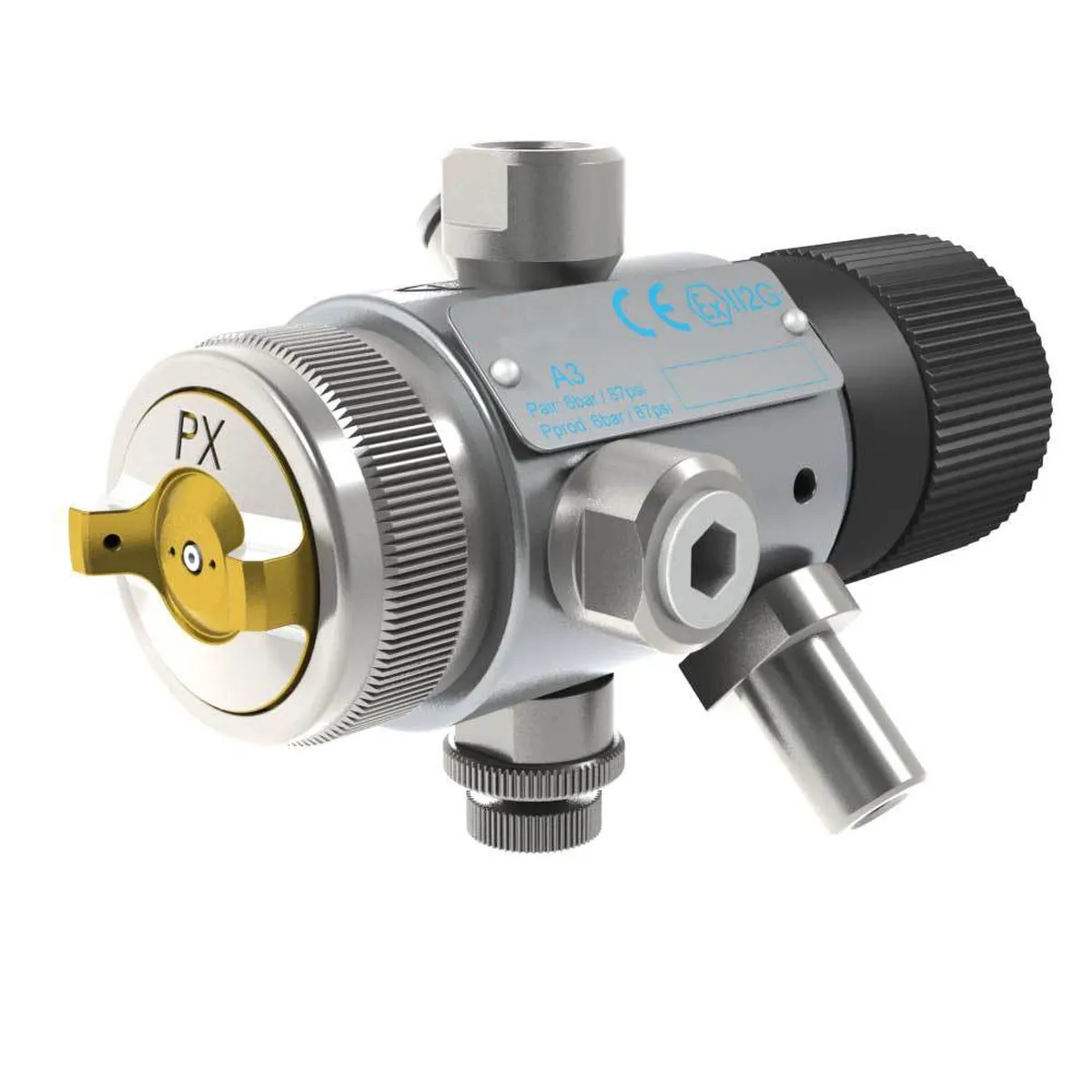

The A3 compact automatic low pressure spray gun is recommended for touch-up & delicate work or when volume is an issue.
The A3 compact automatic low pressure spray gun is recommended for touch-up & delicate work or when volume is an issue.
Product Status:
Category:
Manufacturer:
The A3 compact automatic low pressure spray gun is recommended for touch-up & delicate work or when volume is an issue.
♦ Index knob adjustments of fluid output allow for precise output accuracy
♦ Fan width control for a finish quality & fan pattern optimization
♦ Precise machining of the air cap to give a perfect fan
♦ A reduced overspray allows a fast ROI (Return on Investment) for products savings
♦ GL specific projectors for lines
♦ A reduced overspray allows a decrease in spray booth maintenance
♦ Brass nickel plated air cap provides high resistance to water-based materials
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (bar) | 3 to 6 |
| Recommended Air Pressure (psi) | 43 to 87 |
| Trigger Air Pressure (bar) | 3 |
| Trigger Air Pressure (psi) | 43.5 |
| Atomizing Air Inlet | F 1/8" NPS |
| Pilot Air Inlet | F 1/8" NPS |
| Maximum Flow (cc/min) | 80 |
| Maximum Flow (gal/min) | 0.021 |
| Minimum Flow (cc/min) | 150 |
| Minimum Flow (gal/min) | 0.039 |
| Maximum Material Pressure (bar) | 6 |
| Maximum Material Pressure (psi) | 87 |
| Air Consumption (cfm) | 5.9 |
| Air Consumption (m3/h) | 10 |
| Weight (lbs) | 0.7 |
| Maximum Temperature (°C) | 50 |
| Maximum Temperature (°F) | 122 |
| Material Inlet Port | F 1/8 NPS + F 1/8 NPS + plug 1/8 NPS |
| Body Material | Aluminium |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 122 |
| Wetted Parts | Aluminum, Stainless steel 303, PTFE |
| Certification | II2G Ex h IIB T6 Gb X |
| Spraying type | Airspray |
| Designation | Part number | Max flowrate (cc/mn) | Max flowrate (gal/mn) | Nozzle size (in) | Nozzle size (mm) | Type |
|---|---|---|---|---|---|---|
| A3 gun HPA 8PX | 135713014 | 200 | 0.052 | 0.31 | 0.8 | Flat spray pattern |
| A3 gun HPA 10PX | 135713011 | 300 | 0.79 | 0.39 | 1 | Flat spray pattern |
| A3 gun HPA 12PX | 135713012 | 450 | 0.118 | 0.47 | 1.2 | Flat spray pattern |
| A3 gun HPA 6GL | 135713017 | 180 | 0.047 | 0.23 | 0.6 | Round spray pattern |
| A3 gun HPA 10GL | 135713015 | 300 | 0.079 | 0.39 | 1 | Round spray pattern |
| Designation | Part number | Max flowrate (cc/mn) | Max flowrate (gal/mn) | Max Fluid viscosity (CA 4) | Nozzle size (in) | Nozzle size (mm) | Type |
|---|---|---|---|---|---|---|---|
| PROJECTOR 08PX | 031713014 | 200 | 0.53 | 20 sec | 0.31 | 0.8 | Flat spray pattern |
| PROJECTOR 10PX | 031713011 | 300 | 0.079 | 20 sec | 0.39 | 1 | Flat spray pattern |
| PROJECTOR 12PX | 031713012 | 450 | 0.118 | 30 sec | 0.47 | 1.2 | Flat spray pattern |
| PROJECTOR 06GL | 031713017 | 180 | 0.048 | 20 sec | 0.023 | 0.6 | |
| PROJECTOR 10GL | 031713015 | 300 | 0.079 | 20 sec | 0.039 | 1 | Round spray pattern |
| Aircap | 132631100 | ||||||
| AIRCAP | 132640100 | ||||||
| NOZZLE 06L | 134640300 | 20 sec | 0.23 | 0.6 | |||
| NOZZLE 08 | 134630400 | 20 sec | 0.31 | 0.8 | |||
| NOZZLE 10 | 134630100 | 20 sec | 0.39 | 1 | |||
| NOZZLE 10L | 134640100 | 20sec | 0.39 | 1 | |||
| NOZZLE 12 | 134630200 | 30 sec | 0.47 | 1.2 | |||
| NEEDLE 06 | 033713500 | 0.23 | 0.6 | ||||
| NEEDLE 08 | 033713400 | 0.31 | 0.8 | ||||
| NEEDLE 10 | 033713000 | 0.39 | 1 | ||||
| NEEDLE 10GL | 033713300 | 0.39 | 1 | ||||
| NEDDLE 12 | 033713100 | 0.47 | 1.2 | ||||
| ATTACHMENT FOR A3 | 049351200 | ||||||
| INDEXED NEEDLE ADJUST KIT FOR A3 GUN | 129713050 |
For pricing and availability on the Sames A3 HPA Automatic Airspray Spray Gun, call FTS at (248) 348-6700 or request a quote online.
