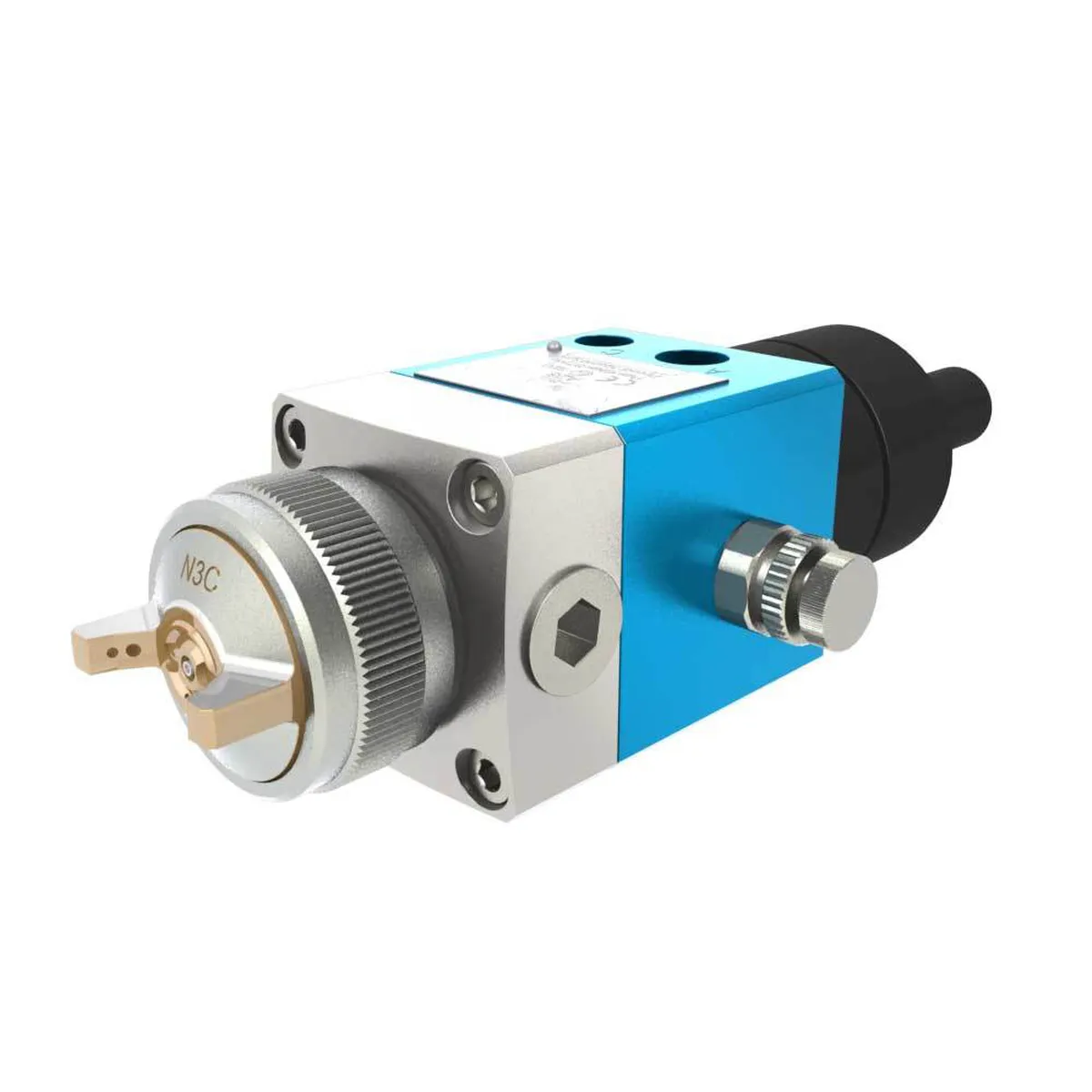

The automatic A28 low pressure spray gun benefits from the patented Superlife technology, recommended for enamels, high solids & solvent-free materials and strongly improving the wet parts lifetime.
The automatic A28 low pressure spray gun benefits from the patented Superlife technology, recommended for enamels, high solids & solvent-free materials and strongly improving the wet parts lifetime.
Product Status:
Category:
Manufacturer:
The automatic A28 low pressure spray gun benefits from the patented Superlife technology, recommended for enamels, high solids & solvent-free materials and strongly improving the wet parts lifetime.
♦ Index knob adjustments of fluid output allow for precise output accuracy
♦ Fan width control delivers a high-quality finish & fan pattern optimization
♦ Precise machining of air cap delivers rigid fan control
♦ Reduced overspray delivers fast ROI (Return on Investment) & material savings
♦ Separate fan width & atomization air adjustments
♦ Optimized inlet & outlet fluid ports for high viscosity materials
♦ Patented SuperLife diaphragm (without packings)
♦ Hardened stainless steel nozzle with removable polyurethane end needle
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (bar) | 8 |
| Recommended Air Pressure (psi) | 87 |
| Trigger Air Pressure (bar) | 5.5 |
| Trigger Air Pressure (psi) | 79.7 |
| Atomizing Air Inlet | F 1/4" NPS |
| Pilot Air Inlet | F 1/8" NPS |
| Maximum Flow (cc/min) | 1000 |
| Maximum Flow (gal/min) | 0.26 |
| Minimum Flow (cc/min) | 100 |
| Minimum Flow (gal/min) | 0.026 |
| Maximum Material Pressure (bar) | 3 |
| Maximum Material Pressure (psi) | 43.5 |
| Air Consumption (cfm) | 14.1 |
| Air Consumption (m3/h) | 24 |
| Maximum Temperature (°C) | 50 |
| Maximum Temperature (°F) | 122 |
| Material Inlet Port | F 3/8 NPS and F 3/8 NPS with plug 3/8 NPT |
| Body Material | Aluminium |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 122 |
| Wetted Parts | Stainless steel 303, PTFE, PEHD, Polyurethane |
| Certification | II2G Ex h IIB T6 Gb X |
| Spraying type | Airspray |
| Designation | Part number | Max flowrate (cc/mn) | Nozzle size (mm) |
|---|---|---|---|
| A28 AIRSPRAY GUN W/O PROJECTOR | 129417000 | ||
| A28 AIRSPRAY GUN 207 Z23A | 135417001 | 100 | 0.7 |
| A28 AIRSPRAY GUN 209 Z23A | 135417002 | 200 | 0.9 |
| A28 AIRSPRAY GUN 212 Z23A | 135417003 | 400 | 1.2 |
| A28 AIRSPRAY GUN 212 N23C | 135417004 | 400 | 1.2 |
| A28 AIRSPRAY GUN 215 N23C | 135417005 | 500 | 1.5 |
| A28 AIRSPRAY GUN 218 N23C | 135417006 | 600 | 1.8 |
| A28 AIRSPRAY GUN 222 R23 | 135417007 | 700 | 2.2 |
| A28 AIRSPRAY GUN 222 R24 | 135417009 | 700 | 2.2 |
| A28 AIRSPRAY GUN 227 R23 | 135417008 | 800 | 2.7 |
| A28 AIRSPRAY GUN 227 R24 | 135417010 | 800 | 2.7 |
| A28 AIRSPRAY GUN 227 R29 | 135417012 | 800 | 2.7 |
| A28 AIRSPRAY GUN 233 S23 | 135417013 | 900 | 3.3 |
| A28 AIRSPRAY GUN 240 S23 | 135417014 | 1000 | 4 |
| A28 AIRSPRAY GUN 240 S29 | 135417016 | 1000 | 4 |
| Designation | Part number | Air Consumption (m3/h) | Details | Max Fluid viscosity (CA 4) | Recommended tips | Max flowrate (cc/mn) |
|---|---|---|---|---|---|---|
| Aircap Z3A | 132020550 | 20 | flat spray 20-30 cm | < 20 sec | 0.7 to 1.2 mm | |
| Aircap N3C (BRASS) | 132021750 | 24.5 | flat spray 20-35 cm | 20 - 40 s | 1.2 to 1.8 mm | |
| Aircap R3 | 132021300 | 19 | flat spray 30-45 cm | 40 sec to 5000 CPS | 2.2 to 2.7 mm | |
| Aircap R4 (high density) | 132021800 | 21 | flat spray 30-45 cm | 40 sec to 5000 CPS | 2.2 to 2.7 mm | |
| Aircap R9 | 132021400 | 22.5 | Round spray 30-45 cm | 40 sec to 5000 CPS | 3.3 to 4.0 mm | |
| Aircap S3 | 132021900 | 22.5 | Flat spray 35-50 cm | > 5000 CPS | 2.2 to 2.7 | |
| Aircap S9 | 132021500 | 22 | Round spray 35-50 cm | > 5000 CPS | 4.0 mm | |
| Nozzle 207T | 134025050 | 100 | ||||
| Nozzle 209T | 134025100 | 200 | ||||
| Nozzle | 134025200 | 400 | ||||
| Nozzle 212NT | 134025250 | heavy-duty nozzle for liquid enamels | 400 | |||
| Nozzle 215T | 134025300 | 500 | ||||
| Nozzle 218T | 134025400 | 600 | ||||
| Nozzle | 134025600 | 700 | ||||
| Nozzle | 134025700 | 800 | ||||
| Nozzle | 134025800 | 900 | ||||
| Nozzle | 134025900 | 1000 | ||||
| Needle-end for nozzle type 7 to 27 (pack of 10) | 129417005 | 0.7 to 2.7 mm | ||||
| Needle-end PEHD for nozzle type 15 and 18 (Pack of 5) | 129417020 | 1.5 to 1.8 mm | ||||
| Needle end for nozzle type 33 and 40 (pack of 10) | 129417014 | 3.3 to 4.0 mm | ||||
| Air connector for adjusting fan width - F 1/4 BSPP | 029417019 | |||||
| A28 AIRSPRAY GUN SEAL KIT | 129417900 | |||||
| A28 AIRSPRAY GUN FULL MAINTENANCE KIT | 129417901 |
For pricing and availability on the Sames A28 HPA Automatic Airspray Spray Gun, call FTS at (248) 348-6700 or request a quote online.
