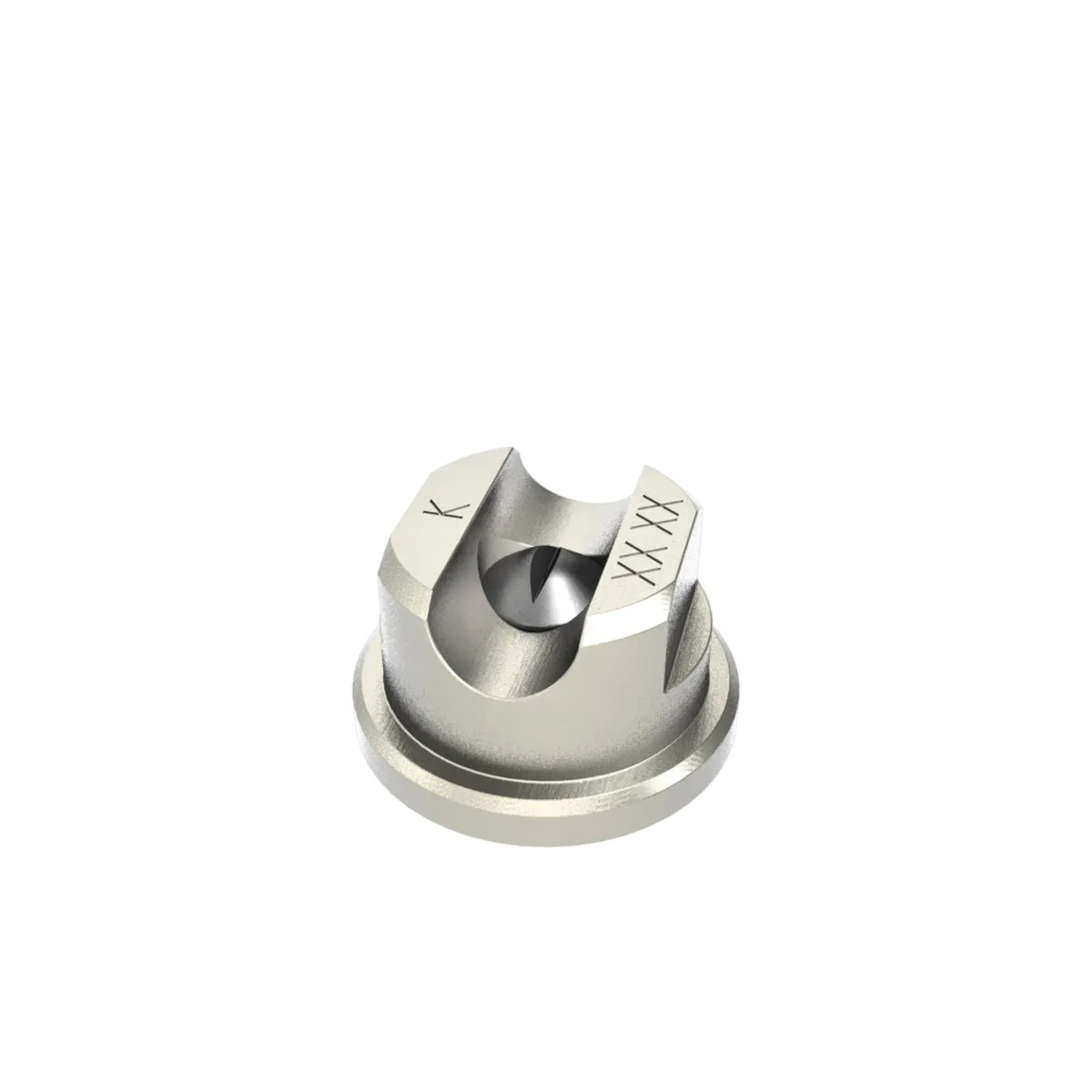

Airless tips can be used on automatic and manual guns. Recommended for Sflow® gun and ASI gun automatic gun ranges.
Airless tips can be used on automatic and manual guns. Recommended for Sflow® gun and ASI gun automatic gun ranges.
Product Status:
Category:
Manufacturer:
Airless tips can be used on automatic and manual guns. Recommended for Sflow® gun and ASI gun automatic gun ranges.
♦ Transfer efficiency of 75%
♦ Optimum quality of spraying starting from 110 bar (1600 psi)
♦ All tips have the same consistent pattern and flow to guarantee a constant productivity
♦ The carbide use is the hardest in the world to guarantee the longest lifetime possible.
| Designation | Value |
|---|---|
| Spraying type | Airless |
| Designation | Part number | Caliber | Spray type | Fan angle (°) | Maximum Fan width at 25cm (cm) | Maximum Fan width at 9.8in (in) | Orifice diameter (in) | Orifice diameter (mm) | Water flow rate at 120 bars (cc/min) | Water flow rate at 1740 psi (oz/min) | Water flow rate at 200 bars (cc/min) | Water flow rate at 2900 psi (oz/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TIP 040/13 | 000004013 | 40 | Flat | |||||||||
| TIP 030/19 | 000003019 | 30 | Flat | |||||||||
| TIP 018/15 | 000001815 | 18 | Flat | |||||||||
| TIP 030/11 | 000003011 | 30 | Flat | |||||||||
| TIP 020/15 | 000002015 | 20 | Flat | |||||||||
| TIP 009/05 | 000000905 | 9 | Flat | |||||||||
| TIP 040/15 | 000004015 | 40 | Flat | |||||||||
| TIP 018/19 | 000001819 | 18 | Flat | |||||||||
| TIP 014/13 | 000001413 | 14 | Flat | |||||||||
| TIP 045/07 | 000004507 | 45 | Flat | 40 | 18 | 7.1 | 0.029 | 0.76 | 3120 | 105.4 | 4080 | 137.9 |
| TIP 014/07 | 000001407 | 14 | Flat | |||||||||
| TIP 009/07 | 000000907 | 9 | Flat | |||||||||
| TIP 045/15 | 000004515 | 45 | Flat | |||||||||
| TIP 018/17 | 000001817 | 18 | Flat | |||||||||
| TIP 025/13 | 000002513 | 25 | Flat | |||||||||
| TIP 030/13 | 000003013 | 30 | Flat | |||||||||
| TIP 012/09 | 000001209 | 12 | Flat | |||||||||
| TIP 009/11 | 000000911 | 9 | Flat | |||||||||
| TIP 09/17 | 000000917 | 9 | Flat | |||||||||
| TIP 014/17 | 000001417 | 14 | Flat | |||||||||
| TIP 020/05 | 000002005 | 20 | Flat | |||||||||
| TIP 014/03 | 000001403 | 14 | Flat | |||||||||
| TIP 014/11 | 000001411 | 14 | Flat | |||||||||
| TIP 012/15 | 000001215 | 12 | Flat | |||||||||
| TIP 25/19 | 000002519 | 5 | Flat | |||||||||
| TIP 030/15 | 000003015 | 30 | Flat | |||||||||
| TIP 020/07 | 000002007 | 20 | Flat | |||||||||
| TIP 030/07 | 000003007 | 30 | Flat | |||||||||
| TIP 014/05 | 000001405 | 14 | Flat | |||||||||
| TIP 040/19 | 000004019 | 40 | Flat | |||||||||
| TIP 012/13 | 000001213 | 12 | Flat | |||||||||
| TIP 014/19 | 000001419 | 14 | Flat | |||||||||
| TIP 018/11 | 000001811 | 18 | Flat | |||||||||
| TIP 045/19 | 000004519 | 45 | Flat | |||||||||
| TIP 030/17 | 000003017 | 30 | Flat | |||||||||
| TIP 068/17 | 000006817 | 68 | Flat | |||||||||
| TIP 25/17 | 000002517 | 5 | Flat | |||||||||
| TIP 009/13 | 000000913 | 9 | Flat | |||||||||
| TIP 020/09 | 000002009 | 20 | Flat | |||||||||
| TIP 018/09 | 000001809 | 18 | Flat | |||||||||
| TIP 012/11 | 000001211 | 12 | Flat | |||||||||
| TIP 045/11 | 000004511 | 45 | Flat | 60 | 28 | 11 | 0.029 | 0.76 | 3120 | 105.4 | 4080 | 137.9 |
| TIP 018/13 | 000001813 | 18 | Flat | |||||||||
| TIP 25/11 | 000002511 | 5 | Flat | |||||||||
| TIP 020/17 | 000002017 | 20 | Flat | |||||||||
| TIP 045/13 | 000004513 | 45 | Flat | 67 | 33 | 13 | 0.029 | 0.76 | 3120 | 105.4 | 4080 | 137.9 |
| TIP 009/03 | 000000903 | 9 | Flat | |||||||||
| TIP 020/19 | 000002019 | 20 | Flat | |||||||||
| TIP 012/17 | 000001217 | 12 | Flat | |||||||||
| TIP 014/15 | 000001415 | 14 | Flat | |||||||||
| TIP 045/17 | 000004517 | 45 | Flat | |||||||||
| TIP 020/13 | 000002013 | 20 | Flat | |||||||||
| TIP 006/15 | 000000615 | 6 | Flat | |||||||||
| TIP 014/09 | 000001409 | 14 | Flat | |||||||||
| TIP 25/15 | 000002515 | 5 | Flat | |||||||||
| TIP 006/13 | 000000613 | 6 | Flat | |||||||||
| TIP 045/21 | 000004521 | 45 | Flat | |||||||||
| TIP 012/07 | 000001207 | 12 | Flat | |||||||||
| TIP 040/17 | 000004017 | 40 | Flat | |||||||||
| TIP 006/11 | 000000611 | 6 | Flat | |||||||||
| TIP 009/09 | 000000909 | 9 | Flat | |||||||||
| TIP 020/11 | 000002011 | 20 | Flat | |||||||||
| TIP 009/15 | 000000915 | 9 | Flat | |||||||||
| TIP 040/11 | 000004011 | 40 | Flat | |||||||||
| TIP 030/09 | 000003009 | 30 | Flat | |||||||||
| TIP 003/07 | 000000307 | 3 | Flat | |||||||||
| TIP 006/03 | 000000603 | 6 | Flat | |||||||||
| TIP 004/07 | 000000407 | 4 | Flat | |||||||||
| TIP 003/05 | 000000305 | 3 | Flat | |||||||||
| TIP 004/09 | 000000409 | 4 | Flat | |||||||||
| TIP 004/05 | 000000405 | 4 | Flat | |||||||||
| TIP 006/07 | 000000607 | 6 | Flat | |||||||||
| TIP 004/03 | 000000413 | 4 | Flat | |||||||||
| TIP 04/03 | 000000403 | 4 | Flat | |||||||||
| TIP 003/03 | 000000303 | 3 | Flat | |||||||||
| TIP 004/11 | 000000411 | 4 | Flat | |||||||||
| TIP 006/09 | 000000609 | 6 | Flat | |||||||||
| TIP 006/05 | 000000605 | 6 | Flat |
For pricing and availability on the Sames Airless Standard Spray Tip, call FTS at (248) 348-6700 or request a quote online.
