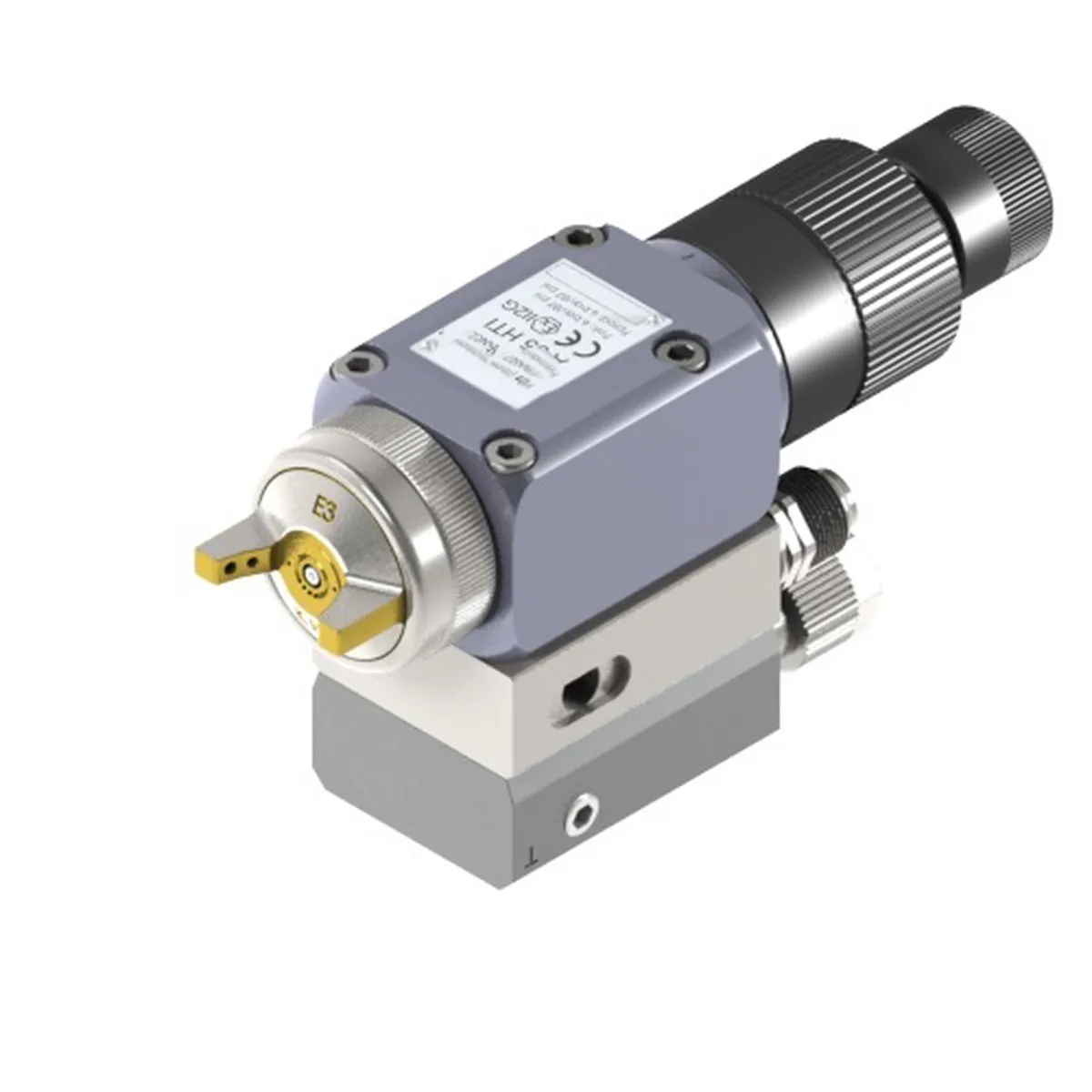

This automatic low pressure spray gun presents a modular design to fine-tune the fan width, while its HTI technology is the perfect mix between HPA high production rate and HVLP outstanding finish quality.
This automatic low pressure spray gun presents a modular design to fine-tune the fan width, while its HTI technology is the perfect mix between HPA high production rate and HVLP outstanding finish quality.
Product Status:
Category:
Manufacturer:
This automatic low pressure spray gun presents a modular design to fine-tune the fan width, while its HTI technology is the perfect mix between HPA high production rate and HVLP outstanding finish quality.
♦ Index knob adjustments of fluid output allow for precise output accuracy
♦ Fan width control delivers a high-quality finish & fan pattern optimization
♦ Precise machining of air cap delivers rigid fan control
♦ Reduced overspray delivers fast ROI (Return on Investment) & material savings
♦ 0-90° indexed air cap enables easy & fast re-adjustment of fan pattern
♦ Easy assembly with only 4 screws for reduced downtime
♦ Side output for easy mounting on automatic systems
♦ Rear output for easy set-up in robotic applications
♦ Circulation only in base in order to reduce pressure loss in the circulating system
♦ Guaranteed needle sealing by self-adjusting cartridge
♦ Hard treated needle & wetted parts in stainless steel or treated stainless steel for increased lifetime
♦ Reduced overspray decreases spray booth maintenance
♦ Brass nickel plated air cap ensures high resistance to water-based materials
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (bar) | 2 to 2.5 |
| Recommended Air Pressure (psi) | 29 to 36 |
| Trigger Air Pressure (bar) | 3 |
| Trigger Air Pressure (psi) | 43.5 |
| Optimal Transfer Efficiency (%) | 72 |
| Atomizing Air Inlet | F 1/4" NPS |
| Pilot Air Inlet | F 1/8" NPS |
| Maximum Material Pressure (bar) | 6 |
| Maximum Material Pressure (psi) | 87 |
| Air Consumption (cfm) | 14.7 |
| Air Consumption (m3/h) | 25 |
| Weight (lbs) | 1.1 |
| Maximum Temperature (°C) | 50 |
| Maximum Temperature (°F) | 122 |
| Material Inlet Port | 2 x F 1/4 NPS, 6-8 hose with fitting supplied |
| Body Material | Aluminium |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 122 |
| Wetted Parts | PTFE, Stainless steel 303 |
| Certification | II2G Ex h IIB T6 Gb X |
| Spraying type | Airspray |
| Designation | Part number |
|---|---|
| A35 HTI GUN W/O PROJECTOR W/O BASE PLATE | 129300000 |
| A35 HTI GUN 06 E3 KHVLP SIDE OUTLET BASE | 135300112 |
| A35 HTI GUN 07E3 KHVLP SIDE OUTLET BASE | 135300101 |
| A35 HTI GUN 09E3 KHVLP SIDE OUTLET BASE | 135300102 |
| A35 HTI GUN 12E3 KHVLP SIDE OUTLET BASE | 135300103 |
| A35 HTI GUN 15E3 KHVLP SIDE OUTLET BASE | 135300104 |
| A35 HTI GUN 18E3 KHVLP SIDE OUTLET BASE | 135300105 |
| A35 HTI GUN 06E3 KHVLP REAR OUTLET BASE | 135300212 |
| A35 HTI GUN 07E3 KHVLP REAR OUTLET BASE | 135300201 |
| A35 HTI GUN 09E3 KHVLP REAR OUTLET BASE | 135300202 |
| A35 HTI GUN 12E3 KHVLP REAR OUTLET BASE | 135300203 |
| A35 HTI GUN 15E3 KHVLP REAR OUTLET BASE | 135300204 |
| A35 HTI GUN 18 E3 KHVLP REAR OUTLET BASE | 135300205 |
| A35 HTI GUN 06EP3 SIDE OUTLET BASE | 135300111 |
| A35 HTI GUN 07EP3 SIDE OUTLET BASE | 135300106 |
| A35 HTI GUN 09EP3 SIDE OUTLET BASE | 135300107 |
| A35 HTI GUN 12EP3 SIDE OUTLET BASE | 135300108 |
| A35 HTI GUN 15EP3 SIDE OUTLET BASE | 135300109 |
| A35 hti | 135300110 |
| A35 HTI GUN 06EP3 REAR OUTLET BASE | 135300211 |
| A35 HTI GUN 07EP3 REAR OUTLET BASE | 135300206 |
| A35 HTI GUN 09EP3 REAR OUTLET BASE | 135300207 |
| A35 HTI GUN 12EP3 REAR OUTLET BASE | 135300208 |
| A35 HTI GUN 15EP3 REAR OUTLET BASE | 135300209 |
| A35 HTI GUN 18EP3 REAR OUTLET BASE | 135300210 |
| A35 HTI GUN 06 E3 KHVLP WITHOUT BASE | 135300012 |
| A35 HTI GUN 07 E3 KHVLP WITHOUT BASE | 135300001 |
| A35 HTI GUN 09 E3 KHVLP WITHOUT BASE | 135300002 |
| A35 HTI GUN 12 E3 KHVLP WITHOUT BASE | 135300003 |
| A35 HTI GUN 15 E3 KHVLP WITHOUT BASE | 135300004 |
| A35 HTI GUN 18 E3 KHVLP WITHOUT BASE | 135300005 |
| A35 HTI GUN 06 EP3 WITHOUT BASE | 135300011 |
| A35 HTI GUN 07 EP3 WITHOUT BASE | 135300006 |
| A35 HTI GUN 09 EP3 WITHOUT BASE | 135300007 |
| A35 hti | 135300008 |
| A35 HTI GUN 15 EP3 WITHOUT BASE | 135300009 |
| A35 HTI GUN 18 EP3 WITHOUT BASE | 135300010 |
| A35 BASE SIDE OUTPUTS CIRCULATION IN BASE | 129300050 |
| A35 BASE REAR OUTPUTS CIRCULATION IN BASE | 129300060 |
| A35 CEFLA BASE SIDE OUTPUTS CIRCULATION IN BASE | 129300070 |
| Designation | Part number | Nozzle size (mm) |
|---|---|---|
| PROJECTOR 06E3 KHVLP | 031300012 | |
| PROJECTOR 07E3 KHVLP | 031300001 | |
| PROJECTOR 09E3 KHVLP | 031300002 | |
| Projector | 031300003 | |
| Projector | 031300004 | |
| Projector | 031300005 | |
| PROJECTOR 06 EP3 | 031300011 | |
| PROJECTOR 07 EP3 | 031300006 | |
| PROJECTOR 09 EP3 | 031300007 | |
| PROJECTOR 12 EP3 | 031300008 | |
| PROJECTOR 15 EP3 | 031300009 | |
| PROJECTOR 18 EP3 | 031300010 | |
| AIRCAP E3 KHVLP | 132300100 | |
| AIRCAP EP3 | 132300300 | |
| NOZZLE 06 | 134130050 | 0.6 |
| NOZZLE 07 | 134130100 | 0.7 |
| NOZZLE 09 | 134130200 | 0.9 |
| NOZZLE 12 | 134130300 | 1.2 |
| NOZZLE 15 | 134130600 | 1.5 |
| Nozzle | 134130700 | 1.8 |
| NEEDLE 06-07-09-12 | 033300100 | |
| NEEDLE 15-18 | 033300200 | |
| ADJUSTABLE FAN WIDTH MANUAL NEEDLE AUTO.GUN (M14x100) | 129253100 | |
| ADJUSTABLE FAN WIDTH CONNECTOR - M14x100 - (F) 1/4 BSPP | 029253002 | |
| COMPLETE ATTACHMENT FOR AUTO. GUN ROD D16 + FIXING NUT | 049351000 | |
| Mounting support DIA.12mm | 049351700 | |
| MOUNTING SUPPORT SWIVELING | 049351705 | |
| A35 AIRSPRAY GUN SEAL KIT | 129300901 | |
| ROBOTIC BASE 60° - T - WITH FILTER | 129691170 |
For pricing and availability on the Sames A35 HTI Automatic Airspray Spray Gun, call FTS at (248) 348-6700 or request a quote online.
