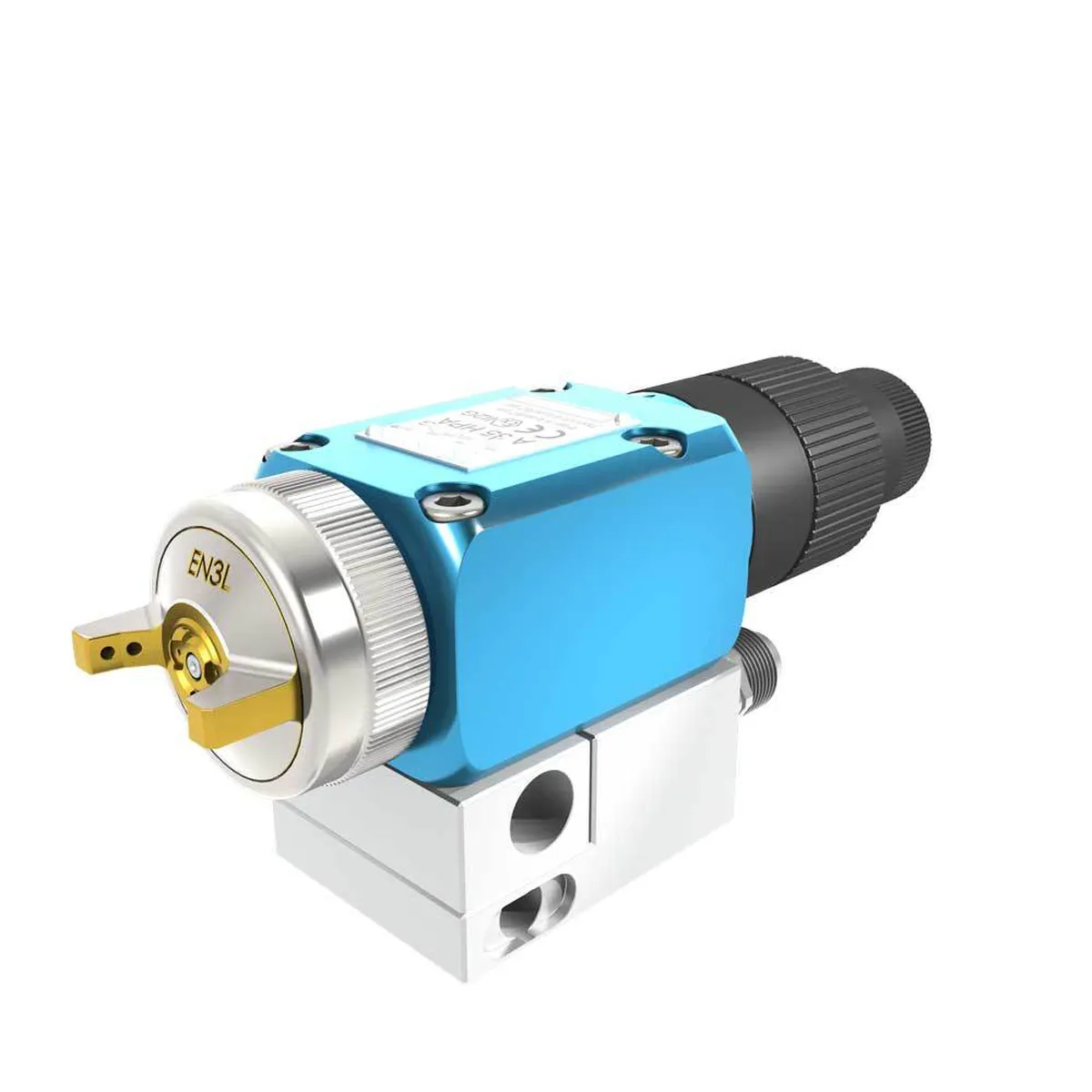

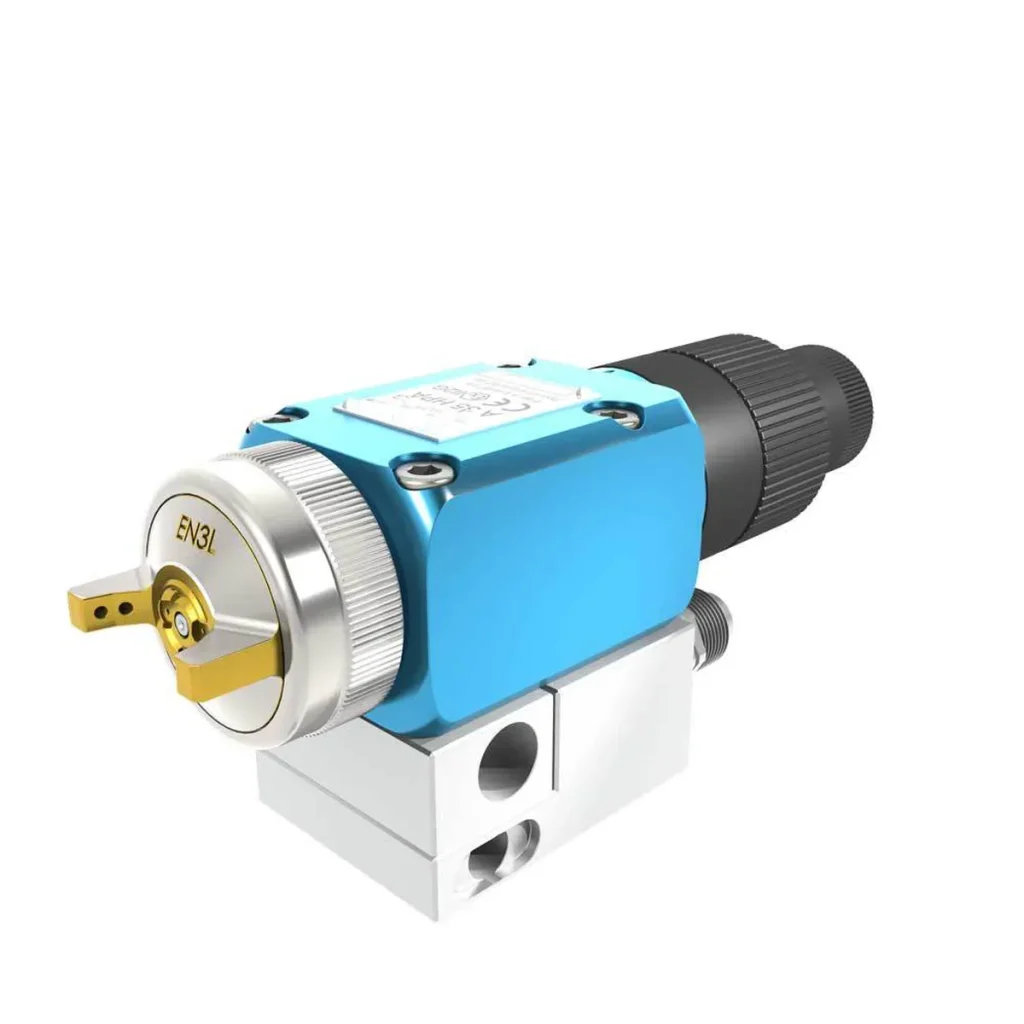

This automatic low pressure spray gun with a modular design answers to high volume production with a precise fan width control.
This automatic low pressure spray gun with a modular design answers to high volume production with a precise fan width control.
Product Status:
Category:
Manufacturer:
This automatic low pressure spray gun with a modular design answers to high volume production with a precise fan width control.
♦ Index knob adjustments of fluid output allow for precise output accuracy
♦ Fan width control delivers a high-quality finish & fan pattern optimization
♦ Precise machining of air cap delivers rigid fan control
♦ Reduced overspray delivers fast ROI (Return on Investment) & material savings
♦ A 0-90° indexed air cap enables easy & fast re-adjustment of fan pattern
♦ Easy assembly reduces downtime
♦ Side output for easy mounting on automatic systems
♦ Rear output for easy set-up in robotic applications
♦ Circulation only in base in order to reduce pressure loss in the circulating system
♦ Guaranteed needle sealing by self-adjusting cartridge
♦ Hard treated needle & wetted parts in stainless steel or treated stainless steel for increased lifetime
♦ Reduced overspray decreases spray booth maintenance
♦ Brass nickel plated air cap ensures high resistance to water-based materials
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (bar) | 3 to 5 |
| Recommended Air Pressure (psi) | 43 to 72 |
| Trigger Air Pressure (bar) | 3 |
| Trigger Air Pressure (psi) | 44 |
| Atomizing Air Inlet | F 1/4" NPS |
| Pilot Air Inlet | F 1/8" NPS |
| Maximum Material Pressure (bar) | 6 |
| Maximum Material Pressure (psi) | 87 |
| Air Consumption (cfm) | 19.4 |
| Air Consumption (m3/h) | 33 |
| Weight (lbs) | 1.1 |
| Maximum Temperature (°C) | 50 |
| Maximum Temperature (°F) | 122 |
| Material Inlet Port | 2 x F 1/4 NPS, 6-8 hose with fitting supplied |
| Body Material | Aluminium |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 122 |
| Wetted Parts | PTFE, Stainless steel 303 |
| Certification | II2G Ex h IIB T6 Gb X |
| Spraying type | Airspray |
| Designation | Part number |
|---|---|
| A35 HPA GUN WITHOUT PROJECTOR WITHOUT BASE PLATE | 129305000 |
| A35 hpa | 135305106 |
| A35 HPA GUN 07EN3L SIDE OUTLET BASE | 135305101 |
| A35 HPA GUN 09 EN3L SIDE OUTLET BASE | 135305102 |
| A35 HPA GUN 12 EN3L SIDE OUTLET BASE | 135305103 |
| A35 HPA GUN 15 EN3L SIDE OUTLET BASE | 135305104 |
| A35 HPA GUN 18 EN3L SIDE OUTLET BASE | 135305105 |
| A35 HPA GUN 18EN3L WITHOUT BASE | 135305005 |
| A35 HPA 07EN3L REAR OUTLET BASE | 135305201 |
| A35 HPA 09EN3L REAR OUTLET BASE | 135305202 |
| A35 HPA 12EN3L REAR OUTLET BASE | 135305203 |
| A35 HPA 15EN3L REAR OUTLET BASE | 135305204 |
| A35 HPA 18EN3L REAR OUTLET BASE | 135305205 |
| A35 HPA 06EN3L WITH CEFLA BASE SIDE OUTLETS | 135305306 |
| A35 HPA 07EN3L WITH CEFLA BASE SIDE OUTLETS | 135305301 |
| A35 HPA 09EN3L WITH CEFLA BASE SIDE OUTLETS | 135305302 |
| A35 HPA 12EN3L WITH CEFLA BASE SIDE OUTLETS | 135305303 |
| A35 HPA 15EN3L WITH CEFLA BASE SIDE OUTLETS | 135305304 |
| A35 HPA 18EN3L WITH CEFLA BASE SIDE OUTLETS | 135305305 |
| A35 HPA GUN 06EN3L REAR OUTLET BASE | 135305206 |
| A35 HPA GUN 06EN3L WITHOUT BASE | 135305006 |
| A35 hpa | 135305001 |
| A35 HPA GUN 09EN3L WITHOUT BASE | 135305002 |
| A35 hpa | 135305003 |
| A35 BASE REAR OUTPUTS CIRCULATION IN BASE | 129300060 |
| A35 HPA GUN 15EN3L WITHOUT BASE | 135305004 |
| A35 BASE SIDE OUTPUTS CIRCULATION IN BASE | 129300050 |
| A35 CEFLA BASE SIDE OUTPUTS CIRCULATION IN BASE | 129300070 |
| Designation | Part number | Max flowrate (cc/mn) | Max Fluid viscosity (CA 4) | Nozzle size (mm) |
|---|---|---|---|---|
| PROJECTOR 06EN3L | 031305006 | 150 | < 20 sec | 0.6 |
| PROJECTOR 07EN3L | 031305001 | 200 | <20 sec | 0.7 |
| PROJECTOR 09EN3L | 031305002 | 250 | < 20 sec | 0.9 |
| PROJECTOR 12EN3L | 031305003 | 300 | < 20 sec | 12 |
| PROJECTOR 15EN3L | 031305004 | 350 | 20 - 40 s | 1.5 |
| PROJECTOR 18EN3L | 031305005 | 400 | 20 - 40 s | 1.8 |
| AIRCAP EN3L | 132305200 | |||
| NOZZLE 06 | 134130050 | 0.6 | ||
| NOZZLE 07 | 134130100 | 0.7 | ||
| NOZZLE 09 | 134130200 | 0.9 | ||
| NOZZLE 12 | 134130300 | 1.2 | ||
| NOZZLE 15 | 134130600 | 1.5 | ||
| Nozzle | 134130700 | 1.8 | ||
| NEEDLE 06-07-09-12 | 033300100 | |||
| NEEDLE 15-18 | 033300200 | |||
| COMPLETE ATTACHMENT FOR AUTO. GUN ROD D16 + FIXING NUT | 049351000 | |||
| Mounting support DIA.12mm | 049351700 | |||
| MOUNTING SUPPORT SWIVELING | 049351705 | |||
| ADJUSTABLE FAN WIDTH MANUAL NEEDLE AUTO.GUN (M14x100) | 129253100 | |||
| ADJUSTABLE FAN WIDTH CONNECTOR - M14x100 - (F) 1/4 BSPP | 029253002 | |||
| A35 AIRSPRAY GUN SEAL KIT | 129300901 | |||
| ROBOTIC BASE 60° - T - WITH FILTER | 129691170 |
For pricing and availability on the Sames A35 HPA Automatic Airspray Spray Gun, call FTS at (248) 348-6700 or request a quote online.
The A35 is a spray gun with an 87 psi maximum material pressure. It weighs 1.1 lb.
