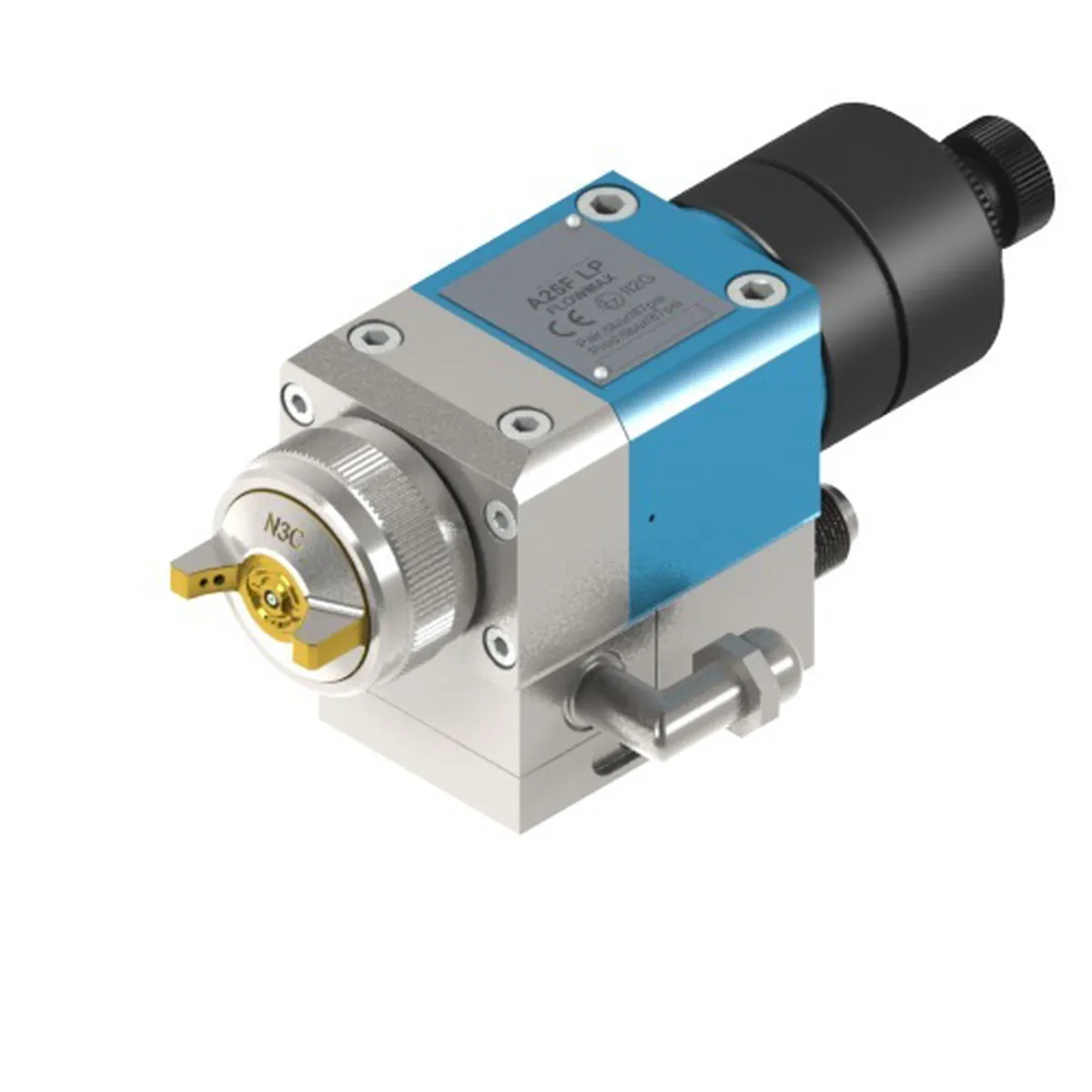

The automatic A25 F benefits from the Flowmax® technology, which guarantees a very high reliability and possibility to spray critical products. It is recommended for spraying paints, glues, water-based materials and UV products.
The automatic A25 F benefits from the Flowmax® technology, which guarantees a very high reliability and possibility to spray critical products. It is recommended for spraying paints, glues, water-based materials and UV products.
Product Status:
Category:
Manufacturer:
The automatic A25 F benefits from the Flowmax® technology, which guarantees a very high reliability and possibility to spray critical products. It is recommended for spraying paints, glues, water-based materials and UV products.
♦ Index knob adjustments of fluid output allow for precise output accuracy
♦ Fan width control delivers a high-quality finish & fan pattern optimization
♦ Precise machining of air cap delivers rigid fan control
♦ Reduced overspray delivers fast ROI (Return on Investment) & material savings
♦ Easy assembly reduces downtime
♦ Side output for easy mounting on automatic systems
♦ Circulation only in base in order to reduce pressure loss in the circulating system
♦ Guaranteed needle sealing by self-adjusting cartridge
♦ Hard treated needle & wetted parts in stainless steel for increased lifetime
♦ Reduced overspray decreases spray booth maintenance
♦ Brass nickel plated air cap ensures high resistance to water-based materials
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (bar) | 2.5 |
| Recommended Air Pressure (psi) | 36.2 |
| Trigger Air Pressure (bar) | 4 |
| Trigger Air Pressure (psi) | 58 |
| Atomizing Air Inlet | M 1/4" BSP |
| Pilot Air Inlet | M 1/8" BSP |
| Maximum Flow (cc/min) | 350 |
| Maximum Flow (gal/min) | 0.09 |
| Minimum Flow (cc/min) | 180 |
| Minimum Flow (gal/min) | 0.047 |
| Maximum Material Pressure (bar) | 6 |
| Maximum Material Pressure (psi) | 87 |
| Air Consumption (cfm) | 14.1 |
| Air Consumption (m3/h) | 24 |
| Weight (lbs) | 1280 |
| Material Inlet Port | 2 x F 1/4 NPS, 6-8 pipe with supplied fitting |
| Body Material | Aluminium |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 122 |
| Wetted Parts | Stainless steel 303, PTFE |
| Certification | II2G Ex h IIB T6 Gb X |
| Spraying type | Airspray |
| Designation | Part number | Max flowrate (cc/mn) | Nozzle size (mm) |
|---|---|---|---|
| A25F 07N3C WITH PROJECTOR AND BASE | 151260809 | 200 | 0.7 |
| A25F 09N3C WITH PROJECTOR AND BASE | 151260810 | 250 | 0.9 |
| A25F 12N3C WITH PROJECTOR AND BASE | 151260811 | 300 | 1.2 |
| A25F 07N3C WITH PROJECTOR WITHOUT BASE | 135420001 | 200 | 0.7 |
| A25F 09N3C WITH PROJECTOR WITHOUT BASE | 135420002 | 250 | 0.9 |
| A25F 12N3C WITH PROJECTOR WITHOUT BASE | 135420003 | 300 | 1.2 |
| A25F BASE SIDE OUTPUTS CIRCULATION IN BASE | 129420050 |
| Designation | Part number | Air Consumption (m3/h) | Details | Max Fluid viscosity (CA 4) | Recommended tips |
|---|---|---|---|---|---|
| Aircap N3C (BRASS) | 132021750 | 24.5 | flat spray 20-35 cm | 20 - 40 s | 1.2 to 1.8 mm |
| Aircap N3CA (ALUMINUM) | 132021700 | 24.5 | flat spray 20-35 cm | 20 - 40 s | |
| Aircap LP3 (ALUMINUM) | 132060100 | flat spray 20-35 cm | |||
| Nozzle 207 LP23 | 134021100 | ||||
| Nozzle 209 | 134020100 | ||||
| Nozzle 212 | 134020200 | ||||
| Needle | 033420100 | ||||
| A25F AIRSPRAY GUN SEAL KIT | 049351000 | ||||
| STAINLESS STEEL EXTENSION DI8 LG400 LATERAL FAN - 12NOZZLE | 075650311 | ||||
| SST EXTENSION DI20 LENGTH 400 CIRCULAR FAN NOZZLE 8 | 075750111 | ||||
| Mounting support DIA.12mm | 049351700 | ||||
| COMPLETE ATTACHMENT FOR AUTO. GUN ROD D16 + FIXING NUT | 049351000 | ||||
| MOUNTING SUPPORT SWIVELING | 049351705 | ||||
| ADJUSTABLE FAN WIDTH MANUAL NEEDLE AUTO.GUN (M14x100) | 129253100 | ||||
| ADJUSTABLE FAN WIDTH CONNECTOR - M14x100 - (F) 1/4 BSPP | 029253002 | ||||
| INDEXED NEEDLE ADJUST KIT | 129251500 |
For pricing and availability on the Sames A25 F Flowmax® Automatic Airspray Spray Gun, call FTS at (248) 348-6700 or request a quote online.
