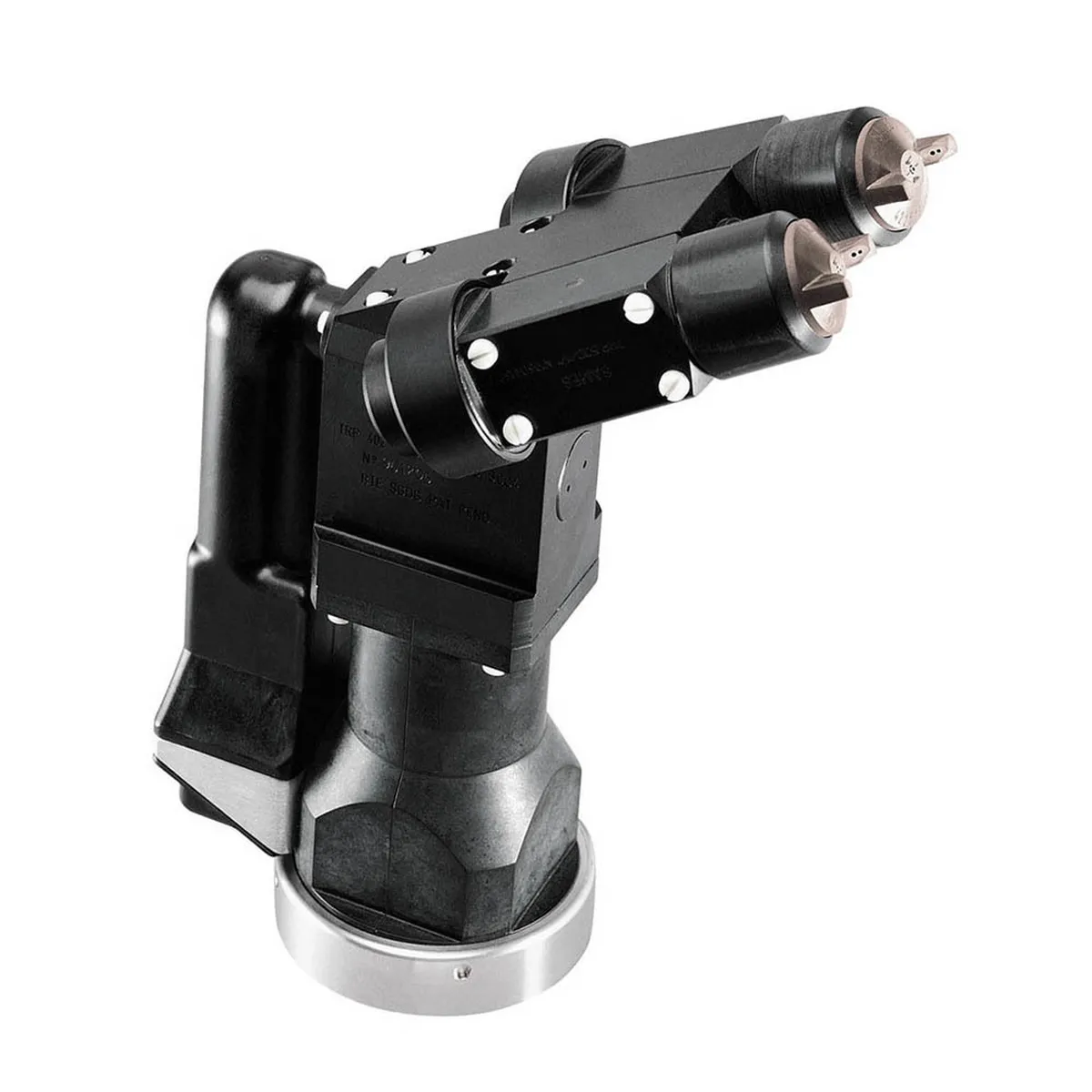

The TRP gun is light, compact and is very flexible in its applications. Its simple and robust design makes it extremely reliable.
The TRP gun is light, compact and is very flexible in its applications. Its simple and robust design makes it extremely reliable.
Product Status:
Category:
Manufacturer:
The TRP gun is light, compact and is very flexible in its applications. Its simple and robust design makes it extremely reliable.
♦ High flow rate - up to 1200 cc/min
♦ High transfer efficiency compared to conventional gun
♦ Heavy-duty piston for extended trigger life
♦ Integrated high voltage cascade
♦ Remotely controlled gun parameters
♦ Fan or vortex pattern
♦ Quick disconnect
♦ Integrated supply & dump circuits
♦ Insulated support device
| Designation | Value |
|---|---|
| Liquid Electrostatic Technology | Internal charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 14 - 60 |
| Maximum Flow (cc/min) | 1200 |
| Maximum Flow (gal/min) | 0.317 |
| Minimum Flow (cc/min) | 200 |
| Minimum Flow (gal/min) | 0.053 |
| Standard Paint Flow (cc/min) | 800 |
| Standard Paint Flow (gal/min) | 0.211 |
| Maximum Material Pressure (bar) | 10 |
| Air Consumption (m3/h) | 14 - 80 |
| Current Max (µA) | 200 |
| High Voltage (maximum) (kV) | 100 |
| High Voltage Control Module | GNM200: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | UHT152 |
| Certification | II 2 G EEx > 350 mJ |
| Product Resistivity (min-max) (MOhm.cm) | >3 |
| Spraying type | Airspray |
| Designation | Part number |
|---|---|
| TRP 502 SP SR QD | 910019846 |
| Designation | Part number |
|---|---|
| Flange for YASKAWA robot | 910036294 |
| High voltage unit UHT 152EEx e | 1511102 |
For pricing and availability on the Sames TRP502 Robotic Dual Robotic Electrostatic Spray Gun, call FTS at (248) 348-6700 or request a quote online.
The TRP gun is light, compact and is very flexible in its applications. Its simple and robust design makes it extremely reliable. Official specifications include a maximum material pressure of 10 bar, a maximum flow of 1200 cc/min (0.317 gal/min), and a maximum high voltage of 100 kV.
