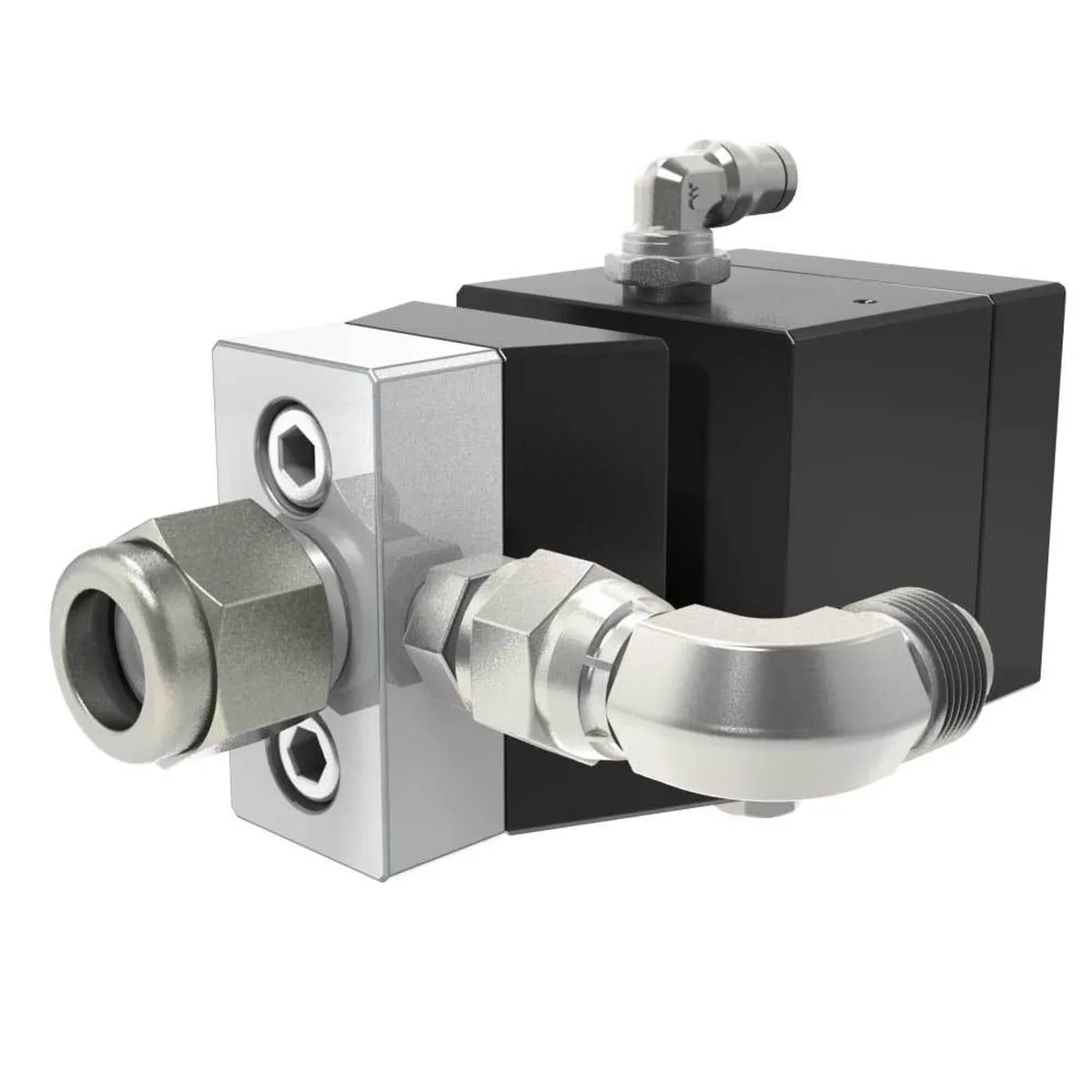

The 400 bar automatic Airless spray gun is recommended for high flow rates.
The 400 bar automatic Airless spray gun is recommended for high flow rates.
Product Status:
Category:
Manufacturer:
The 400 bar automatic Airless spray gun is recommended for high flow rates.
♦ Excellent finish quality due to very fine atomization at medium to high flow rates
♦ Reduced cost of ownership for high productivity
♦ Compact design
♦ Sustainability with limited number of parts
♦ High power spring prevents needle blockage
| Designation | Value |
|---|---|
| Trigger Air Pressure (bar) | 5.5 |
| Trigger Air Pressure (psi) | 80 |
| Maximum Material Pressure (bar) | 400 |
| Maximum Material Pressure (psi) | 5800 |
| Material Inlet Port | 2 x M 1/2'' JIC |
| Body Material | Aluminium |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 122 |
| Wetted Parts | Stainless steel 303 |
| Spraying type | Airless |
| Designation | Part number |
|---|---|
| Automatic gun | 151120300 |
| Designation | Part number |
|---|---|
| Automatic gun | 625174 |
| Automatic gun | 625199 |
| Automatic gun | 101331 |
For pricing and availability on the Sames 400 Bar (5800 psi) Automatic Airless Spray Gun, call FTS at (248) 348-6700 or request a quote online.
