The SATA spray gun for the experienced professional. With the X nozzle system, painters are able to cope with all paint systems and application recommendations.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
Product Status:
Tags:
Category:
Manufacturer:

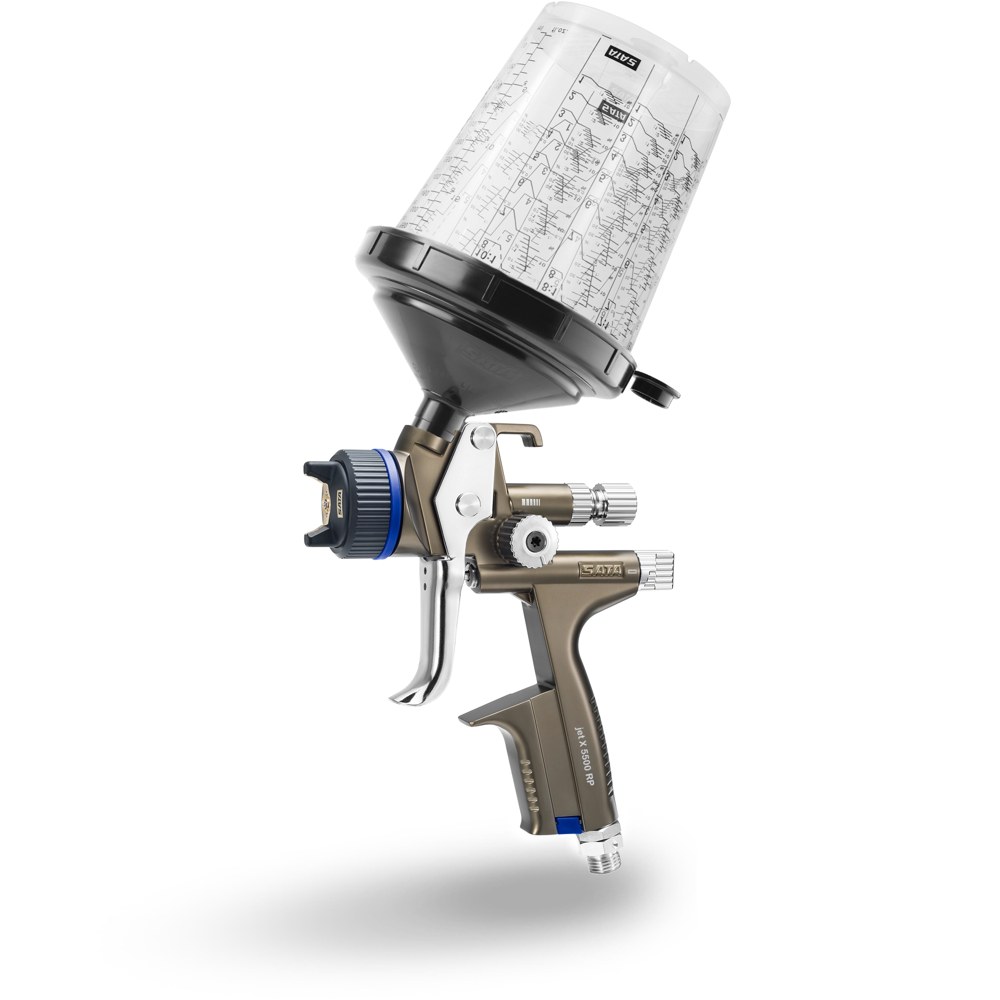

SATAjet X 5500: SATA premium spray gun for automotive refinish, HVLP and RP versions, nozzle sizes 1.1 to 1.8 mm.
The SATA spray gun for the experienced professional. With the X nozzle system, painters are able to cope with all paint systems and application recommendations. In addition, the whispering nozzle significantly reduces noise and gives bodyshops a more pleasant painting experience.
The PHASER spray gun was developed with its outstanding design, materials and a unique concept for your very special projects. The unusually elegant design was developed in cooperation with Porsche Design Studio. Technically the PHASER is identical to the SATAjet X 5500. It has the same nozzle concept and all the other convincing features that make the SATAjet X 5500 an outstanding spray gun.
The SATAjet X 5500 Clear Coat Edition impresses with its newly developed, special nozzle set for clear coat application. The optimised material distribution in combination with a finer atomisation allows users to achieve closed wetting even at a low layer thickness.
Special clear coat nozzle with additional designation "cc" (SATAjet X 5500 RP 1.3cc).
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Nozzle sizes offered | 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.8 mm |
|---|---|
| Nozzle technology | HVLP / RP |
| Air connection thread | 1/4" (male thread) |
| Air consumption | 290 l/min (10.2 CFM) |
| Air inlet pressure field of application | 0.5 - 2.4 bar (7 - 35 psi) |
| Max. storage temperature | 60 °C (140 °F) |
| Min. storage temperature | -20 °C (-4 °F) |
| Recommended dynamic inlet air pressure (compliant / HVLP) | 2 bar (29 psi) |
| Recommended spraying distance | 17 - 21 cm (6.7 - 8.3 in.) |
Values shown are SATA's published data for the SATAjet X 5500; check the SATA operating instructions for the values of your nozzle setup.
| SATA Part # | Description |
|---|---|
| 1061895 | SATAjet X5500 HVLP 1.1 I RPS D |
| 1062009 | SATAjet X5500 HVLP 1.1 I RPS D DIGITAL psi |
| 1061936 | SATAjet X5500 HVLP 1.1 O RPS D |
| 1062083 | SATAjet X5500 HVLP 1.1 O RPS D DIGITAL psi |
| 1061902 | SATAjet X5500 HVLP 1.2 I RPS D |
| 1061986 | SATAjet X5500 HVLP 1.2 I RPS D DIGITAL psi |
| 1061944 | SATAjet X5500 HVLP 1.2 O RPS D |
| 1062091 | SATAjet X5500 HVLP 1.2 O RPS D DIGITAL psi |
| 1061887 | SATAjet X5500 HVLP 1.3 I RPS D |
| 1062017 | SATAjet X5500 HVLP 1.3 I RPS D DIGITAL psi |
| 1061952 | SATAjet X5500 HVLP 1.3 O RPS D |
| 1062132 | SATAjet X5500 HVLP 1.3 O RPS D DIGITAL psi |
| 1061910 | SATAjet X5500 HVLP 1.4 I RPS D |
| 1062041 | SATAjet X5500 HVLP 1.4 I RPS D DIGITAL psi |
| 1061960 | SATAjet X5500 HVLP 1.4 O RPS D |
| 1062140 | SATAjet X5500 HVLP 1.4 O RPS D DIGITAL psi |
| 1061928 | SATAjet X5500 HVLP 1.5 I RPS D |
| 1062059 | SATAjet X5500 HVLP 1.5 I RPS D DIGITAL psi |
| 1061978 | SATAjet X5500 HVLP 1.5 O RPS D |
| 1062174 | SATAjet X5500 HVLP 1.5 O RPS D DIGITAL psi |
| 1061548 | SATAjet X5500 RP 1.1 I RPS D |
| 1061639 | SATAjet X5500 RP 1.1 I RPS D DIGITAL psi |
| 1061580 | SATAjet X5500 RP 1.1 O RPS D |
| 1061770 | SATAjet X5500 RP 1.1 O RPS D DIGITAL psi |
| 1061556 | SATAjet X5500 RP 1.2 I RPS D |
| 1061655 | SATAjet X5500 RP 1.2 I RPS D DIGITAL psi |
| 1061598 | SATAjet X5500 RP 1.2 O RPS D |
| 1061796 | SATAjet X5500 RP 1.2 O RPS D DIGITAL psi |
| 1061564 | SATAjet X5500 RP 1.3 I RPS D |
| 1061704 | SATAjet X5500 RP 1.3 I RPS D DIGITAL psi |
| 1061605 | SATAjet X5500 RP 1.3 O RPS D |
| 1061811 | SATAjet X5500 RP 1.3 O RPS D DIGITAL psi |
| 1061572 | SATAjet X5500 RP 1.4 I RPS D |
| 1061738 | SATAjet X5500 RP 1.4 I RPS D DIGITAL psi |
| 1061613 | SATAjet X5500 RP 1.4 O RPS D |
| 1061837 | SATAjet X5500 RP 1.4 O RPS D DIGITAL psi |
| 1106534 | SATAjet X5500 RP 1.5 I RPS D |
| 1109976 | SATAjet X5500 RP 1.5 I RPS D DIGITAL psi |
| 1106550 | SATAjet X5500 RP 1.5 O RPS D |
| 1109968 | SATAjet X5500 RP 1.5 O RPS D DIGITAL psi |
| 1106542 | SATAjet X5500 RP 1.6 I RPS D |
| 1109942 | SATAjet X5500 RP 1.6 I RPS D DIGITAL psi |
| 1106568 | SATAjet X5500 RP 1.6 O RPS D |
| 1109950 | SATAjet X5500 RP 1.6 O RPS D DIGITAL psi |
| 1126889 | SATAjet X5500 RP 1.8 I RPS D |
| 1126897 | SATAjet X5500 RP 1.8 O RPS D |
| 1202663 | SATAjet X5500 RP 10/40 RPS D |
| 1202829 | SATAjet X5500 RP 10/40 RPS D DIGITAL psi |
| SATA Part # | Description |
|---|---|
| 1096157 | SATAjet X5500 HVLP PHASER 1.2 I RPS |
| 1096107 | SATAjet X5500 HVLP PHASER 1.2 O RPS |
| 1096149 | SATAjet X5500 HVLP PHASER 1.3 I RPS |
| 1096115 | SATAjet X5500 HVLP PHASER 1.3 O RPS |
| 1096131 | SATAjet X5500 HVLP PHASER 1.4 I RPS |
| 1096123 | SATAjet X5500 HVLP PHASER 1.4 O RPS |
| 1096066 | SATAjet X5500 RP PHASER 1.2 I RPS |
| 1096090 | SATAjet X5500 RP PHASER 1.2 O RPS |
| 1096074 | SATAjet X5500 RP PHASER 1.3 I RPS |
| 1096082 | SATAjet X5500 RP PHASER 1.3 O RPS |
| 1150002 | SATAjet X5500 RP PHASER 1.4 I RPS |
| 1150010 | SATAjet X5500 RP PHASER 1.4 O RPS |
| SATA Part # | Description |
|---|---|
| 1174573 | SATAjet X5500 RP 1.3cc RPS D Edition RP 1.3cc |
| SATA Part # | Description |
|---|---|
| 82552 | Air piston service unit |
| 133959 | Spring set |
| 136960 | Sealing kit |
| 1047522 | Repair set |
| SATA Part # | Description |
|---|---|
| 1826 | Pack of 4 anti-drip devices for 0.6 l PVC gravity flow cup |
| 49395 | Screw-on lid for 0.6 l PVC gravity flow cup |
| 27243 | 0.6 l QCC quick change PVC gravity flow cup |
| 211508 | Seal ring |
| 140582 | Pack of 5 sealing elements for fluid tip |
| 86843 | Air piston rod |
| 133942 | Seal retainer (air side) |
| 211458 | Trigger sleeve kit |
| 211433 | Trigger kit |
| 19745 | Swivel joint 1/4" male thread x M15 x 1 for non-DIGITAL spray guns |
| 211409 | Pack of 4 CCS clips (green, blue, red, black) |
| 1057357 | Control knob and screw (2 pieces each) |
| 213025 | Spindle for round/flat spray control |
| 133934 | Pack of 3 sealings for spindle round/flat spray control |
| 211391 | Packing material with 3 locking screws for 5000 series air micrometer |
| 133991 | Pack of 3 air piston heads |
| 211466 | Air micrometer (air flow control knob) |
| 133959 | Spring set consisting of 3x paint needle springs and 3x air piston springs each |
| 211474 | Material flow control with counter nut |
| 15438 | Paint needle sealing |
| 3988 | Single pack of 10 paint strainers |
| 76018 | Pack of 10 x 10 paint strainers |
| 76026 | Pack of 50 x 10 paint strainers |
| 1057414 | Battery kit with closing screw and sealing for DIGITAL device |
| 211441 | Seal holder with sleeve for 5000 series DIGITAL |
| 16162 | Swivel joint 1/4" male thread for DIGITAL spray guns |
| 211516 | Swivel joint with seal holder and sleeve for 5000 series DIGITAL |
| 1057323 | Tool kit |
Nozzle sets, air caps and the exploded parts drawing are in the SATA operating instructions below. Contact FTS for help matching parts to your gun.
