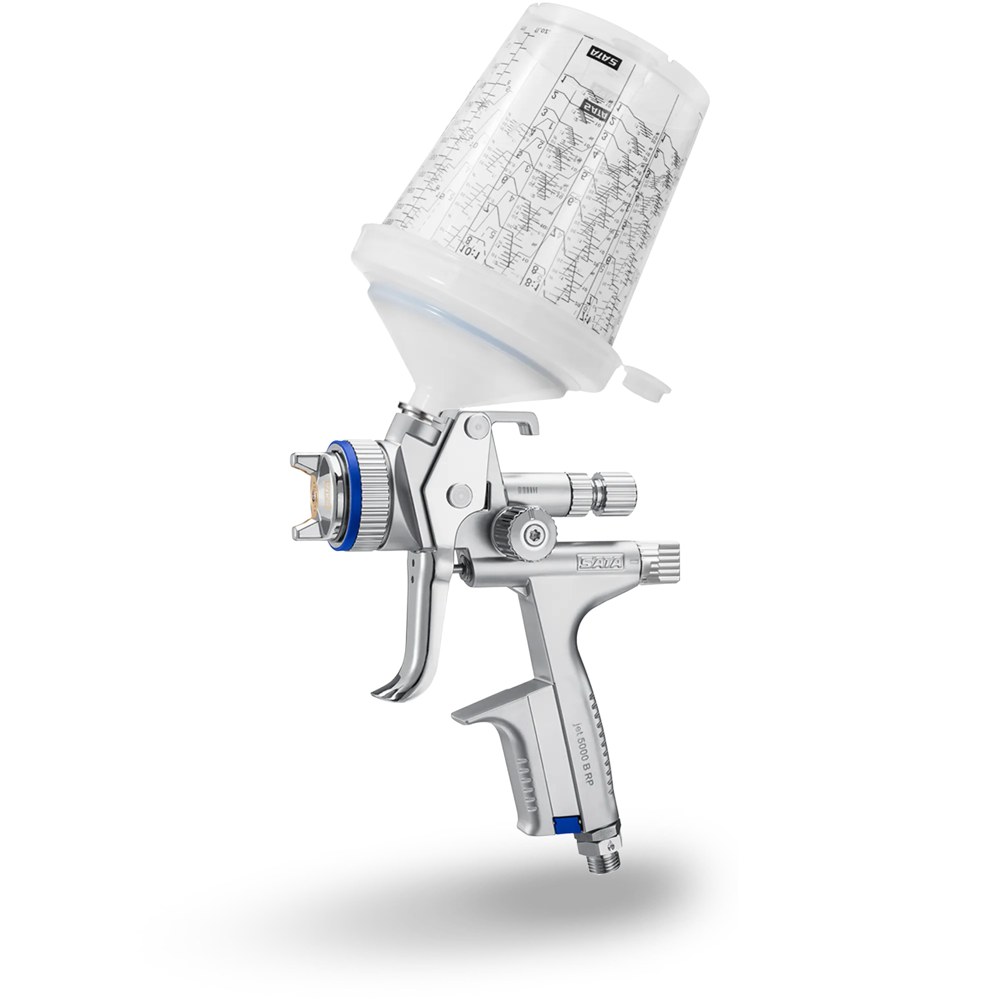

SATAjet 5000 B: SATA spray gun with RPS cup system, HVLP and RP versions, nozzle sizes 1.0 to 2.5 mm.
With the SATAjet 5000 B, painters can adjust the inlet pressure and the painting distance according to the paint used, the climatic conditions and their working style – and achieve perfect results in any situation. The ergonomic paint spray gun has been developed in cooperation with the Porsche Design Studio – to ensure perfect ergonomics. Robust and light – with ergonomic adjustment elements, the SATAjet 5000 B ensures comfortable working.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Nozzle sizes offered | 1.0, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2.0, 2.2, 2.5 mm |
|---|---|
| Nozzle technology | HVLP / RP |
| Air connection thread | 1/4" (male thread) |
| Air consumption | 290 l/min (10.2 CFM) |
| Air inlet pressure field of application | 0.5 - 2.4 bar (7 - 35 psi) |
| Max. storage temperature | 60 °C (140 °F) |
| Min. storage temperature | -20 °C (-4 °F) |
| Recommended dynamic inlet air pressure (compliant / HVLP) | 2 bar (29 psi) |
| Recommended spraying distance | 17 - 21 cm (6.7 - 8.3 in.) |
Values shown are SATA's published data for the SATAjet 5000 B; check the SATA operating instructions for the values of your nozzle setup.
| SATA Part # | Description |
|---|---|
| 210732 | SATAjet 5000 B HVLP nozzle 1.0 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 210740 | SATAjet 5000 B HVLP nozzle 1.2 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 210765 | SATAjet 5000 B HVLP nozzle 1.3, RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 210799 | SATAjet 5000 B HVLP nozzle 1.4, RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 210823 | SATAjet 5000 B HVLP nozzle 1.5 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 210831 | SATAjet 5000 B HVLP nozzle 1.7 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 210849 | SATAjet 5000 B HVLP nozzle 1.9 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 210856 | SATAjet 5000 B HVLP nozzle 2.2 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 210757 | SATAjet 5000 B HVLP nozzle WSB RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 1117523 | SATAjet 5000 B RP nozzle 1.0 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 215640 | SATAjet 5000 B RP nozzle 1.1 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 209858 | SATAjet 5000 B RP nozzle 1.2 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 209866 | SATAjet 5000 B RP nozzle 1.2 W RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 209874 | SATAjet 5000 B RP nozzle 1.3 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 209882 | SATAjet 5000 B RP nozzle 1.4 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 209890 | SATAjet 5000 B RP nozzle 1.6 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 209908 | SATAjet 5000 B RP nozzle 1.8 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| 209916 | SATAjet 5000 B RP nozzle 2.0 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x) swivel joint |
| 1117531 | SATAjet 5000 B RP nozzle 2.5 RPS multi-purpose cup 0.3 l / 0.6 l / 0.9 l (each 1x), swivel joint |
| SATA Part # | Description |
|---|---|
| 211532 | Repair kit |
| 82552 | Air piston service unit |
| 133959 | Spring set |
| 136960 | Sealing kit |
| SATA Part # | Description |
|---|---|
| 1826 | Pack of 4 anti-drip devices for 0.6 l PVC gravity flow cup |
| 49395 | Screw-on lid for 0.6 l PVC gravity flow cup |
| 27243 | 0.6 l QCC quick change PVC gravity flow cup |
| 140582 | Pack of 5 sealing elements for fluid tip |
| 211425 | Pack of 3 air distribution rings |
| 86843 | Air piston rod |
| 133942 | Seal retainer (air side) |
| 211458 | Trigger sleeve kit |
| 211433 | Trigger kit |
| 134098 | Air connection piece 1/4" male thread - M15 x 1 |
| 19745 | Swivel joint 1/4" male thread x M15 x 1 for non-DIGITAL spray guns |
| 211409 | Pack of 4 CCS clips (green, blue, red, black) |
| 211482 | Control knob and screw (2 pieces each) |
| 213025 | Spindle for round/flat spray control |
| 133934 | Pack of 3 sealings for spindle round/flat spray control |
| 211391 | Pack of 3 locking screws for SATAjet 5000 B air micrometer |
| 133991 | Pack of 3 air piston heads |
| 211466 | Air micrometer (air flow control knob) |
| 133959 | Spring set consisting of 3x paint needle springs and 3x air piston springs each |
| 211474 | Material flow control with counter nut |
| 15438 | Paint needle sealing |
| 3988 | Single pack of 10 paint strainers |
| 76018 | Pack of 10 x 10 paint strainers |
| 76026 | Pack of 50 x 10 paint strainers |
| 211524 | Tool kit |
Nozzle sets, air caps and the exploded parts drawing are in the SATA operating instructions below. Contact FTS for help matching parts to your gun.
