The SATA spray master RP combines low overspray, high pressure technology with the advantageous properties of a material pressure supported spray gun.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
Product Status:
Tags:
Category:
Manufacturer:

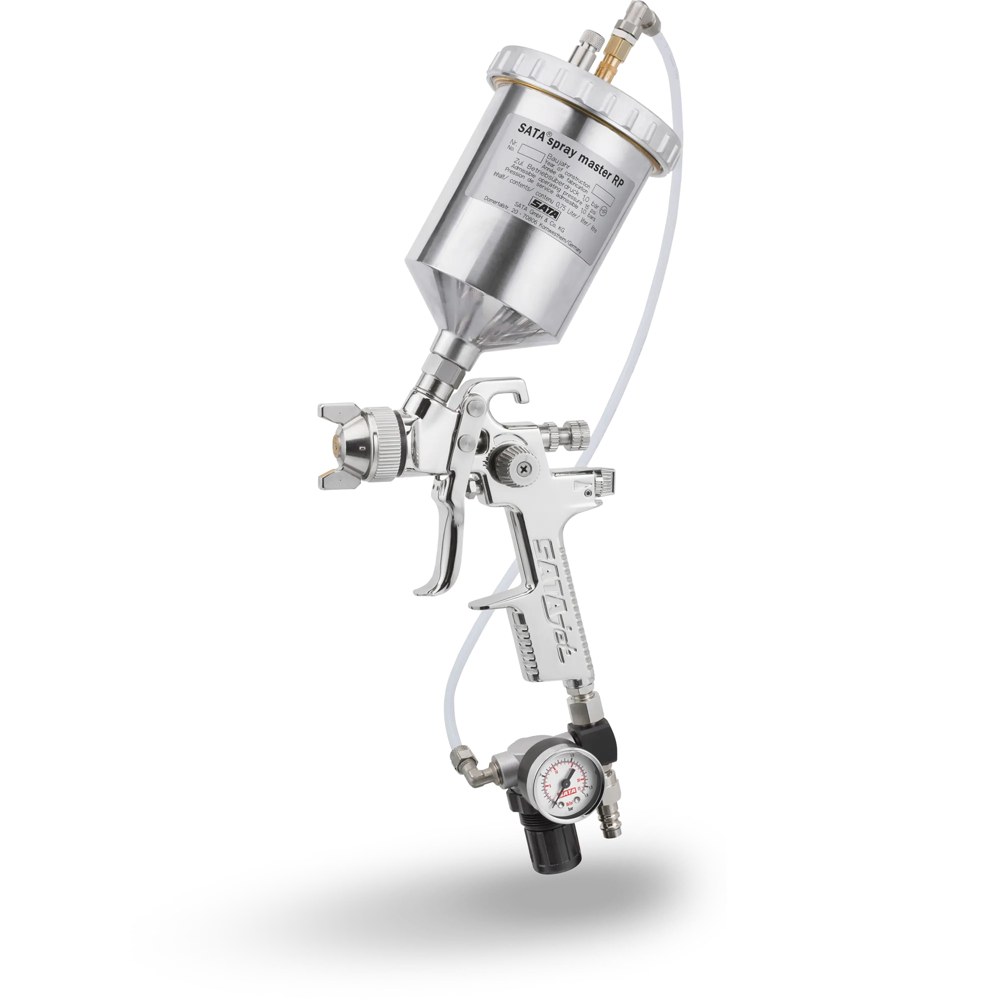

SATA spray master RP: SATA pressurized cup spray gun, nozzle sizes 1.7 to 2.0 mm.
The SATA spray master RP combines low overspray, high pressure technology with the advantageous properties of a material pressure supported spray gun. With this unique combination, almost all paint systems of different viscosities up to thick-film glazes can be processed with excellent painting results.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Nozzle sizes offered | 1.7, 2.0 mm |
|---|---|
| Air connection thread | 1/4" (male thread) |
| Air consumption | 230 l/min (8.1 CFM) |
| Air inlet pressure field of application | 1 - 2 bar (15 - 29 psi) |
| Max. storage temperature | 60 °C (140 °F) |
| Min. storage temperature | -20 °C (-4 °F) |
| Recommended dynamic inlet air pressure (compliant / HVLP) | 2 bar (29 psi) |
| Recommended spraying distance | 17 - 21 cm (6.7 - 8.3 in.) |
Values shown are SATA's published data for the SATA spray master RP; check the SATA operating instructions for the values of your nozzle setup.
| SATA Part # | Description |
|---|---|
| 72900 | SATA spray master RP SM 0.7 l pressurized cup, reduction valve |
| 73734 | SATA spray master RP, 1.7 mm, 0.7 l pressurised cup, reduct. valve |
| 74120 | SATA spray master RP, 2.0 mm, 0.7 l pressurised cup, reduct. valve |
Nozzle sets, repair kits and spare parts are listed in the SATA operating instructions below. Contact FTS for help matching parts to your gun.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
