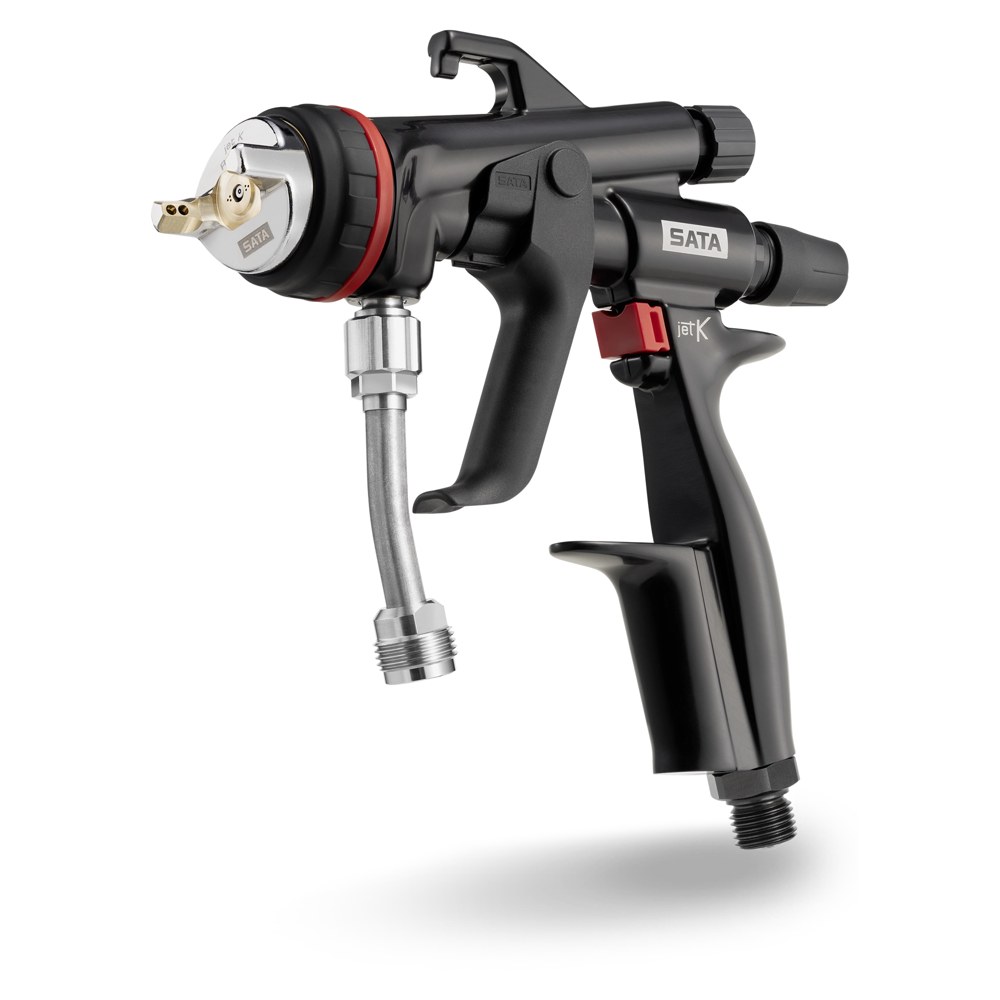

SATA jet K Spray Gun

Manufacturer Part Number: 1255927

The jet K is the new pressure-fed spray gun from SATA and much more besides that. It offers a comprehensive solution for achieving perfect finishes across a wide range of applications, from functional coatings to flawless clearcoat finishes.

Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.

Product Status:

Available

Tags:

Category:

Manufacturer:

SATA jet K spray gun
SATA jet K Spray Gun

Description:

SATA jet K: SATA pressure-fed spray gun for large-area applications, HVLP and RP versions, nozzle sizes 0.8 to 1.8 mm.

The jet K is the new pressure-fed spray gun from SATA and much more besides that. It offers a comprehensive solution for achieving perfect finishes across a wide range of applications, from functional coatings to flawless clearcoat finishes.

  • The jet K BASIC weighs just 430 g. An advantage that is particularly noticeable on long working days.
  • With a fan height of up to 36 cm¹, the jet K ensures fast and fatigue-free application.
  • The even material distribution across the entire spray pattern makes it much easier to consistently achieve excellent finishes regardless of the selected material.
  • The new nozzle technology, combined with the flow-optimised air-guidance system, leads surface quality to a whole new level. In other words: you get the surface quality which you desire.
  • In addition to the trigger already fitted, every jet K comes with a second one: the M-L size trigger kit is designed for users with larger hands who need even more space between trigger and material tube. The trigger is easy to change as it is secured with just one single screw.
  • Air micrometer with integrated swivel joint - easy add-on

Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.

Features:

Technical Specifications

Nozzle sizes offered0.8, 1.0, 1.1, 1.2, 1.3, 1.4, 1.6, 1.8 mm
Nozzle technologyHVLP / RP
Air connection thread1/4" (male thread)
Air consumption380 l/min (13.4 CFM)
Air inlet pressure field of application0.5 - 10 bar (7 - 145 psi)
Material connection thread3/8" (male thread)
Max. recommended material inlet pressure (static)10.0 bar (145 psi)
Recommended dynamic inlet air pressure (compliant / HVLP)2 bar (29 psi)
Recommended spraying distance15 - 21 cm (5.9 - 8.3 in.)

Values shown are SATA's published data for the jet K; check the SATA operating instructions for the values of your nozzle setup.

jet K Models & Part Numbers

SATA Part #Description
1255927jet K HVLP 0.8 BASIC
1255935jet K HVLP 1.0 BASIC
1255943jet K HVLP 1.1 BASIC
1255969jet K HVLP 1.3 BASIC
1255977jet K HVLP 1.4 BASIC
1255951jet K HVLP nozzle 1,2 BASIC Mat. connection 3/8" (male thread)
1255919jet K RP 0.8 BASIC
1257519jet K RP 0.8 MaxLayer BASIC
1255224jet K RP 1.0 BASIC
1255258jet K RP 1.0 MaxLayer BASIC
1255266jet K RP 1.1 BASIC
1255521jet K RP 1.2 BASIC
1255539jet K RP 1.3 BASIC
1255547jet K RP 1.3 MaxLayer BASIC
1255563jet K RP 1.4 BASIC
1255589jet K RP 1.6 BASIC
1255860jet K RP 1.8 BASIC

Nozzle sets, repair kits and spare parts are listed in the SATA operating instructions below. Contact FTS for help matching parts to your gun.

Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.

SATA jet K Operating Instructions
