With this high-performance paint spray gun designed for use with remote tanks or pump systems you can achieve high-quality paint jobs on large surfaces.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
Product Status:
Tags:
Category:
Manufacturer:

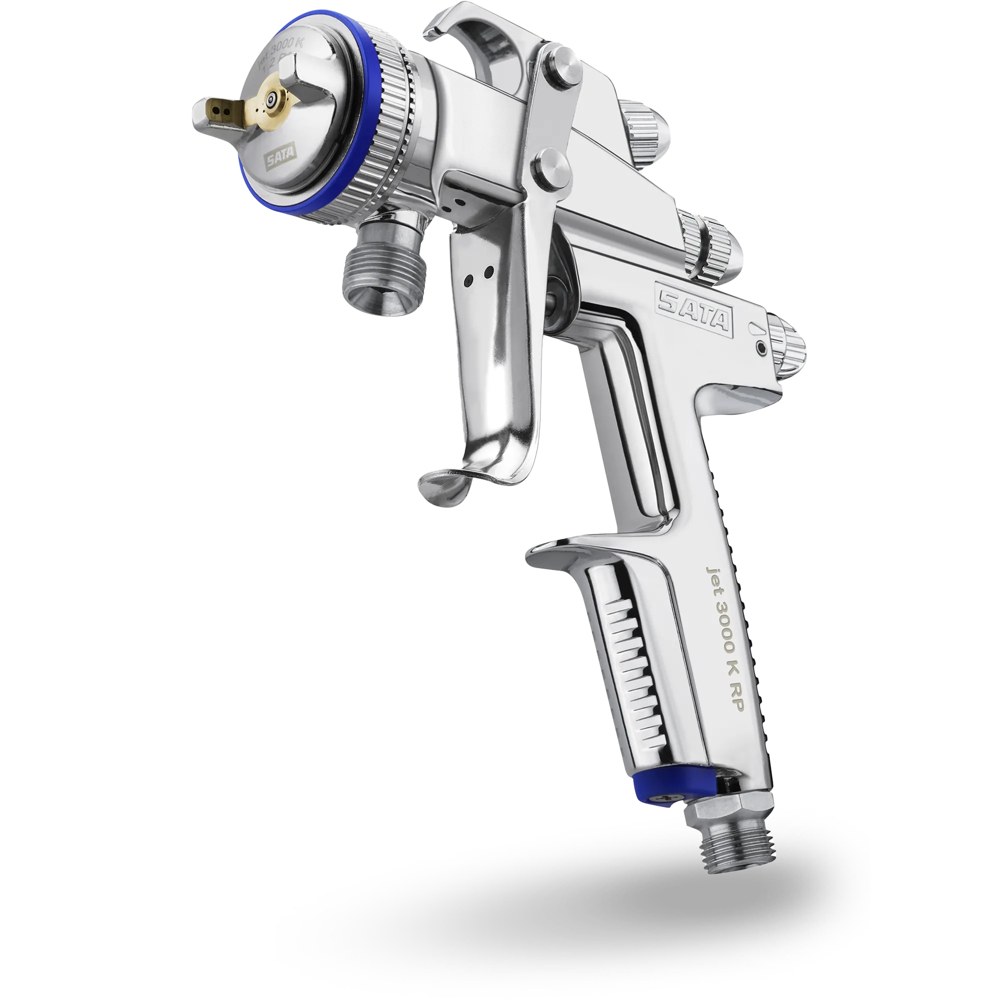

SATAjet 3000 K: SATA premium spray gun for large-area applications, HVLP and RP versions, nozzle sizes 0.8 to 2.0 mm.
With this high-performance paint spray gun designed for use with remote tanks or pump systems you can achieve high-quality paint jobs on large surfaces. The stretched spray fan with finest material atomization results in a perfect surface quality with homogeneous paint flow. The robustness, the low maintenance requirements and the ergonomic balance of the SATAjet 3000 K are ideal prerequisites for continuous use in industry and trade.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Nozzle sizes offered | 0.8, 1.0, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 2.0 mm |
|---|---|
| Nozzle technology | HVLP / RP |
| Air connection thread | 1/4" (male thread) |
| Air consumption | 430 l/min (15.2 CFM) |
| Air inlet pressure field of application | 2.5 - 3 bar (36 - 44 psi) |
| Max. recommended material inlet pressure (static) | 10.0 bar (145 psi) |
| Max. storage temperature | 60 °C (140 °F) |
| Min. storage temperature | -20 °C (-4 °F) |
| Recommended dynamic inlet air pressure (compliant / HVLP) | 2.5 bar (36 psi) |
| Recommended spraying distance | 17 - 21 cm (6.7 - 8.3 in.) |
Values shown are SATA's published data for the SATAjet 3000 K; check the SATA operating instructions for the values of your nozzle setup.
| SATA Part # | Description |
|---|---|
| 93385 | SATAjet 3000 K HVLP nozzle 0.8 material connection 3/8" (male thread) |
| 92924 | SATAjet 3000 K HVLP nozzle 1.0 material connection 3/8" (male thread) |
| 93393 | SATAjet 3000 K HVLP nozzle 1.2 material connection 3/8" (male thread) |
| 193656 | SATAjet 3000 K HVLP nozzle 1.4 material connection 3/8" (male thread) |
| 96164 | SATAjet 3000 K HVLP nozzle 1.6 material connection 3/8" (male thread) |
| 96172 | SATAjet 3000 K HVLP nozzle 2.0 material connection 3/8" (male thread) |
| 92932 | SATAjet 3000 K RP 0.8 |
| 223511 | SATAjet 3000 K RP 0.8 IA material pressure 10 bar / 145 psi |
| 93336 | SATAjet 3000 K RP 1.1 |
| 93344 | SATAjet 3000 K RP 1.3 |
| 142265 | SATAjet 3000 K RP 1.3 with lifetime‑prolonging surface |
| 93351 | SATAjet 3000 K RP 1.5 |
| 93369 | SATAjet 3000 K RP 1.7 |
| 93377 | SATAjet 3000 K RP 2.0 |
| SATA Part # | Description |
|---|---|
| 92767 | Repair set |
| 92759 | Air piston service unit |
| 183780 | Seal set |
| SATA Part # | Description |
|---|---|
| 6395 | CCS clip (green, blue, red, black) |
| 9050 | Tool kit |
| 15438 | Paint needle sealing |
| 91959 | Air piston rod |
| 92056 | Trigger kit |
| 92619 | Material flow control with counter nut |
| 92742 | Round/flat fan control, compl |
| 93526 | Material connection, stainless steel |
| 93559 | Insert, stainless steel |
| 97824 | Air distribution ring |
| 133926 | Trigger spigot kit |
| 133942 | Seal retainer |
| 133959 | Pressure springs for paint needle and air piston |
| 133967 | Locking screw for SATA air micrometer |
| 133991 | Air piston head |
| 134098 | Air connection piece 1/4" (male thread) |
| 139964 | Air micrometer (air flow control knob) |
Nozzle sets, air caps and the exploded parts drawing are in the SATA operating instructions below. Contact FTS for help matching parts to your gun.
