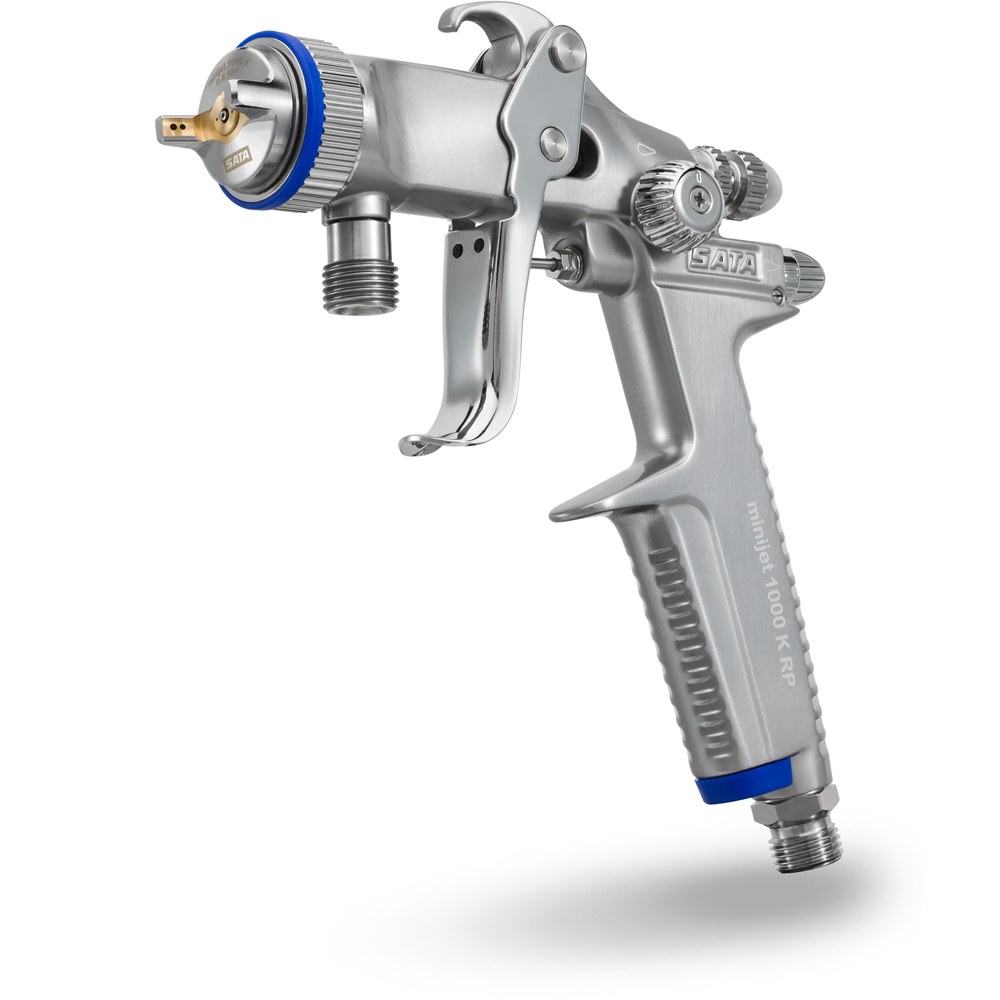

The SATAminijet 1000 K is a SATA pressure-fed spray gun with material connection.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
The SATAminijet 1000 K is a SATA pressure-fed spray gun with material connection.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
Product Status:
Tags:
Category:
Manufacturer:
SATAminijet 1000 K: SATA pressure-fed spray gun with material connection, HVLP and RP versions, nozzle sizes 0.3 to 1.4 mm.
SATA offers the SATAminijet 1000 K in the versions listed under Specifications, each with its own SATA part number.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Nozzle sizes offered | 0.3, 0.5, 0.8, 1.0, 1.2, 1.4 mm |
|---|---|
| Nozzle technology | HVLP / RP |
| Air connection thread | 1/4" (male thread) |
| Air consumption | 200 l/min (7.1 CFM) |
| Air inlet pressure field of application | 2.5 bar (36 psi) |
| Max. recommended material inlet pressure (static) | 10.0 bar (145 psi) |
| Max. storage temperature | 60 °C (140 °F) |
| Min. storage temperature | -20 °C (-4 °F) |
| Recommended dynamic inlet air pressure (compliant / HVLP) | 2.5 bar (36 psi) |
| Recommended spraying distance | 17 - 21 cm (6.7 - 8.3 in.) |
Values shown are SATA's published data for the SATAminijet 1000 K; check the SATA operating instructions for the values of your nozzle setup.
| SATA Part # | Description |
|---|---|
| 190280 | SATAminijet 1000 K HVLP nozzle 0.3 material connection 1/4" (male thread) |
| 190298 | SATAminijet 1000 K HVLP nozzle 0.5 material connection 1/4" (male thread) |
| 190306 | SATAminijet 1000 K HVLP nozzle 0.8 material connection 1/4" (male thread) |
| 190314 | SATAminijet 1000 K HVLP nozzle 1.0 material connection 1/4" (male thread) |
| 190322 | SATAminijet 1000 K HVLP nozzle 1.2 material connection 1/4" (male thread) |
| 187450 | SATAminijet 1000 K RP nozzle 0.3 material connection 1/4" (male thread) |
| 187468 | SATAminijet 1000 K RP nozzle 0.5 material connection 1/4" (male thread) |
| 187476 | SATAminijet 1000 K RP nozzle 0.8 material connection 1/4" (male thread) |
| 187484 | SATAminijet 1000 K RP nozzle 1.0 material connection 1/4" (male thread) |
| 187492 | SATAminijet 1000 K RP nozzle 1.2 material connection 1/4" (male thread) |
| 197152 | SATAminijet 1000 K RP nozzle 1.4 material connection 1/4" (male thread) |
Nozzle sets, repair kits and spare parts are listed in the SATA operating instructions below. Contact FTS for help matching parts to your gun.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
