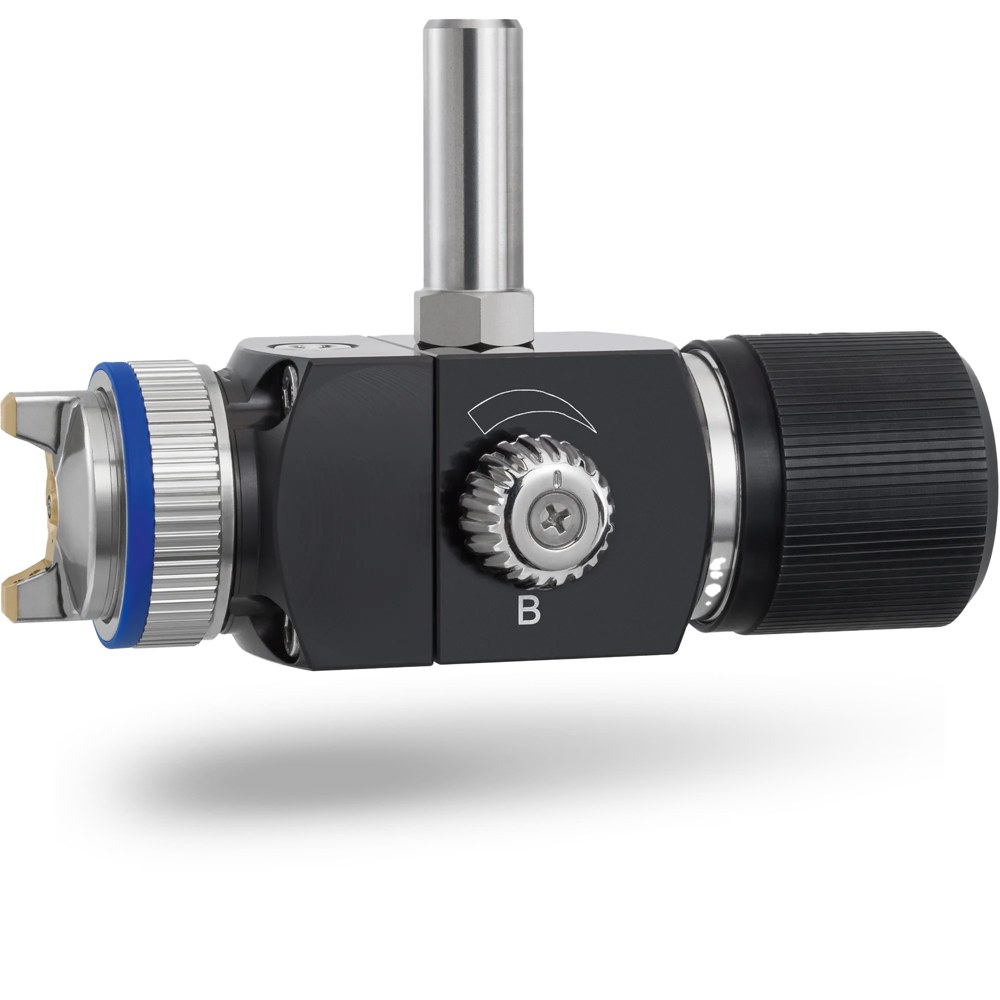

The SATAjet 3000 A RP is an extra fast, material-fed automatic gun for paint spraying machines and robots. The optimised RP high-pressure technology ensures fast and precise results.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
Product Status:
Tags:
Category:
Manufacturer:
SATAjet 3000 A: SATA automatic spray gun, HVLP and RP versions, nozzle sizes 0.5 to 2.0 mm.
The SATAjet 3000 A RP is an extra fast, material-fed automatic gun for paint spraying machines and robots. The optimised RP high-pressure technology ensures fast and precise results. The high application efficiency of well over 65% complies with the VOC directive and saves material.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Nozzle sizes offered | 0.5, 0.8, 1.0, 1.1, 1.2, 1.3, 1.5, 1.6, 2.0 mm |
|---|---|
| Nozzle technology | HVLP / RP |
| Air consumption | 400 l/min (14.1 CFM) |
| Air inlet pressure field of application | 2.5 - 4 bar (36 - 58 psi) |
| Control | Internally controlled |
| Max. recommended material inlet pressure (static) | 10.0 bar (145 psi) |
Values shown are SATA's published data for the SATAjet 3000 A; check the SATA operating instructions for the values of your nozzle setup.
| SATA Part # | Description |
|---|---|
| 156604 | SATAjet 3000 A HVLP nozzle 0.5 stainless steel |
| 94441 | SATAjet 3000 A HVLP nozzle 0.8 |
| 94458 | SATAjet 3000 A HVLP nozzle 1.0 |
| 124610 | SATAjet 3000 A HVLP nozzle 1.2 stainless steel |
| 179002 | SATAjet 3000 A HVLP nozzle 1.2 stainless steel, fluid tip and paint needle made of carbide metal |
| 124552 | SATAjet 3000 A HVLP nozzle 1.6 stainless steel |
| 124545 | SATAjet 3000 A HVLP nozzle 2.0 |
| 188276 | SATAjet 3000 A HVLP nozzle 2.0, stainless steel, flud tip and paint nozzle made of carbide metal, version Dan-Am |
| 220376 | SATAjet 3000 A RP nozzle 0.5 |
| 94417 | SATAjet 3000 A RP nozzle 0.8 |
| 94425 | SATAjet 3000 A RP nozzle 1.1 |
| 94433 | SATAjet 3000 A RP nozzle 1.3 |
| 143289 | SATAjet 3000 A RP nozzle 1.5 stainless steel |
| 182378 | SATAjet 3000 A RP nozzle 2.0, with lifetime prolonging surface |
Nozzle sets, repair kits and spare parts are listed in the SATA operating instructions below. Contact FTS for help matching parts to your gun.
