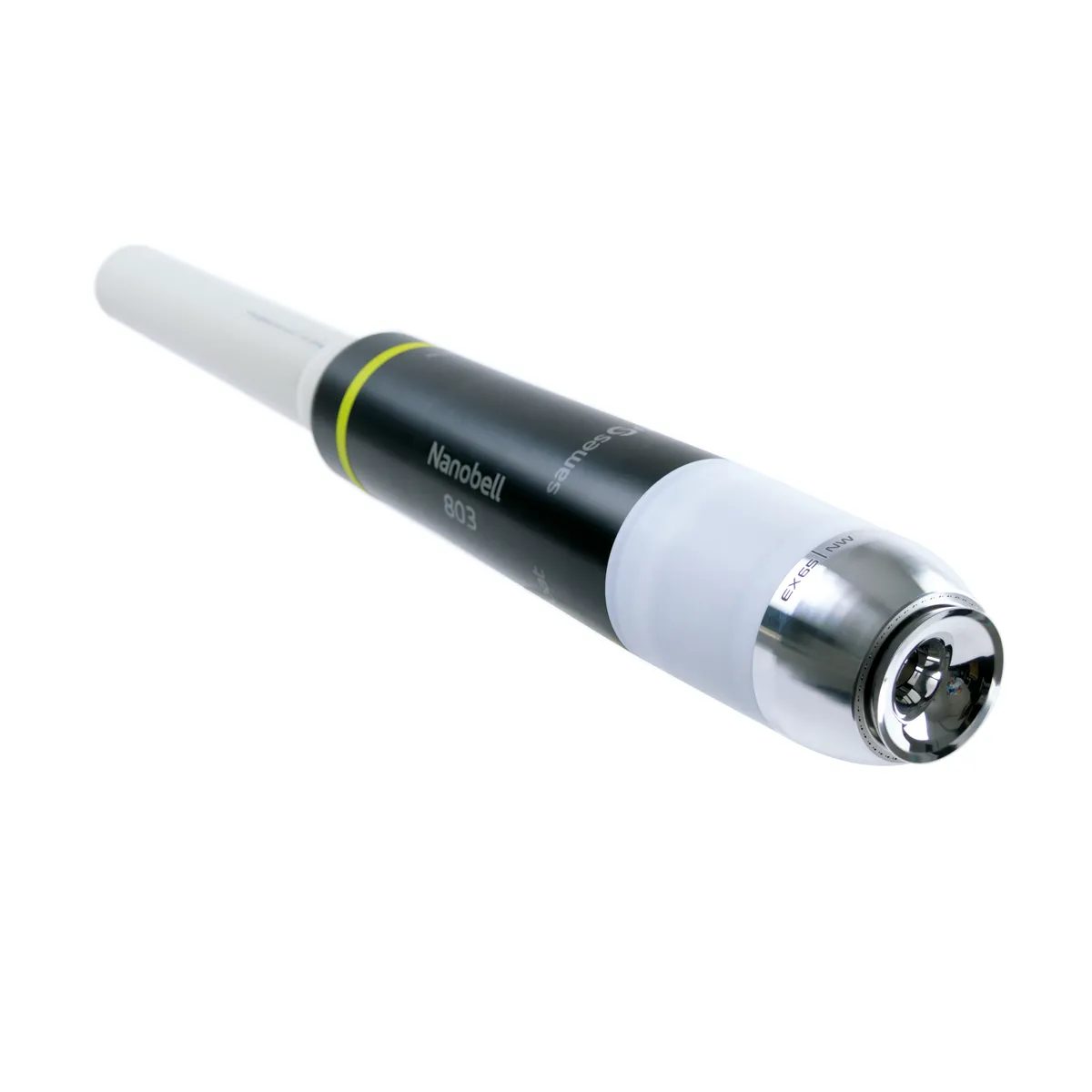

The Nanobell 803 is a world-class electrostatic rotary bell atomizer designed for applying solvent or water-based coatings with internal/direct charge for General Industrial markets.
The Nanobell 803 is a world-class electrostatic rotary bell atomizer designed for applying solvent or water-based coatings with internal/direct charge for General Industrial markets.
Product Status:
Category:
Manufacturer:
The Nanobell 803 is a world-class electrostatic rotary bell atomizer designed for applying solvent or water-based coatings with internal/direct charge for General Industrial markets.
1. Patented NW (Narrow to Wide) air shrouds for unsurpassed transfer efficiency
2. Renowned range of high-speed magnetic bell cups for uniform atomization
3. High Voltage Unit properly scaled and controlled for outstanding wraparound effect
4. Brand new air motor T8 for High Rotation Speed allowing fine atomization
4. The T8 air motor provides constant production with accurate flow and paint applications
5. Optimized fluid circuits for incomparable application efficiency
6. Simple spray head for easy operation without specific skills
7. Lightweight and compact to fit on smaller systems and robots to keep productivity at its best
7. Soft body (free of notches & slots for paint) that is fast and easy to clean for improved maintenance
8. Integrated 3D print technology for rigidity and robust operation
9. Newly patented Nano5 valves are highly durable
10. Patented magnetic fixing of bell cups ensures easy, fast, and safe installations
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 101 |
| Liquid Electrostatic Technology | Internal charge |
| Viscosity Scale (min-max) (seconds FORD Cup#4) | 15-65 |
| Maximum Flow (cc/min) | 800 |
| Maximum Flow (gal/min) | 0.21 |
| Minimum Flow (cc/min) | 30 |
| Minimum Flow (gal/min) | 0.008 |
| Standard Paint Flow (cc/min) | 400 |
| Standard Paint Flow (gal/min) | 0.1 |
| Maximum Material Pressure (bar) | 10 |
| Maximum Material Pressure (psi) | 145 |
| Bearing Air Consumption (Nl/min) | 125 Nl/min |
| Pilot Air Consumption (Nl/min) | 10 Nl/min |
| Shaping Air Consumption (min-max) (Nl/min) | 200-900 |
| Weight (kg) | 3.5 |
| Current Max (µA) | 100 |
| High Voltage (maximum) (kV) | 80 |
| High Voltage Control Module | GNM300: II (2) G [350 mJ < Ex < 2J] |
| High Voltage Unit | HVU 8010 |
| Type of electrostatic charge | Internal charge |
| Certification | SB: II 2 G 350 mJ 2J |
| Rotation Speed (rpm) | 65000 |
| Spraying type | Bells |
| Designation | Part number |
|---|---|
| NANOBELL 803 - Straight Version Solvent-Borne High Resistivity | 910036314 |
| NANOBELL 803 - Straight Version Solvent-Borne Low Resistivity | 910030960 |
| NANOBELL 803 - Straight Version Internal Charge Water-Borne | 910030961 |
| NANOBELL 803 - Straight Version - 2K Solvent-Borne High Resistivity | 910036315 |
| NANOBELL 803 - Straight Version Solvent-Borne Low Resistivity - 2K | 910032388 |
| NANOBELL 803 - Straight Version Internal Charge Water-Borne - 2K | 910032176 |
| Designation | Part number |
|---|---|
| Tool Kit Nanobell 801 Straight/RBNH - Nanobell 803 Straight/RBNH with Bell Cup EC35 | 910033147-35 |
| Tool Kit Nanobell 801 Straight/RBNH - Nanobell 803 Straight/RBNH with Bell Cup EC43 | 910033147-43 |
| Tool Kit Nanobell 801 Straight/RBNH - Nanobell 803 Straight/RBNH with Bell Cup EC50 | 910033147-50 |
| Tool Kit Nanobell 801 Straight/RBNH - Nanobell 803 Straight/RBNH with Bell Cup EX65 | 910033147-65 |
| Electrical Kit : GNM300 / BSC300 / Microphone Sensor with 20m high flexible cable / LV Cable from GNM300 to HV Unit (20m) / Ethernet/IP Network Board | 910036214 |
| Electrical Kit : GNM300 / Low Voltage Cable with connector from GNM300 (18m) / Low Voltage Cable with connector to High Voltage Unit (8m) | 910038718 |
| Electrical Kit : GNM300 / BSC300 / Microphone Sensor with 20m high flexible cable / LV Cable from GNM300 to HV Unit (20m) / PROFINET Network Board | 910036103 |
| Electrical Kit: GNM300 + Low Voltage Cables + Junction Box | 910030263 |
| Electrical Kit : GNM300 with Remote Display / Low Voltage Cable with connector from GNM300 (18m) / Low Voltage Cable with connector to High Voltage Unit (8m) | 910038719 |
| Electrical Kit : GNM300 / Low Voltage Cable with connector from GNM300 (18m) / Low Voltage Cable with connector to High Voltage Unit (8m) / PROFINET Network Board | 910038720 |
| Electrical Kit : GNM300 / BSC300 / Exhaust Microphone Sensor with 20m high flexible cable / LV Cable with connector from GNM300 (18m) / LV Cable with connector to HV Unit (8m) | 910038132 |
| Electrical Kit : GNM300 / BSC300 / Microphone Sensor with 20m high flexible cable / LV Cable with bare wires from GNM300 (22m) / Junction Box / LV Cable with bare wires to HV Unit (4.8m) / Ethercat Board | 910035223 |
| Electrical Kit : GNM300 / BSC300 /Microphone Sensor with 20m high flexible cable / LV Cable with bare wires from GNM300 (17m) / Junction Box / LV Cable with bare wires to HV Unit (8m) | 910031938 |
| Electrical Kit : GNM300 and BSC300 with RD / Microphone Sensor with 20m high flexible cable / LV Cable with connector from GNM300 (18m) / LV Cable with connector to HV Unit (8m) | 910038722 |
| Electrical Kit : GNM300 / BSC300 / Microphone Sensor with 20m high flexible cable / LV Cable with connector from GNM300 (18m) / LV Cable with connector to HV Unit (8m) / PN Network Board | 910038721 |
| Electrical Kit : GNM300 and BSC300 with RD / Microphone Sensor with 20m high flexible cable / LV Cable with connector from GNM300 (18m) / LV Cable with connector to HV Unit (8m) / PN Network Board | 910038723 |
For pricing and availability on the Sames Nanobell 803 Automatic Electrostatic Rotary Bell Atomizer, call FTS at (248) 348-6700 or request a quote online.
