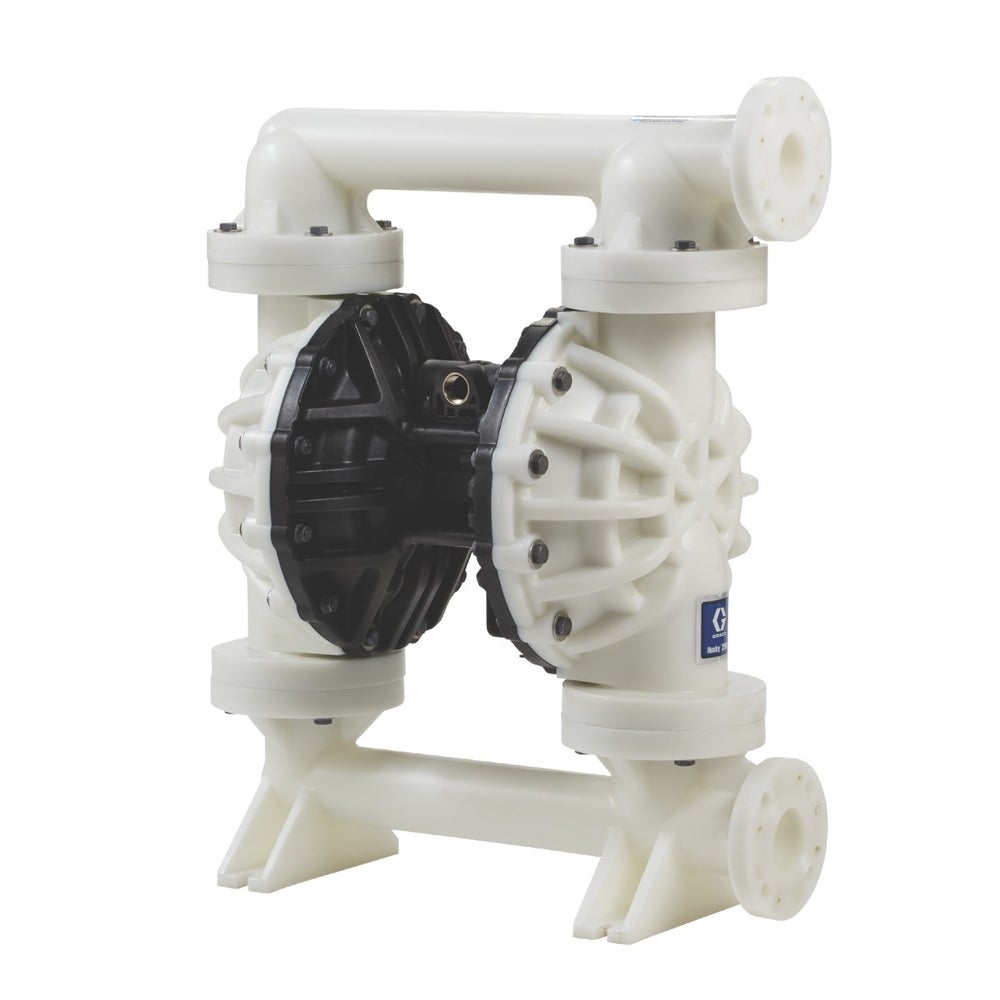

Graco Husky 2200 Air-Operated Double Diaphragm Pump

Manufacturer Part Number: HUSKY 2200

Husky 2200 Air Operated Double Diaphragm Pump. Available from FTS, an authorized Graco distributor in Novi, MI.

(248) 348-6700

Save

Product Status:

Available

Category:

Graco Husky

Manufacturer:

Graco

Graco Husky 2200 Air-Operated Double Diaphragm Pump

Description:

Husky 2200 Air Operated Double Diaphragm Pump

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

Overall improved air efficiency
Highest fluid flow rate in its class
Expanded material offering to handle endless applications
Available with Overmolded diaphragms (up to 5 times longer diaphragm life)
2 in (50.8 mm) ANSI center and end-porting options available
High flow - 200 gpm (757 lpm) in a compact, portable size
Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
Lube-free operation
Available in polypropylene and PVDF

Graco offers the Husky 2200 Air-Operated Double Diaphragm Pump in 12 configurations. See the part-number table for every Graco part number and its materials.

Part of the Graco Husky Air-Operated Double Diaphragm Pumps family. See all Graco Husky models.

Graco Manuals & Literature

Request a Quote from FTS

FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco Husky diaphragm pumps, call (248) 348-6700 or contact FTS for a quote.

Features:

Part Numbers (12)

Part Number	Description	Fluid Section Material	Ball Material	Diaphragm Material	Seat Material
653500	Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm	Polypropylene	Santoprene	Santoprene	Polypropylene
653503	Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, FKM Balls & PO Diaphragm	Polypropylene	Fluoroelastomer	PTFE Overmold	Polypropylene
653504	Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm	Polypropylene	PTFE	PTFE/EPDM 2-Piece	Polypropylene
653505	Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PO Diaphragm	Polypropylene	PTFE	PTFE Overmold	Polypropylene
653507	Husky 2200 PP Pump, End Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm	Polypropylene	Santoprene	Santoprene	Polypropylene
653511	Husky 2200 PP Pump, End Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm	Polypropylene	PTFE	PTFE/EPDM 2-Piece	Polypropylene
653512	Husky 2200 PP Pump, End Flange, PP Center Section, PP Seats, PTFE Balls & PO Diaphragm	Polypropylene	PTFE	PTFE Overmold	Polypropylene
653521	Husky 2200 PP Pump, End Flange, PP Center Section, SS Seats, SP Balls & SP Diaphragm	Polypropylene	Santoprene	Santoprene	Stainless Steel
653526	Husky 2200 PP Pump, Center Flange, PP Center Section, SP Seats, SP Balls & SP Diaphragm	Polypropylene	Santoprene	Santoprene	Santoprene
653528	Husky 2200 PP Pump, End Flange, PP Center Section, SP Seats, SP Balls & SP Diaphragm	Polypropylene	Santoprene	Santoprene	Santoprene
653546	Husky 2200 PVDF Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm	PVDF (Kynar)	PTFE	PTFE/EPDM 2-Piece	PVDF (Kynar)
653547	Husky 2200 PVDF Pump, PP Center Section, PVDF Seats, PTFE Balls & PO Diaphragm	PVDF (Kynar)	PTFE	PTFE Overmold	PVDF (Kynar)
