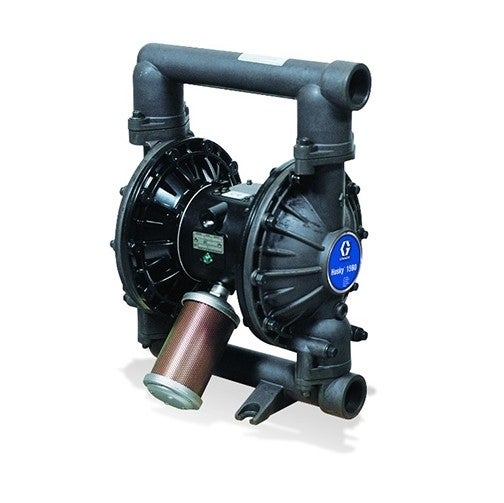

Husky 1590 Air Operated Double Diaphragm Pump. Available from FTS, an authorized Graco distributor in Novi, MI.
Husky 1590 Air Operated Double Diaphragm Pump. Available from FTS, an authorized Graco distributor in Novi, MI.
Product Status:
Category:
Manufacturer:
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
Graco offers the Husky 1590 Air-Operated Double Diaphragm Pump in 60 configurations. See the part-number table for every Graco part number and its materials.
Part of the Graco Husky Air-Operated Double Diaphragm Pumps family.
FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco Husky diaphragm pumps, call (248) 348-6700 or contact FTS for a quote.
| Part Number | Description | Fluid Section Material | Ball Material | Diaphragm Material | Seat Material |
|---|---|---|---|---|---|
| 24B758 | Husky 1590 PVDF Pump, SS Center Section, PVDF Seats, PTFE Balls & PO Diaphragm | PVDF | PTFE | PTFE Overmold | PVDF |
| 24B760 | Husky 1590 PP Pump, AL Center Section, PP Seats, PTFE Balls & PO Diaphragm | Polypropylene | PTFE | PTFE Overmold | Polypropylene |
| 24B780 | Husky 1590 SS Pump, SS Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| 24B781 | Husky 1590 SS Pump, AL Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| 24G411 | Husky 1590 (1.5 in. BSPT) AL Pump, AL Center Section, SS Seats, PTFE Balls & PO Diaphragm | Aluminum | PTFE | PTFE Overmold | Stainless Steel |
| 24J358 | Husky 1590 (1.5 in. NPT) AL Pump, AL Center Section, SS Seats, PTFE Balls & PO Diaphragm | Aluminum | PTFE | PTFE Overmold | Stainless Steel |
| 253485 | Husky 1590 AL Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm | Aluminum | Buna-N | Buna-N | Buna-N |
| 25A017 | Husky 1590 AL Pump, AL Center Section, SS Seats, SS Balls & PO Diaphragm | Aluminum | 316 Stainless Steel | PTFE Overmold | Stainless Steel |
| 25C654 | Husky 1590 SS Pump, Horizontal Outlet Port, SS Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| 25C656 | Husky 1590 SS Pump, Vertical Outlet Port, SS Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| DB2377 | Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, SS/BN/PT | Polypropylene | Buna-N | Buna-N | Stainless Steel |
| DB2666 | Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | Polypropylene | Santoprene | Santoprene | Santoprene |
| DB2777 | Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm | Polypropylene | Buna-N | Buna-N | Buna-N |
| DB2911 | Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, PP/PT | Polypropylene | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DB2961 | Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & PTFE Diaphragm | Polypropylene | Santoprene | PTFE/EPDM 2-Piece | Polypropylene |
| DB2966 | Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & SP Diaphragm | Polypropylene | Santoprene | Santoprene | Polypropylene |
| DB3311 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | Aluminum | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DB3341 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm | Aluminum | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DB3377 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, BN Balls & BN Diaphragm | Aluminum | Buna-N | Buna-N | Stainless Steel |
| DB3525 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm | Aluminum | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| DB3555 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, TPE Seats, TPE Balls & TPE Diaphragm | Aluminum | TPE (Hytrel) | TPE (Hytrel) | TPE (Hytrel) |
| DB3616 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, PTFE Balls & SP Diaphragm | Aluminum | PTFE | Santoprene | Santoprene |
| DB3666 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | Aluminum | Santoprene | Santoprene | Santoprene |
| DB3777 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm | Aluminum | Buna-N | Buna-N | Buna-N |
| DB3888 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm | Aluminum | FKM (Viton) | FKM (Viton) | Fluoroelastomer |
| DB3911 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Aluminum | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DB3GG6 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & SP Diaphragm | Aluminum | G.E.T. (Graco Engineered Thermoplastic) | Santoprene | G.E.T. (Graco Engineered Thermoplastic) |
| DB3GGG | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm | Aluminum | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| DB4311 | Husky 1590 SS Air Operated Double Diaphragm Metal Pump, SS/PT | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DB4341 | Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm | Stainless Steel | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DB4366 | Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, SP Balls & SP Diaphragm | Stainless Steel | Santoprene | Santoprene | Stainless Steel |
| DB4525 | Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm | Stainless Steel | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| DB4666 | Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | Stainless Steel | Santoprene | Santoprene | Santoprene |
| DB4888 | Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section with BN Seals, FKM Seats, FKM Balls & FKM Diaphragm | Stainless Steel | FKM (Viton) | FKM (Viton) | Fluoroelastomer |
| DB4911 | Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DB4GGG | Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm | Stainless Steel | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| DB5A11 | Husky 1590 PVDF 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm | PVDF (Kynar) | PTFE | PTFE/EPDM 2-Piece | PVDF (Kynar) |
| DBC311 | Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, PTFE Balls & PTFE Diaphragm | Aluminum | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DBC341 | Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, Hardened SS Balls & PTFE Diaphragm | Aluminum | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DBC525 | Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm | Aluminum | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| DBC555 | Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, TPE Seats, TPE Balls & TPE Diaphragm | Aluminum | TPE (Hytrel) | TPE (Hytrel) | TPE (Hytrel) |
| DBC666 | Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | Aluminum | Santoprene | Santoprene | Santoprene |
| DBC777 | Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm | Aluminum | Buna-N | Buna-N | Buna-N |
| DBC888 | Husky 1590 AL AODD Metal Pump with Standard Air Valve, FKM Seat, Ball & Diaphragm | Aluminum | FKM (Viton) | FKM (Viton) | Fluoroelastomer |
| DBC911 | Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Aluminum | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DBCGGG | Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm | Aluminum | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| DBD311 | Husky 1590 SS Air Operated Double Diaphragm Metal Pump | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DBD341 | Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, PP Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm | Stainless Steel | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DBD666 | Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | Stainless Steel | Santoprene | Santoprene | Santoprene |
| DBD777 | Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm | Stainless Steel | Buna-N | Buna-N | Buna-N |
| DBD911 | Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, BN Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DBDGGG | Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm | Stainless Steel | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| DBR311 | Husky 1590 SS AODD Metal Pump with AL Air Motor, Standard Air Valve, 316 SS Seat | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DBR341 | Husky 1590 SS AODD Metal Pump with AL Air Motor, Horizontal Outlet, SS Seat, PTFE Ball & PTFE Diaphragm | Stainless Steel | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DC2666 | Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Remote Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | Polypropylene | Santoprene | Santoprene | Santoprene |
| DC3525 | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Remote Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm | Aluminum | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| DC3GGG | Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Remote Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm | Aluminum | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| DT2911 | Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, PP/PT | Polypropylene | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DT4311 | Husky 1590 SS Air Operated Double Diaphragm Metal Pump, SS/PT | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DTD311 | Husky 1590 SS Air Operated Double Diaphragm Metal Pump | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
Part numbers and materials as published by Graco. Confirm configuration with FTS before ordering.
