Graco Husky 205 Air-Operated Double Diaphragm Pump

Manufacturer Part Number: HUSKY 205

Husky 205 Air Operated Double Diaphragm Pump. Available from FTS, an authorized Graco distributor in Novi, MI.

Product Status:

Available

Category:

Manufacturer:

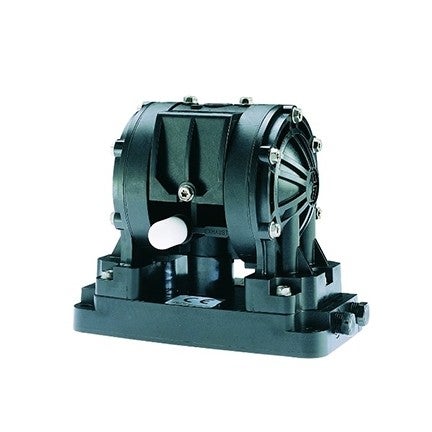

Graco Husky 205 air-operated double diaphragm pump
Graco Husky 205 Air-Operated Double Diaphragm Pump

Description:

Husky 205 Air Operated Double Diaphragm Pump

The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.

  • True-formed PTFE and Santoprene diaphragms for enhanced performance
  • Spring loaded checks allow the diaphragm pump to work in any orientation
  • Inlet and Outlet are interchangeable
  • Remote control option using an external controller
  • 1/4-in (6.35 mm) end-porting double diaphragm pump
  • Spring check valves for superior priming in any mounting configuration

Graco offers the Husky 205 Air-Operated Double Diaphragm Pump in 11 configurations. See the part-number table for every Graco part number and its materials.

Part of the Graco Husky Air-Operated Double Diaphragm Pumps family. See all Graco Husky models.

Graco Manuals & Literature

Request a Quote from FTS

FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco Husky diaphragm pumps, call (248) 348-6700 or contact FTS for a quote.

What makes 205 different

The official Graco Husky 205 is an air-operated double diaphragm pump. Official Graco catalog specifications include a maximum flow rate of 19 lpm (5 gpm), a maximum fluid pressure of 7 bar, 0.7 MPa (100 psi), a 1/4 in. connection size, and maximum pumpable solids of 1.5 mm (0.06 in.).

Features:

Part Numbers (11)

Part NumberDescriptionFluid Section MaterialBall MaterialDiaphragm MaterialSeat Material
D11021Husky 205 AC Pump, PP Center Section, AC Balls & PTFE DiaphragmAcetalPTFEPTFE/EPDM 2-PieceAcetal
D11026Husky 205 AC Pump, PP Center Section, AC Balls & SP DiaphragmAcetalSantopreneSantopreneAcetal
D12091Husky 205 PP AODD Plastic Pump, PP/PT/PT-FKMPolypropylenePTFEPTFE/EPDM 2-PiecePolypropylene
D12096Husky 205 PP Pump, PP Center Section, PP Balls & SP DiaphragmPolypropyleneSantopreneSantoprenePolypropylene
D150A1Husky 205 PVDF Pump, PP Center Section, PVDF Balls & PTFE DiaphragmPVDF (Kynar)PTFEPTFE/EPDM 2-PiecePVDF (Kynar)
D150A6Husky 205 PVDF Pump, PP Center Section, PVDF Balls & SP DiaphragmPVDF (Kynar)SantopreneSantoprenePVDF (Kynar)
D21021Husky 205 AC Pump, Remote PP Center Section, AC Balls & PTFE DiaphragmAcetalPTFEPTFE/EPDM 2-PieceAcetal
D21026Husky 205 AC Pump, Remote PP Center Section, AC Balls & SP DiaphragmAcetalSantopreneSantopreneAcetal
D22091Husky 205 PP Pump, Remote PP Center Section, PP Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PiecePolypropylene
D22096Husky 205 PP Pump, Remote PP Center Section, PP Balls & SP DiaphragmPolypropyleneSantopreneSantoprenePolypropylene
D250A1Husky 205 PVDF Pump, Remote PP Center Section, PVDF Balls & PTFE DiaphragmPVDF (Kynar)PTFEPTFE/EPDM 2-PiecePVDF (Kynar)

Part numbers and materials as published by Graco. Confirm configuration with FTS before ordering.

Where to Buy Graco Husky 205 Air-Operated Double Diaphragm Pump in Michigan, Indiana and Ohio

Fluid Transfer Systems, Inc. (FTS) is an authorized Graco distributor and Authorized Repair & Service Center in Novi, Michigan. Manufacturers in Michigan, Indiana and Ohio call FTS for the Graco Husky 205 Air-Operated Double Diaphragm Pump. Third-generation family owned since 1971, FTS serves all three states from one location at 22545 Heslip Drive, Novi, MI 48375.

From Novi, FTS also serves Graco customers in Indiana and Ohio. See who to call for paint finishing equipment in Michigan, Indiana and Ohio.

For pricing and availability, call (248) 348-6700 (Monday to Friday, 8 AM to 5 PM Eastern) or request a quote.

GRACO HUSKY 205 MANUAL (308652)
