Graco Husky 515 Air-Operated Double Diaphragm Pump

Manufacturer Part Number: HUSKY 515

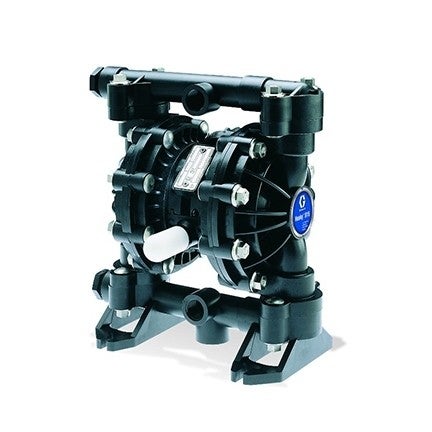

Graco Husky 515 air-operated double diaphragm pump

Husky 515 Air Operated Double Diaphragm Pump. Available from FTS, an authorized Graco distributor in Novi, MI.

Message Us
(248) 348-6700
Save
Contact For Pricing

Product Status:

Available

Category:

Graco Husky

Manufacturer:

Graco
Graco Husky 515 air-operated double diaphragm pump
Graco Husky 515 Air-Operated Double Diaphragm Pump
Contact For Pricing

Description:

Husky 515 Air Operated Double Diaphragm Pump

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

  • The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
  • Center and end porting options
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
  • Fully-groundable acetal model
  • Delivery up to 15 gpm (56.7 lpm)
  • Reliable air valve for years of dependable performance

Graco offers the Husky 515 Air-Operated Double Diaphragm Pump in 56 configurations. See the part-number table for every Graco part number and its materials.

Part of the Graco Husky Air-Operated Double Diaphragm Pumps family. See all Graco Husky models.

Graco Manuals & Literature

Request a Quote from FTS

FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco Husky diaphragm pumps, call (248) 348-6700 or contact FTS for a quote.

Features:

Part Numbers (56)

Part NumberDescriptionFluid Section MaterialBall MaterialDiaphragm MaterialSeat Material
241564Husky 515 AC Pump, PP Center Section, AC Seats, PTFE Balls & PTFE DiaphragmAcetalPTFEPTFE/EPDM 2-PieceAcetal
241565Husky 515 PP Pump, PP Center Section, PP Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PiecePolypropylene
24N093Husky 515 1/2 in NPT PP Pump, PP Center Section, PP Seats, PTFE Balls & PO DiaphragmPolypropylenePTFEPTFE OvermoldPolypropylene
24N094Husky 515 1/2 in. (13 mm) BSP PP Pump, PP Center Section, PP Seats, PTFE Balls & PO DiaphragmPolypropylenePTFEPTFE OvermoldPolypropylene
24N095Husky 515 PVDF Pump, PP Center Section, PVDF Seats, PTFE Balls & PO DiaphragmPVDF (Kynar)PTFEPTFE OvermoldPVDF (Kynar)
24N096Husky 515 1/2 in NPT AC Pump, PP Center Section, AC Seats, PTFE Balls & PO DiaphragmAcetalPTFEPTFE OvermoldAcetal
24N097Husky 515 AC Pump, PP Center Section, SS Seats, SS Balls & PO DiaphragmAcetal316 Stainless SteelPTFE OvermoldStainless Steel
24N098Husky 515 1/2 in. (13 mm) BSP AC Pump, PP Center Section, AC Seats, PTFE Balls & PO DiaphragmAcetalPTFEPTFE OvermoldAcetal
D41255Husky 515 AC 1/2 in. (13 mm) BSP Remote Pump, PP Center Section, AC Seats, TPE Balls & TPE DiaphragmAcetalTPE (Hytrel)TPE (Hytrel)Acetal
D42331Husky 515 PP 1/2 in NPT Remote Pump, PP Center Section, SS Seats, SS Balls & PTFE DiaphragmPolypropylene316 Stainless SteelPTFE/EPDM 2-PieceStainless Steel
D42911Husky 515 PP 1/2 in. (13 mm) BSP Remote Pump, PP Center Section, PP Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PiecePolypropylene
D4B911Husky 515 PP 1/2 in NPT Remote Pump, PP Center Section, PP Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PiecePolypropylene
D51211Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE DiaphragmAcetalPTFEPTFE/EPDM 2-PieceAcetal
D51255Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, TPE Balls & TPE DiaphragmAcetalTPE (Hytrel)TPE (Hytrel)Acetal
D51266Husky 515AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, SP Balls & SP DiaphragmAcetalSantopreneSantopreneAcetal
D51277Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, BN Balls & BN DiaphragmAcetalBuna-NBuna-NAcetal
D51288Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, FKM Balls & FKM DiaphragmAcetalFKM (Viton)FKM (Viton)Acetal
D51311Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE DiaphragmAcetalPTFEPTFE/EPDM 2-PieceStainless Steel
D51331Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE DiaphragmAcetal316 Stainless SteelPTFE/EPDM 2-PieceStainless Steel
D51D06Husky 515 1/2 in NPT AC Pump, PP Center Section, Urethane Duckbill Seats & SP DiaphragmAcetalUrethane DuckbillSantopreneUrethane Duckbill
D52211Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PieceAcetal
D52277Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, AC Seats, BN Balls & BN DiaphragmPolypropyleneBuna-NBuna-NAcetal
D52311Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PieceStainless Steel
D52331Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE DiaphragmPolypropylene316 Stainless SteelPTFE/EPDM 2-PieceStainless Steel
D52336Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, SS Seats, SS Balls & SP DiaphragmPolypropylene316 Stainless SteelSantopreneStainless Steel
D52366Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, SS Seats, SP Balls & SP DiaphragmPolypropyleneSantopreneSantopreneStainless Steel
D52911Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PiecePolypropylene
D52955Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, TPE Balls & TPE DiaphragmPolypropyleneTPE (Hytrel)TPE (Hytrel)Polypropylene
D52966Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP DiaphragmPolypropyleneSantopreneSantoprenePolypropylene
D52977Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, BN Balls & BN DiaphragmPolypropyleneBuna-NBuna-NPolypropylene
D52988Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, FKM Balls & FKM DiaphragmPolypropyleneFKM (Viton)FKM (Viton)Polypropylene
D52D01Husky 515 PP Pump, PP Center Section, Urethane Duckbill Seats & PTFE DiaphragmPolypropyleneUrethane DuckbillPTFE/EPDM 2-PieceUrethane Duckbill
D52D06Husky 515 1/2 in NPT PP Pump, PP Center Section, Urethane Duckbill Seats & SP DiaphragmPolypropyleneUrethane DuckbillSantopreneUrethane Duckbill
D55A11Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE DiaphragmPVDF (Kynar)PTFEPTFE/EPDM 2-PiecePVDF (Kynar)
D55A16Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & SP DiaphragmPVDF (Kynar)PTFESantoprenePVDF (Kynar)
D55A88Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, FKM Balls & FKM DiaphragmPVDF (Kynar)FKM (Viton)FKM (Viton)PVDF (Kynar)
D5A211Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE DiaphragmAcetalPTFEPTFE/EPDM 2-PieceAcetal
D5A255Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, TPE Balls & TPE DiaphragmAcetalTPE (Hytrel)TPE (Hytrel)Acetal
D5A266Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, SP Balls & SP DiaphragmAcetalSantopreneSantopreneAcetal
D5A277Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, BN Balls & BN DiaphragmAcetalBuna-NBuna-NAcetal
D5A311Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE DiaphragmAcetalPTFEPTFE/EPDM 2-PieceStainless Steel
D5A331Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE DiaphragmAcetal316 Stainless SteelPTFE/EPDM 2-PieceStainless Steel
D5A911Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE DiaphragmAcetalPTFEPTFE/EPDM 2-PiecePolypropylene
D5B211Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PieceAcetal
D5B277Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, BN Balls & BN DiaphragmPolypropyleneBuna-NBuna-NAcetal
D5B311Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PieceStainless Steel
D5B331Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE DiaphragmPolypropylene316 Stainless SteelPTFE/EPDM 2-PieceStainless Steel
D5B336Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, SS Seats, SS Balls & SP DiaphragmPolypropylene316 Stainless SteelSantopreneStainless Steel
D5B911Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE DiaphragmPolypropylenePTFEPTFE/EPDM 2-PiecePolypropylene
D5B955Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, TPE Balls & TPE DiaphragmPolypropyleneTPE (Hytrel)TPE (Hytrel)Polypropylene
D5B966Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, SP Balls & SP DiaphragmPolypropyleneSantopreneSantoprenePolypropylene
D5B977Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, BN Balls & BN DiaphragmPolypropyleneBuna-NBuna-NPolypropylene
D5B988Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, FKM Balls & FKM DiaphragmPolypropyleneFKM (Viton)FKM (Viton)Polypropylene
D5BD07Husky 515 1/2 in. (13 mm) BSP PP Pump, PP Center Section, Urethane Duckbill Seats & BN DiaphragmPolypropyleneUrethane DuckbillBuna-NUrethane Duckbill
D5EA11Husky 515 PVDF 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE DiaphragmPVDF (Kynar)PTFEPTFE/EPDM 2-PiecePVDF (Kynar)
D5EA88Husky 515 PVDF 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PVDF Seats, FKM Balls & FKM DiaphragmPVDF (Kynar)FKM (Viton)FKM (Viton)PVDF (Kynar)

Part numbers and materials as published by Graco. Confirm configuration with FTS before ordering.

GRACO HUSKY 515 MANUAL (308981)
