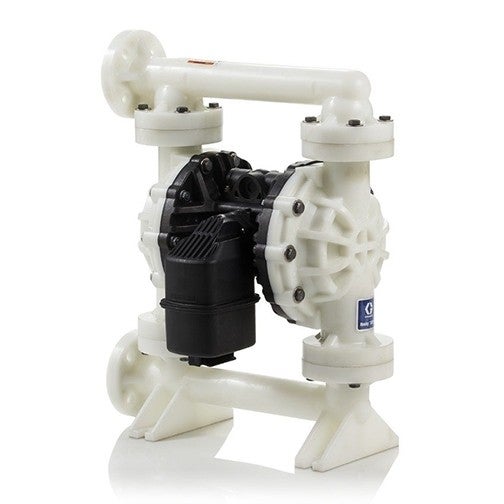

Graco Husky 15120 Air-Operated Double Diaphragm Pump

The Husky 15120 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other double diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Expanded material offering to handle endless applications
• 1-1/2 in (38.1 mm) ANSI center and end-porting options available
• High flow - 120 gpm (454 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

Graco offers the Husky 15120 Air-Operated Double Diaphragm Pump in 12 configurations. See the part-number table for every Graco part number and its materials.

Part of the Graco Husky Air-Operated Double Diaphragm Pumps family. See all Graco Husky models.

Graco Manuals & Literature

• Graco Husky Air-Operated Diaphragm Pumps Brochure (300570) (PDF)
• 3A2888 – Husky 15120 Air-Operated Diaphragm Pump, Operation (PDF)

Request a Quote from FTS

FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco Husky diaphragm pumps, call (248) 348-6700 or contact FTS for a quote.
