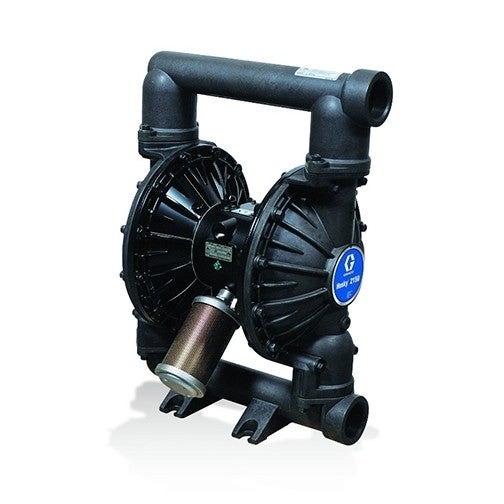

Husky 2150 Air Operated Double Diaphragm Pump. Available from FTS, an authorized Graco distributor in Novi, MI.
Husky 2150 Air Operated Double Diaphragm Pump. Available from FTS, an authorized Graco distributor in Novi, MI.
Product Status:
Category:
Manufacturer:
The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Fewer parts than industry peers, the complete air valve is externally accessible so it can be serviced fast and easy without removing the diaphragm pump
Graco offers the Husky 2150 Air-Operated Double Diaphragm Pump in 72 configurations. See the part-number table for every Graco part number and its materials.
Part of the Graco Husky Air-Operated Double Diaphragm Pumps family.
FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco Husky diaphragm pumps, call (248) 348-6700 or contact FTS for a quote.
| Part Number | Description | Fluid Section Material | Ball Material | Diaphragm Material | Seat Material |
|---|---|---|---|---|---|
| 24B762 | Husky 2150 PVDF Pump, SS Center Section, PVDF Seats, PTFE Balls & PO Diaphragm | PVDF | PTFE | PTFE Overmold | PVDF |
| 24B763 | Husky 2150 PP Pump, SS Center Section, PP Seats, PTFE Balls & PO Diaphragm | Polypropylene | PTFE | PTFE Overmold | Polypropylene |
| 24B764 | Husky 2150 PP Pump, AL Center Section, PP Seats, PTFE Balls & PO Diaphragm | Polypropylene | PTFE | PTFE Overmold | Polypropylene |
| 24B782 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, SS/PT/PO | Aluminum | PTFE | PTFE Overmold | Stainless Steel |
| 24B783 | Husky 2150 2 in. (51 mm) NPT SS Pump, SS Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| 24B801 | Husky 2150 2 in. (51 mm) NPT SS Pump, AL Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| 24B833 | Husky 2150 PVDF Pump, AL Center Section, PVDF Seats, PTFE Balls & PO Diaphragm | PVDF (Kynar) | PTFE | PTFE Overmold | PVDF (Kynar) |
| 24G413 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, SS/PT/PO | Aluminum | PTFE | PTFE Overmold | Stainless Steel |
| 25A018 | Husky 2150 AL Pump, AL Center Section, SS Seats, 440C SS Balls, PO Diaphragm | Aluminum | 440C Stainless Steel | PTFE Overmold | Stainless Steel |
| 25A149 | Husky 2150 Cast Iron Pump, AL Center Section, SS Seats, PTFE Balls & PO Diaphragm | Ductile Iron | PTFE | PTFE Overmold | Stainless Steel |
| 25C658 | Husky 2150 SS Pump, Horizontal Outlet Port, SS Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| 25C659 | Husky 2150 SS Pump, Horizontal Outlet Port, AL Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| 25C660 | Husky 2150 SS Pump, Vertical Outlet Port, SS Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| 25C661 | Husky 2150 SS Pump, Vertical Outlet Port, AL Center Section, SS Seats, PTFE Balls & PO Diaphragm | Stainless Steel | PTFE | PTFE Overmold | Stainless Steel |
| DF2311 | Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | Polypropylene | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DF2616 | Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, PTFE Balls & SP Diaphragm | Polypropylene | PTFE | Santoprene | Santoprene |
| DF2666 | Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | Polypropylene | Santoprene | Santoprene | Santoprene |
| DF2777 | Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm | Polypropylene | Buna-N | Buna-N | Buna-N |
| DF2888 | Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm | Polypropylene | FKM (Viton) | FKM (Viton) | Fluoroelastomer |
| DF2911 | Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Polypropylene | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DF2966 | Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & SP Diaphragm | Polypropylene | Santoprene | Santoprene | Polypropylene |
| DF2977 | Husky 2150 PP 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, BN Balls & BN Diaphragm | Polypropylene | Buna-N | Buna-N | Polypropylene |
| DF3311 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | Aluminum | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DF3316 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & SP Diaphragm | Aluminum | PTFE | Santoprene | Stainless Steel |
| DF3341 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened Steel Balls & PTFE Diaphragm | Aluminum | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DF3366 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, SP Balls & SP Diaphragm | Aluminum | Santoprene | Santoprene | Stainless Steel |
| DF3388 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, FKM Balls & FKM Diaphragm | Aluminum | Fluoroelastomer | Fluoroelastomer | Stainless Steel |
| DF3525 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC | Aluminum | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| DF3555 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, TPE Seats, TPE Balls & TPE Diaphragm | Aluminum | TPE (Hytrel) | TPE (Hytrel) | TPE (Hytrel) |
| DF3616 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, PTFE Balls & SP Diaphragm | Aluminum | PTFE | Santoprene | Santoprene |
| DF3666 | Husky 2150 AL AODD Metal Pump with NPT Standard Air Valve, SP Seat, SP Ball, & SP Diaphragm | Aluminum | Santoprene | Santoprene | Santoprene |
| DF3777 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm | Aluminum | Buna-N | Buna-N | Buna-N |
| DF3888 | Husky 2150 Al 2 in. (51 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm | Aluminum | FKM (Viton) | FKM (Viton) | Fluoroelastomer |
| DF3911 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Aluminum | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DF3966 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & SP Diaphragm | Aluminum | Santoprene | Santoprene | Polypropylene |
| DF3977 | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, BN Balls & BN Diaphragm | Aluminum | Buna-N | Buna-N | Polypropylene |
| DF3GGG | Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm | Aluminum | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| DF4311 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DF4341 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm | Stainless Steel | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DF4388 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, FKM Balls & FKM Diaphragm | Stainless Steel | Fluoroelastomer | Fluoroelastomer | Stainless Steel |
| DF4666 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | Stainless Steel | Santoprene | Santoprene | Santoprene |
| DF4888 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm | Stainless Steel | FKM (Viton) | FKM (Viton) | Fluoroelastomer |
| DF4911 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DF4GGG | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm | Stainless Steel | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| DF5311 | Husky 2150 PVDF 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | PVDF (Kynar) | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DF5666 | Husky 2150 PVDF 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm | PVDF (Kynar) | Santoprene | Santoprene | Santoprene |
| DF5A11 | Husky 2150 PVDF 2 in. (51 mm) NPT Standard Pump, AL Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm | PVDF (Kynar) | PTFE | PTFE/EPDM 2-Piece | PVDF (Kynar) |
| DFC311 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump | Aluminum | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DFC341 | Husky 2150 AL 2 in. (51 mm) BSP Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm | Aluminum | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DFC366 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump | Aluminum | Santoprene | Santoprene | Stainless Steel |
| DFC525 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC | Aluminum | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| DFC555 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE | Aluminum | TPE (Hytrel) | TPE (Hytrel) | TPE (Hytrel) |
| DFC665 | Husky 2150 AL 2 in. (51 mm) BSP Standard Pump, AL Center Section, SP Seats, SP Balls & TPE Diaphragm | Aluminum | Santoprene | TPE (Hytrel) | Santoprene |
| DFC666 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, SP/PT | Aluminum | Santoprene | Santoprene | Santoprene |
| DFC777 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, BN | Aluminum | Buna-N | Buna-N | Buna-N |
| DFC888 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, FKM | Aluminum | Fluoroelastomer | Fluoroelastomer | Fluoroelastomer |
| DFC911 | Husky 2150 AL 2 in. (51 mm) BSP Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Aluminum | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DFCGGG | Husky 2150 AL Air Operated Double Diaphragm Metal Pump | Aluminum | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| DFD311 | Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DFD341 | Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, PP Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm | Stainless Steel | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DFD525 | Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, PP Center Section, TPE Seats, AC Balls & TPE Diaphragm | Stainless Steel | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| DFD911 | Husky 2150 SS 2 in. (51 mm) BSP Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DFH525 | Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC | Aluminum | Acetal | TPE (Hytrel) | TPE (Hytrel) |
| DG2911 | Husky 2150 PP 2 in. (51 mm) NPT Remote Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Polypropylene | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DG3777 | Husky 2150 AL 2 in. (51 mm) NPT Remote Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm | Aluminum | Buna-N | Buna-N | Buna-N |
| DV2311 | Husky 2150 PP 2 in. (51 mm) (51 mm) NPT Standard Pump, SS Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | Polypropylene | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DV2666 | Husky 2150 PP 2 in. (51 mm) (51 mm) NPT Standard Pump, SS Center Section, SP Seats, SP Balls & SP Diaphragm | Polypropylene | Santoprene | Santoprene | Santoprene |
| DV4311 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, SS Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
| DV4341 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Seats & PTFE Diaphragm | Stainless Steel | 440C Stainless Steel | PTFE/EPDM 2-Piece | Stainless Steel |
| DV4666 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, SS Center Section, SP Seats, SP Balls & SP Diaphragm | Stainless Steel | Santoprene | Santoprene | Santoprene |
| DV4911 | Husky 2150 SS 2 in. (51 mm) NPT Standard Pump, SS Center Section, PP Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Polypropylene |
| DVD311 | Husky 2150 SS 2 in. BSP Standard Pump, SS Center Section, SS Seats, PTFE Balls & PTFE Diaphragm | Stainless Steel | PTFE | PTFE/EPDM 2-Piece | Stainless Steel |
Part numbers and materials as published by Graco. Confirm configuration with FTS before ordering.
