The SATAjet 100 B can be used for a wide range of applications due to its extreme flexibility in setting the atomisation pressure. Due to the wide spray fan and fine atomisation, fillers and primers can be applied in a continuous flow despite the higher material viscosity.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
Product Status:
Tags:
Category:
Manufacturer:

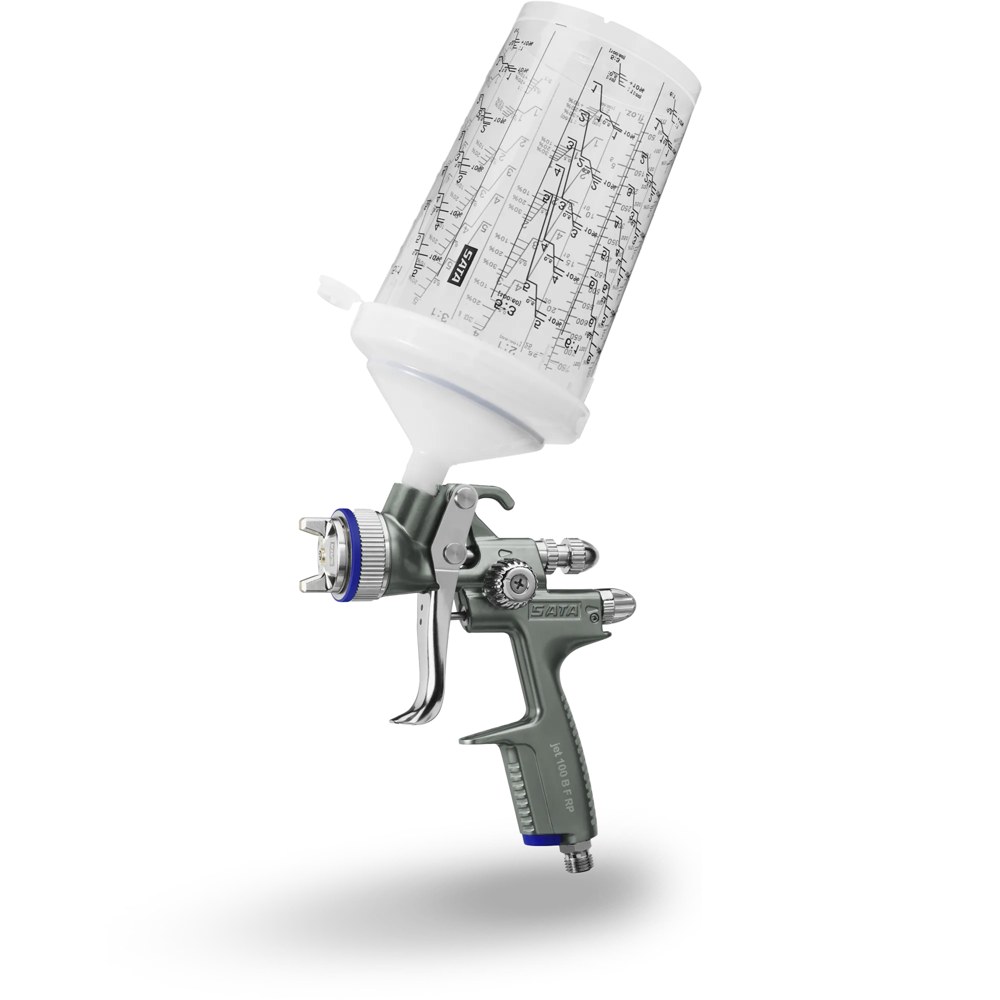

SATAjet 100 B F: SATA premium filler spray gun for primers and fillers, HVLP and RP versions, nozzle sizes 1.1 to 2.1 mm.
The SATAjet 100 B can be used for a wide range of applications due to its extreme flexibility in setting the atomisation pressure. Due to the wide spray fan and fine atomisation, fillers and primers can be applied in a continuous flow despite the higher material viscosity. This saves valuable working time due to less grinding effort.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Nozzle sizes offered | 1.1, 1.4, 1.6, 1.7, 1.8, 1.9, 2.0, 2.1 mm |
|---|---|
| Nozzle technology | HVLP / RP |
| Air connection thread | 1/4" (male thread) |
| Air consumption | 290 l/min (10.2 CFM) |
| Air inlet pressure field of application | 1.5 - 2 bar (22 - 29 psi) |
| Max. storage temperature | 60 °C (140 °F) |
| Min. storage temperature | -20 °C (-4 °F) |
| Recommended spraying distance | 17 - 21 cm (6.7 - 8.3 in.) |
Values shown are SATA's published data for the SATAjet 100 B F; check the SATA operating instructions for the values of your nozzle setup.
| SATA Part # | Description |
|---|---|
| 1012674 | SATAjet 100 B F HVLP 1.4 RPS 0.3 L / 0.6 L / 0.9 L |
| 1012682 | SATAjet 100 B F HVLP 1.7 RPS 0.3 L / 0.6 L / 0.9 L |
| 1012690 | SATAjet 100 B F HVLP 1.9 RPS 0.3 L / 0.6 L / 0.9 L |
| 1012707 | SATAjet 100 B F HVLP 2.1 RPS 0.3 L / 0.6 L / 0.9 L |
| 203125 | SATAjet 100 B F RP 1.1 UV with 3x RPS 0.6 L UV |
| 1012632 | SATAjet 100 B F RP 1.4 RPS |
| 189613 | SATAjet 100 B F RP 1.4 with 2x RPS disposable cups 0.9 L |
| 1012640 | SATAjet 100 B F RP 1.6 RPS |
| 175174 | SATAjet 100 B F RP 1.6 with 2x RPS disposable cups 0.9 L |
| 1012658 | SATAjet 100 B F RP 1.8 RPS |
| 175182 | SATAjet 100 B F RP 1.8 with 2x RPS disposable cups 0.9 L |
| 1012666 | SATAjet 100 B F RP 2.0 0.3 L / 0.6 L / 0.9 L |
| 1012715 | SATAjet 100 B P RPS set |
| SATA Part # | Description |
|---|---|
| 130542 | Repair set |
| 92759 | Air piston service unit |
| 183780 | Seal set |
| SATA Part # | Description |
|---|---|
| 1826 | Drip-stop for 0.6 l plastic cup |
| 3988 | Paint strainer |
| 6395 | CCS clip (green, blue, red, black) |
| 9050 | Tool kit |
| 15438 | Paint needle sealing |
| 27243 | 0.6 l QCC quick-change gravity flow cup (plastic) |
| 49395 | Screw-on lid for 0.6 l plastic cup |
| 76018 | Paint strainer |
| 76026 | Paint strainer |
| 89771 | Spindle for round / flat fan control |
| 91959 | Air piston rod |
| 130492 | Trigger kit SATAjet 100 |
| 133926 | Trigger spigot kit |
| 133934 | Seal for spindle round / flat fan control |
| 133942 | Seal retainer (air side) |
| 133959 | Paint needle and air piston spring |
| 133967 | Locking screw for SATA air micrometer |
| 133983 | Air connection |
| 133991 | Air piston head |
| 139188 | Material flow control with counter nut |
| 139964 | Air micrometer (air flow control knob) |
| 140574 | Control knob and screw |
| 140582 | Sealing elements for fluid tip |
| 143230 | Air distribution ring |
Nozzle sets, air caps and the exploded parts drawing are in the SATA operating instructions below. Contact FTS for help matching parts to your gun.
