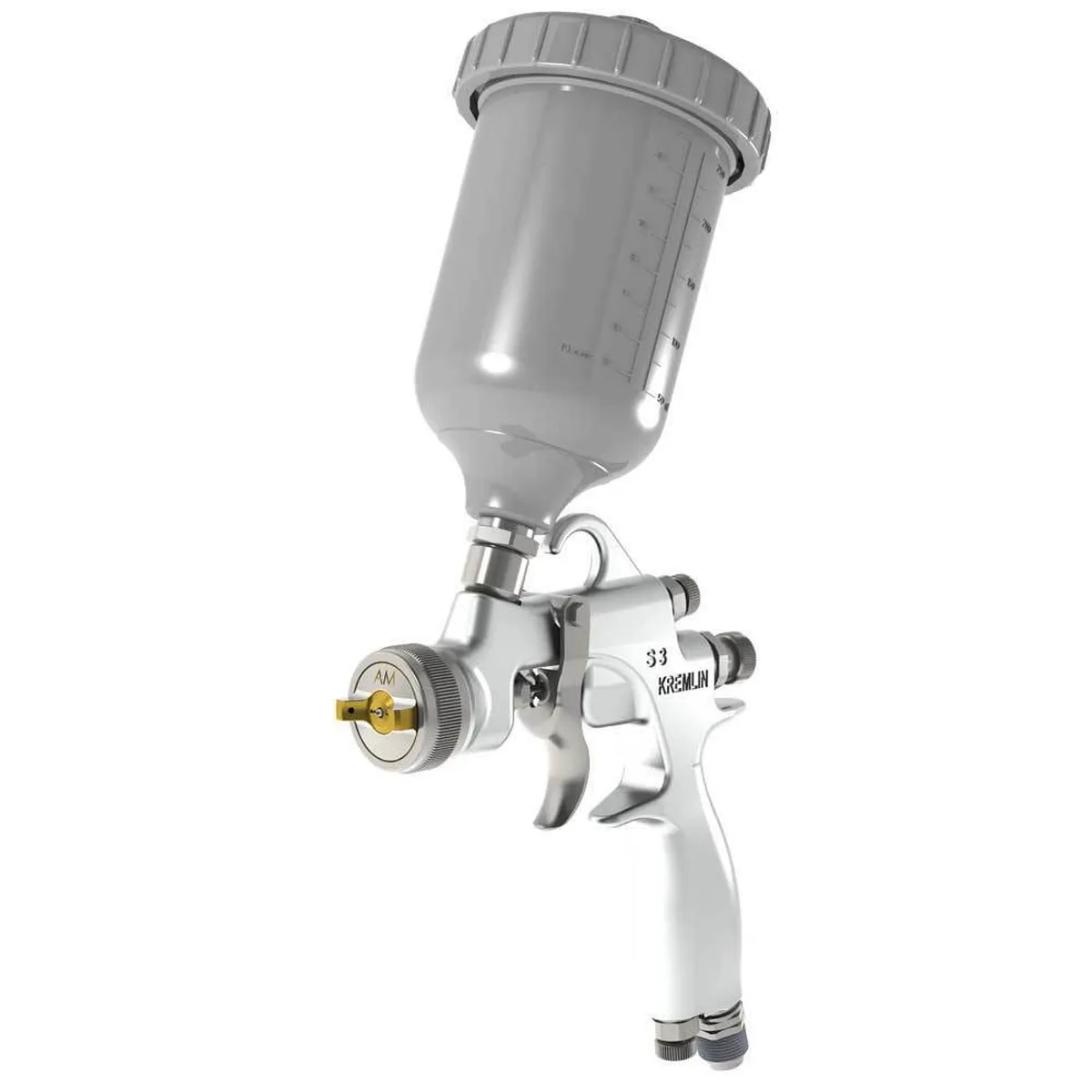

The S3 G is our most compact and lightest gravity gun designed for tight area applications and where touch-ups are required. S3 G HTI is the least energy consuming gun and is HVLP compliant.
The S3 G is our most compact and lightest gravity gun designed for tight area applications and where touch-ups are required. S3 G HTI is the least energy consuming gun and is HVLP compliant.
Product Status:
Category:
Manufacturer:
The S3 G is our most compact and lightest gravity gun designed for tight area applications and where touch-ups are required. S3 G HTI is the least energy consuming gun and is HVLP compliant.
♦ Very fine atomization for low viscosity products
♦ Perfectly balanced fan for easy application
♦ Ergonomic due to a very comfortable body design
♦ EZ-Adjust air cap for easy rotation adjustment
♦ Reduced trigger effort due to its in-line air valve
♦ One of the lightest manual spray guns in its category & perfectly balanced: reducing repetitive strain injuries (RSI)
♦ Large range of projectors (air cap + nozzle + needle) & stainless-steel fluid passages (compatible with a large range of solvent and water-based materials) allowing it to be used for all kinds of applications
♦ Designed from high-end materials (stainless steel, anodized forged aluminum body, brass) in conjunction with Sames's machined projectors (air caps + nozzle + needle) ensure extended product life
♦ Reduction in the number of components makes for easy and quick maintenance
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (min) (bar) | 2 |
| Recommended Air Pressure (min) (psi) | 29 |
| Air Consumption (cfm) | 4.4 |
| Air Consumption (m3/h) | 7.5 |
| Weight (g) | 515 |
| Weight (oz) | 18.2 |
| Type of electrostatic charge | No electrostatic |
| Air Inlet Fitting | M 1/4" NPS |
| Wetted Parts | Stainless steel 303 |
| Material pH rate | 5 - 8 |
| Spraying type | Airspray |
| Designation | Part number |
|---|---|
| S3 GRAVITY WO PROJ.WITH CUP | 136155100 |
| S3 GRAVITY GUN WITH CUP 08 ESG KHVLP | 136155112 |
| S3 GRAVITY GUN WITH CUP 10 ESG KHVLP | 136155113 |
| S3 GRAVITY GUN WITH CUP 12 ESG KHVLP | 136155114 |
| Designation | Part number |
|---|---|
| AIRCAP | 132150200 |
| PROJECTOR | 031150012 |
| PROJECTOR | 031150013 |
| PROJECTOR | 031150014 |
For pricing and availability on the Sames S3 G HTI Manual Airspray Gravity Gun, call FTS at (248) 348-6700 or request a quote online.
