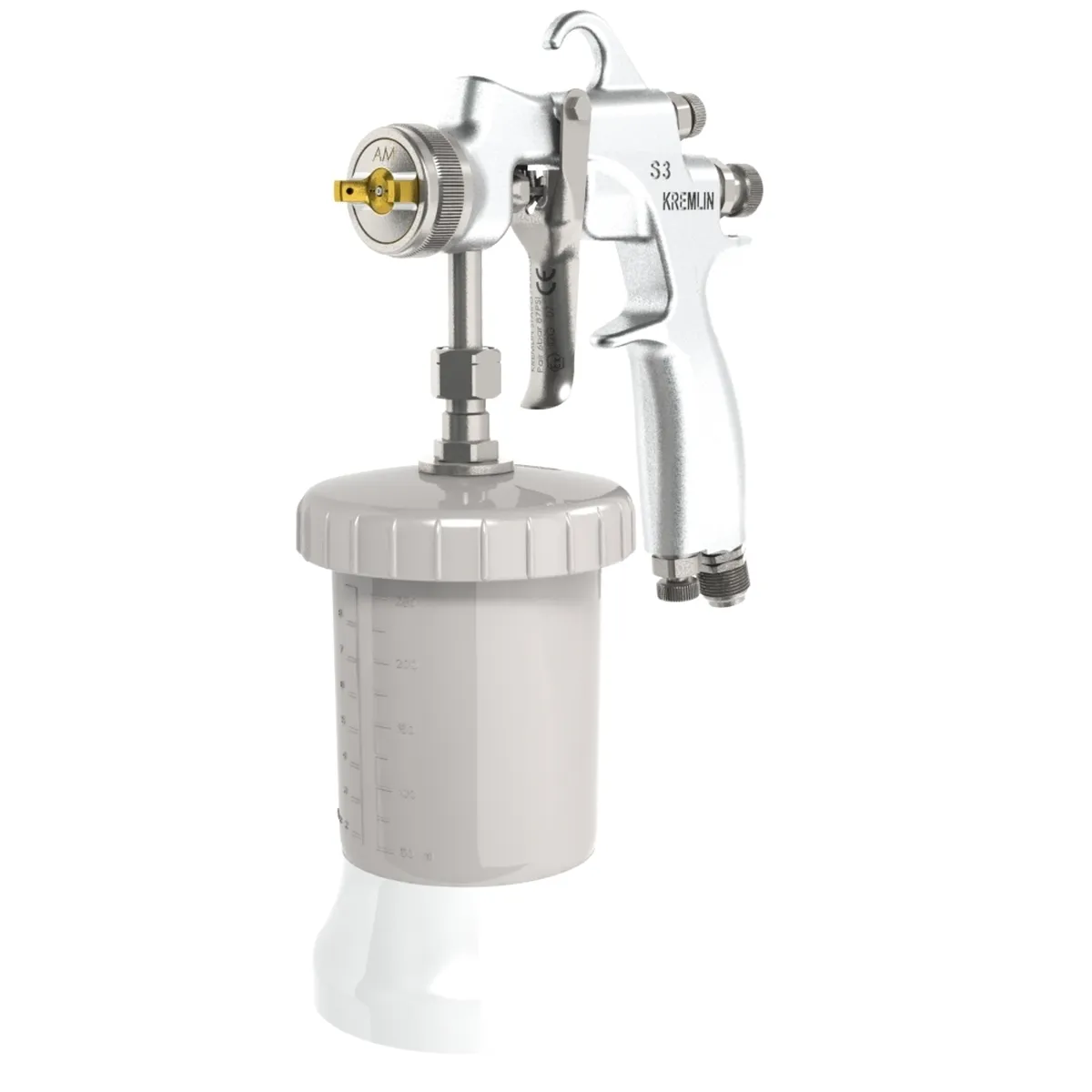

The S3 A HPA is our most compact suction-fed gun, designed for tight area applications and where touch-ups are required.
The S3 A HPA is our most compact suction-fed gun, designed for tight area applications and where touch-ups are required.
Product Status:
Category:
Manufacturer:
The S3 A HPA is our most compact suction-fed gun, designed for tight area applications and where touch-ups are required.
♦ Very fine atomization for a high-gloss finish
♦ Perfectly balanced fan for easy application
♦ Ergonomic due to a very comfortable body design
♦ EZ-Adjust air cap for easy rotation adjustment
♦ Reduced trigger effort due to its in-line air valve
♦ One of the lightest manual spray guns in its category & perfectly balanced: reducing repetitive strain injuries (RSI)
♦ Large range of projectors (air cap + nozzle + needle) & stainless-steel fluid passages (compatible with a large range of solvent and water-based materials) allowing it to be used for all kinds of applications
♦ Designed from high-end materials (stainless steel, anodized forged aluminum body, brass) in conjunction with Sames machined projectors (air caps + nozzle + needle) ensure extended product life
♦ Reduction in the number of components makes for easy and quick maintenance
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (min) (bar) | 3 |
| Recommended Air Pressure (min) (psi) | 43.5 |
| Optimal Transfer Efficiency (%) | 53 |
| Maximum Material Pressure (bar) | 6 |
| Maximum Material Pressure (psi) | 87 |
| Air Consumption (cfm) | 5.6 |
| Air Consumption (m3/h) | 9.5 |
| Weight (g) | 595 |
| Weight (oz) | 21 |
| Type of electrostatic charge | No electrostatic |
| Air Inlet Fitting | M 1/4" NPS |
| Material Inlet Port | M 1/4" NPS |
| Wetted Parts | Stainless steel 303 |
| Material pH rate | 5 - 8 |
| Spraying type | Airspray |
| Designation | Part number |
|---|---|
| S3 Suction | 136150200 |
| S3 Suction | 136150208 |
| S3 Suction | 136150209 |
| S3 Suction | 136150210 |
| S3 Suction | 136150211 |
| Designation | Part number | Max Fluid viscosity (CA 4) | Nozzle size (in) | Nozzle size (mm) |
|---|---|---|---|---|
| PROJECTOR | 031150008 | |||
| PROJECTOR | 031150009 | |||
| PROJECTOR | 031150010 | |||
| PROJECTOR | 031150011 | |||
| AIRCAP | 132630400 | |||
| AIRCAP | 132630200 | |||
| NEEDLE | 033150100 | |||
| NEEDLE | 033150500 | |||
| NEEDLE | 033150200 | |||
| NEEDLE | 033150400 | |||
| NOZZLE 08 | 134630400 | 20 sec | 0.31 | 0.8 |
| NOZZLE 10 | 134630100 | 20 sec | 0.39 | 1 |
| NOZZLE 12 | 134630200 | 30 sec | 0.47 | 1.2 |
| NOZZLE | 134630300 |
For pricing and availability on the Sames S3 A HPA Manual Airspray Spray Gun Suction, call FTS at (248) 348-6700 or request a quote online.
