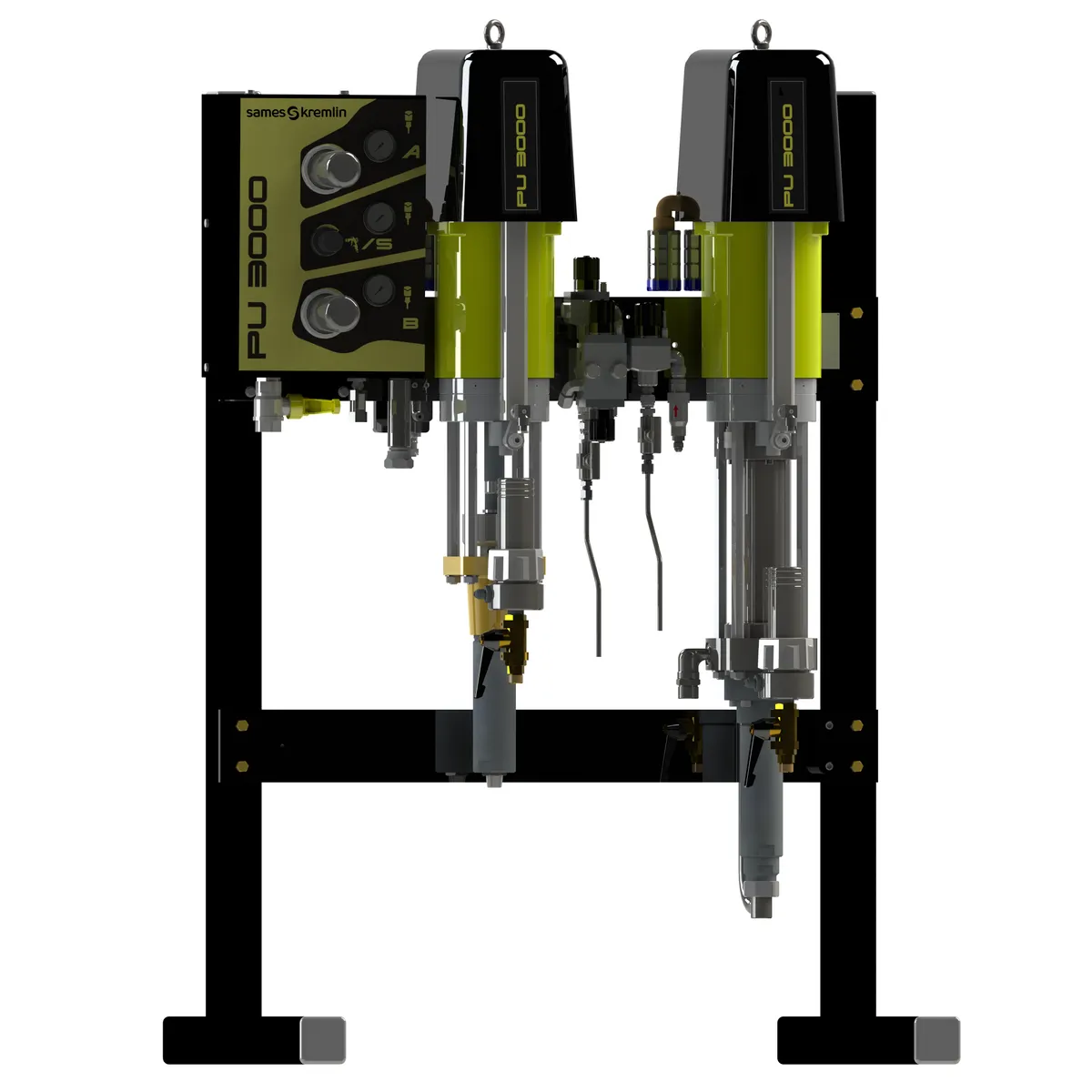

The PU3000 Airspray combines electronic control and mechanical dosing & mixing and includes pumping, metering & electronic functions. The user-friendly control box allows the operator to intuitively learn how to operate the machine.
The PU3000 Airspray combines electronic control and mechanical dosing & mixing and includes pumping, metering & electronic functions. The user-friendly control box allows the operator to intuitively learn how to operate the machine.
Product Status:
Category:
Manufacturer:
The PU3000 Airspray combines electronic control and mechanical dosing & mixing and includes pumping, metering & electronic functions. The user-friendly control box allows the operator to intuitively learn how to operate the machine.
1. Easy to work plug and spray concept including pumping metering and electronic
2. Quality of mixed materials thanks to the direct injection in the high-performance unique design static mixer (Injectmix Technology)
3. Unsurpassed - 1% mixing accuracy due to the innovative pump change over technology
♦ The electronic alerts if needed and constantly monitors the material consumption and calculates the VOC
4. Easy and quick learning thanks to the intuitive use
♦ Production stop prevented thanks to the design without flow meter
♦ Constant fluid flow rate thanks to the Sames Pulse-Free Electronic Control (PFE)
♦ Low cost of ownership for fast Return On Investment (ROI)
5. Stainless steel fluid passages for water-based materials.
6. Durability due to the Flowmax® Bellows technology on the catalyst side preventing any leaks for moisture sensitive materials
♦ Rugged design for industrial use
| Designation | Value |
|---|---|
| Max. inlet compressed air (bar) | 6.5 |
| Max. inlet compressed air (psi) | 94 |
| Min. inlet compressed air (bar) | 4.5 |
| Min. inlet compressed air (psi) | 58 |
| Recommended Material Viscosity Range | 30-8000 in CA4 seconds (or centipoise cps) |
| Maximum Fluid Output (cc/min) | 2000 |
| Maximum Fluid Output (cfm) | 0.07 |
| Minimum Output (cc/min) | 50 |
| Minimum Output (oz/min) | 1.69 |
| Pump displacement (cc/cycle) | 100 |
| Depth (mm) | 700 |
| Height (mm) | 1500 |
| Width/depth (mm) | 860 |
| Pressure ratio | 1/1 |
| Mixing Accuracy (%) | +/- 3 % |
| Mixing ratio | 1/1 - 20/1 |
| Number of A Component Solvents (Min/Max) | 1 Min/Max |
| Number of A Components (Min/Max) | 1 Min/Max |
| Number of B Components (Min/Max) | 1 Min/Max |
| Number of Components (Max) | 2 |
| Number of Products (base-catalyst-solvent) | base-catalyst-solvent |
| Maximum Temperature (°C) | 60 |
| Maximum Temperature (°F) | 140 |
| Air Inlet Fitting | 3/4 NPT |
| Material Outlet Port | M 1/2 JIC |
| Wetted Parts | PEHD |
| Certification | ATEX II 2G IIA T4 |
| Maximum number of recipes | 1 |
| Designation | Part number |
|---|---|
| PU 3000 | 155680140 |
For pricing and availability on the Sames PU3000 Airspray Plural Component Mixing & Dosing Paint Pump, call FTS at (248) 348-6700 or request a quote online.
