Mechanical mixing equipment, includes pumping, metering in low and medium pressure
♦ Easy to work plug and spray concept including pumping
♦ Quality of mixed materials thanks to the direct injection in the high-performance unique design static mixer
♦ Unsurpassed +/- 3% mixing accuracy due to the innovative pump change over technology
♦ Easy and quick learning thanks to the intuitive use
♦ Production stop prevented thanks to the design without flow meter
♦ Low cost of ownership for fast Return On Investment (ROI)
♦ Durability due to the Flowmax® Bellows technology on the catalyst side preventing any leaks for moisture sensitive materials
| Designation | Value |
|---|---|
| Max. inlet compressed air (bar) | 6 |
| Min. inlet compressed air (bar) | 6 |
| Recommended Material Viscosity Range | 10 - 40 in CA4 seconds (or centipoise cps) |
| Maximum Fluid Output (cc/min) | 800 |
| Maximum Material Pressure (bar) | 120 |
| Maximum Material Pressure (psi) | 1700 |
| Pressure ratio | 10:1 15:1 18:1 20:1 |
| Weight (g) | 22 |
| Mixing Accuracy (%) | 5% |
| Mixing ratio | 1/1 -2/1 -3/1 - 4/1 -5/1 |
| Number of A Component Solvents (Min/Max) | 1 Min/Max |
| Number of A Components (Min/Max) | 1 Min/Max |
| Number of B Components (Min/Max) | 1 Min/Max |
| Number of Components (Max) | 2 |
| Number of Products (base-catalyst-solvent) | 2 |
| Maximum Temperature (°C) | 60 |
| Maximum Temperature (°F) | 140 |
| Air Inlet Fitting | 3/8 NPT |
| Material Outlet Port | 3/8 NPS |
| Wetted Parts | PEHD |
| Designation | Part number |
|---|---|
| PU 2125 5/1 | 151586140 |
| PU 2125 4/1 | 151586130 |
| PU 2125 3/1 | 151586120 |
| PU 2125 2/1 | 151586110 |
| PU 2125 1/1 | 151586100 |

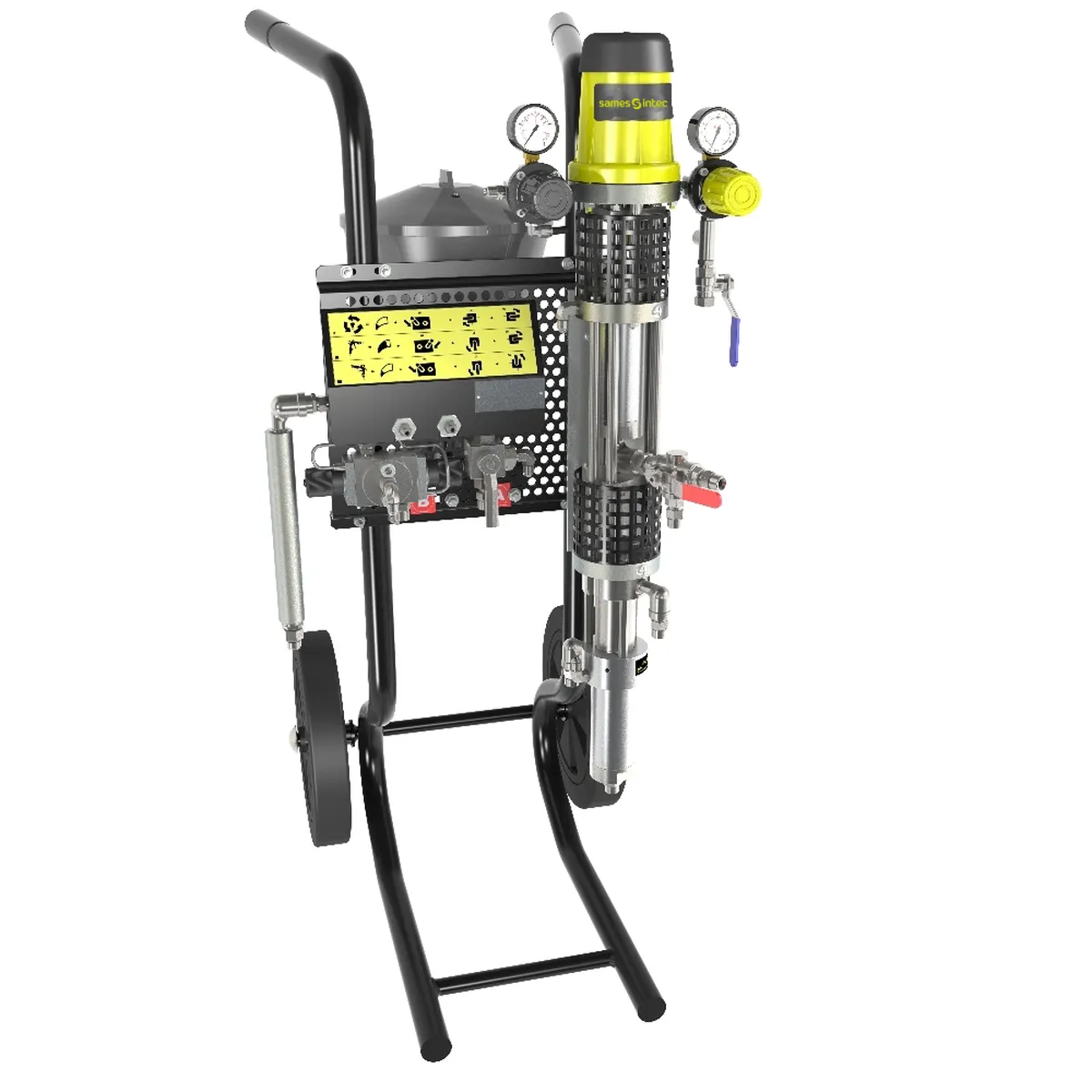

For pricing and availability on the Sames PU 2125 F Airspray Flowmax® Plural Component Mixing & Dosing Paint Pump, call FTS at (248) 348-6700 or request a quote online.
