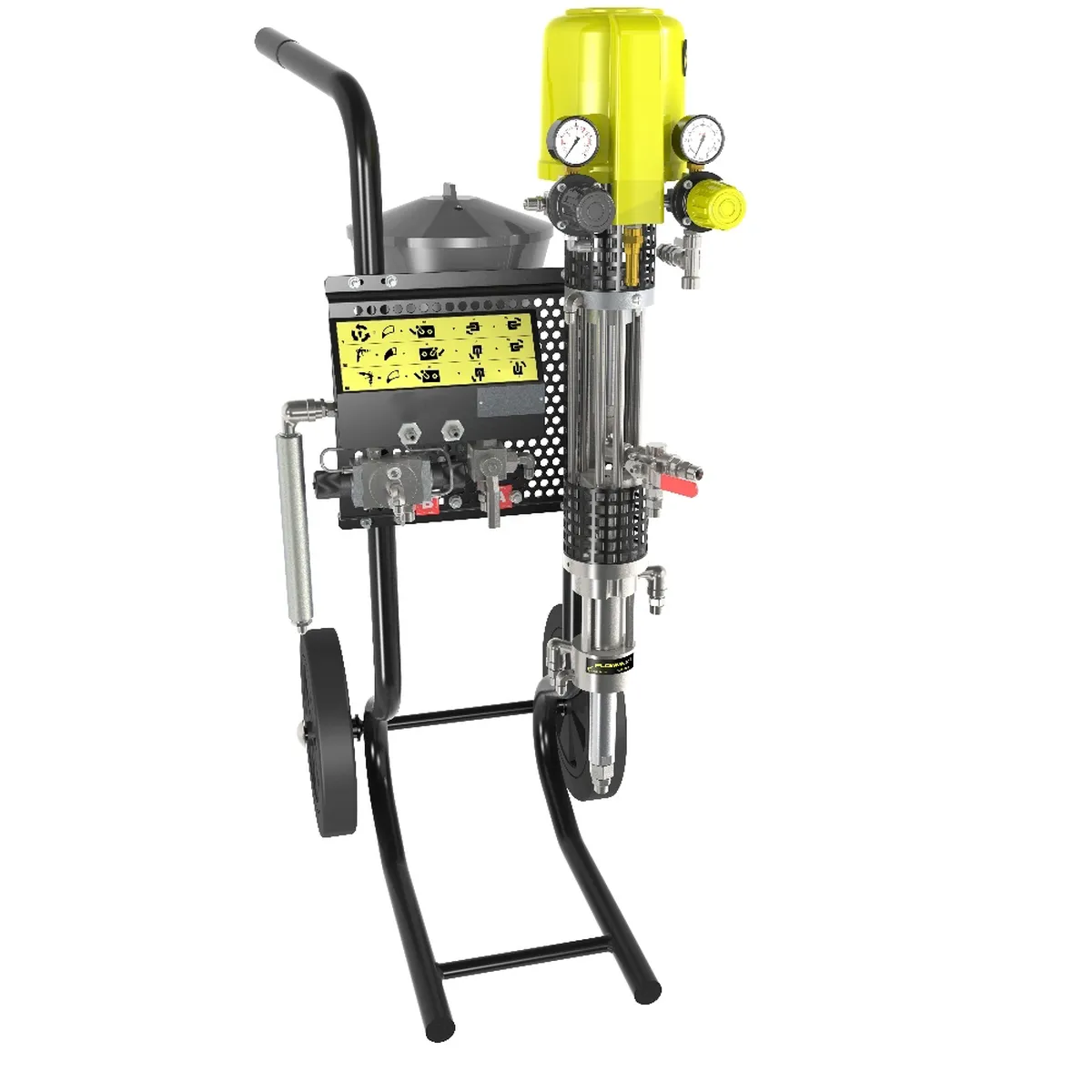

PU 2160F Mechanical meter mixing machine comes ready to use for 2K materials. It includes a metering pump (fixed ratio) for medium Airmix® pressures and incorporates the Flowmax® Bellows technology on the catalyst fluid section for total reliability.
Product Status:
Category:
Manufacturer:
PU 2160F Mechanical meter mixing machine comes ready to use for 2K materials. It includes a metering pump (fixed ratio) for medium Airmix® pressures and incorporates the Flowmax® Bellows technology on the catalyst fluid section for total reliability.
1. Portable solution, fully equipped with static mixer, mix manifold, and air control for easy installation
2. High performance due to uniquely designed static mixer delivering quality mixed materials
♦ Accurate dosing ratio without any risk of mistake
3. Easy to use, intuitive design with synoptic on a semi-automatic manifold
♦ Designed without flow meter to increase productivity
♦ Low cost of ownership for fast Return On Investment (ROI)
4. Uses Flowmax® Bellows technology for durability with moisture sensitive materials and prevents leak
5. Equipped with gravity hopper on hardener side for long term usage
6. Fast base color change -inlet valve - no hardener losses
| Designation | Value |
|---|---|
| Min. inlet compressed air (bar) | 6 |
| Min. inlet compressed air (psi) | 87 |
| Recommended Material Viscosity Range | 180 (800) in CA4 seconds (or centipoise cps) |
| Maximum Material Pressure (bar) | 120 |
| Pressure ratio | 20:1 to 10:1 |
| Weight (kg) | 60 |
| Weight (lbs) | 132 |
| Mixing Accuracy (%) | 5 |
| Mixing ratio | 1:1 2:1 5:1 10:1 |
| Number of A Components (Min/Max) | 1 Min/Max |
| Number of B Components (Min/Max) | 1 Min/Max |
| Number of Products (base-catalyst-solvent) | 2 (base & catalyst) |
| Air Inlet Fitting | F 3/8 BSP |
| Material Outlet Port | 1/2 JIC |
| Certification | ATEX II 2G IIA T3 |
| Designation | Part number |
|---|---|
| PU2160F 2/1 | 151586695 |
| PU2160F 10/1 | 151586700 |
| PU2160F 5/1 | 151586710 |
| PU2160F 1/1 | 151586690 |
For pricing and availability on the Sames PU 2160F Airmix® Mechanical Metering Paint Pump, call FTS at (248) 348-6700 or request a quote online.
