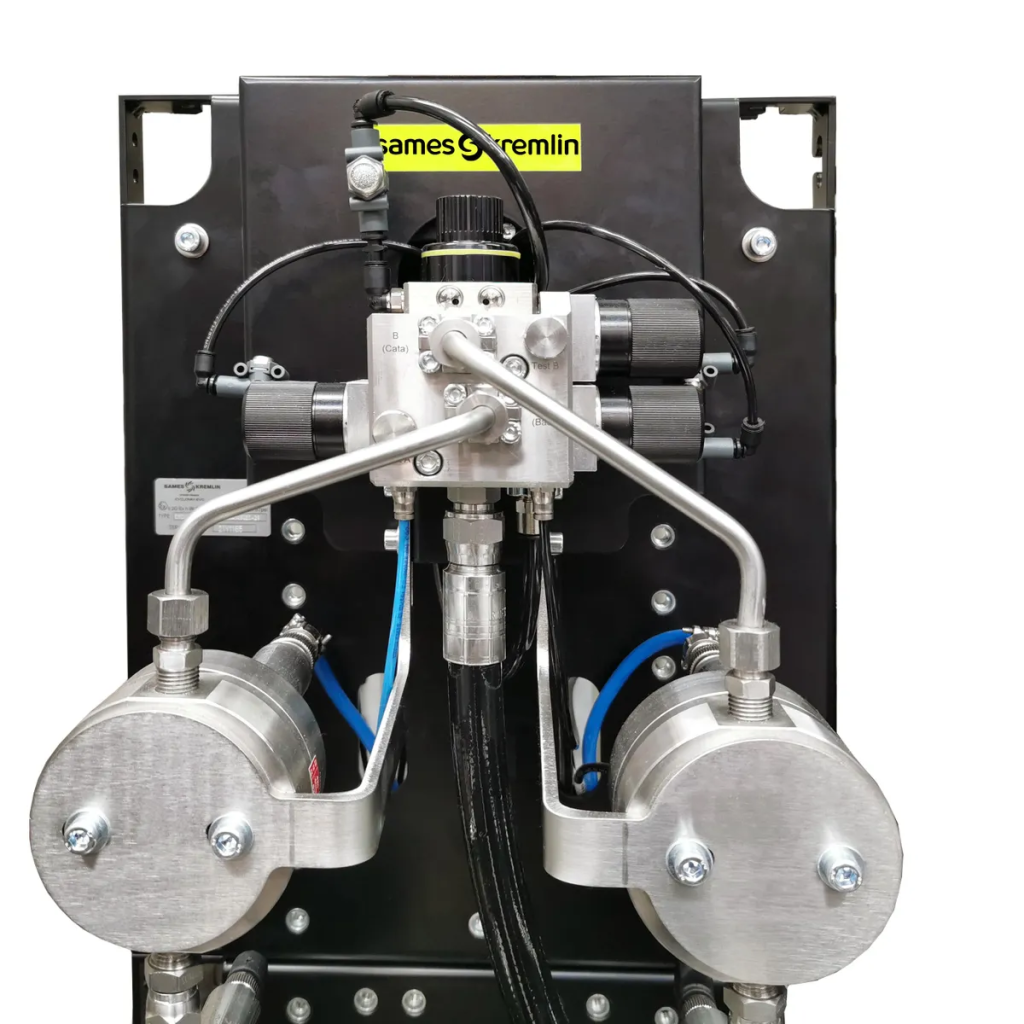

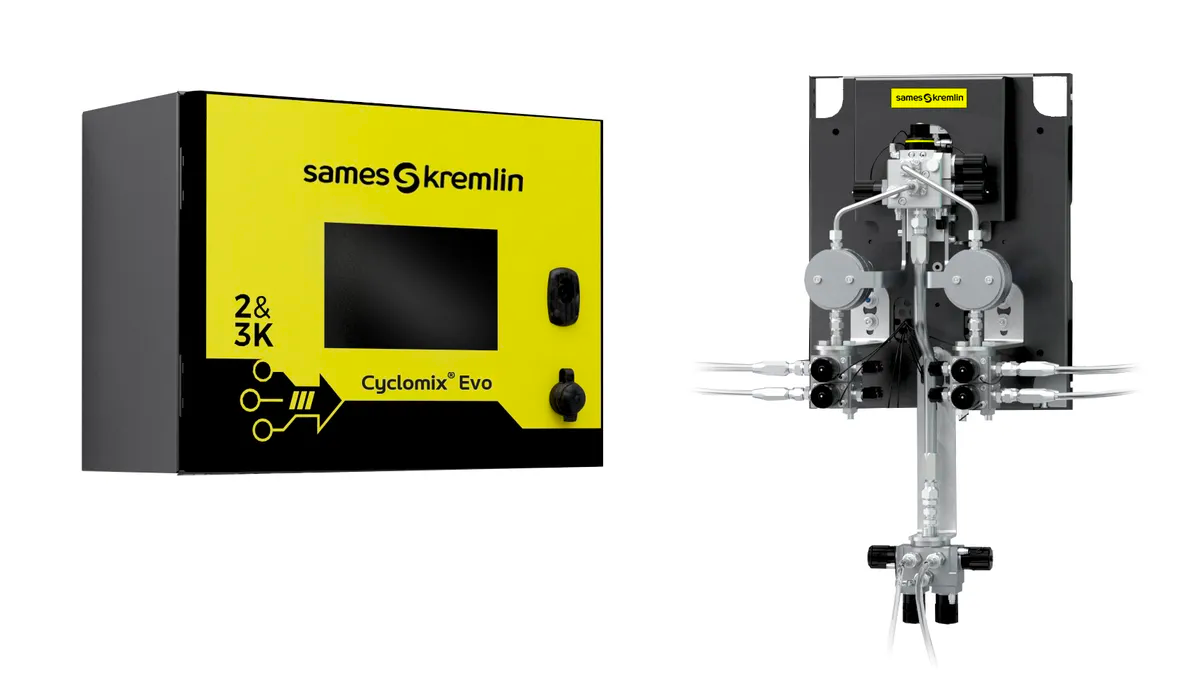

Electronic Mixing & Dosing System – 2 or 3 Components – Airspray, Airmix®, Airless
Electronic Mixing & Dosing System – 2 or 3 Components – Airspray, Airmix®, Airless
Product Status:
Category:
Manufacturer:

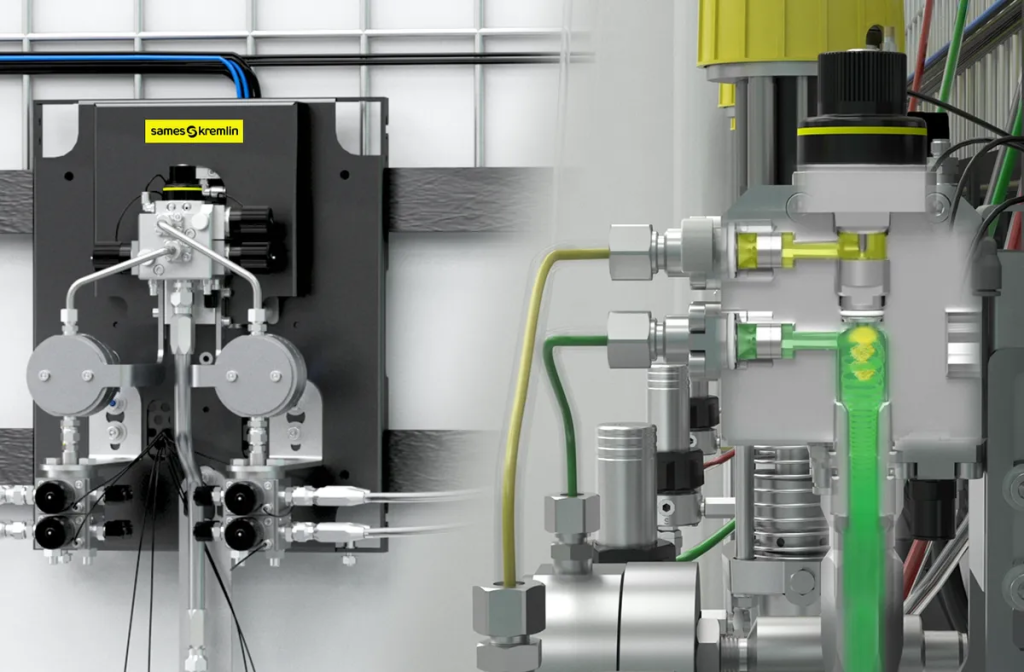

1Patented dosing system: Spraying the catalyst into the base stream
1Ultra-fast injection frequency thanks to our new injection valve
♦ Mixing accuracy of +/- 1%.
2Management of 2 independent circuits: Independent flushing and priming on the 2 circuits

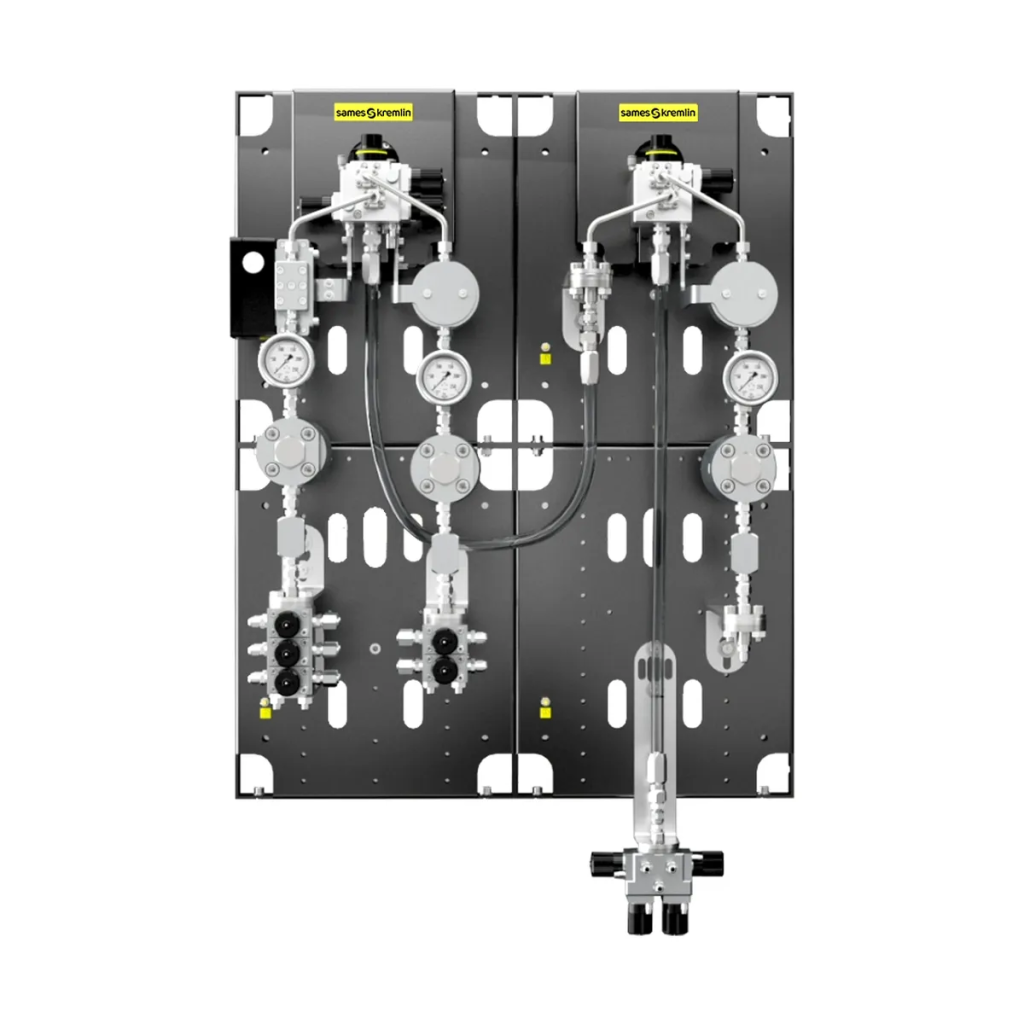

3Define your own configuration from a basic 2K version to a full options 3K version
♦ 2 minutes of training required for a quick start-up
♦ Buy only the configuration you need. Don't pay for unnecessary features
♦ Increase your production capacity by adding functionalities during the life of the Cyclomix® Evo
♦ Remote diagnostics and maintenance follow-up to avoid any production downtime
4Reduction of costs and mixed paint waste thanks to the "paint optimization" function
5Monitoring of production and maintenance data through a smartphone
♦ Retrieve production and maintenance data to optimize your production tool
♦ Perfectly adapted to acid catalysts: Seals, material and threads meeting the constraints of acid or basic products.
| Designation | Value |
|---|---|
| Max. inlet compressed air (bar) | 6.5 |
| Max. inlet compressed air (psi) | 87 |
| Min. inlet compressed air (bar) | 4.5 |
| Min. inlet compressed air (psi) | 58 |
| Recommended Material Viscosity Range | 20 - 3000 in CA4 seconds (or centipoise cps) |
| Maximum Fluid Output (cc/min) | 7000 |
| Maximum Fluid Output (cfm) | 0.25 |
| Minimum Output (cc/min) | 30 |
| Minimum Output (oz/min) | 0.001 |
| Depth (in) | 9.85 |
| Depth (mm) | 25 |
| Depth solution | 20 (control cabinet) - 25 (Fluid panel) for a configuration 4A2B |
| Height (in) | 18.1 |
| Height (mm) | 46 |
| Height solution | 30cm (control cabinet) - 46cm (fluid panel) for a configuration 4A2B |
| Width/depth (in) | 13.8 |
| Width/depth (mm) | 35 |
| Width/depth solution | 40 (control cabinet) - 35 (Fluid panel) for a configuration 4A2B |
| Maximum Material Pressure (bar) | 240 |
| Maximum Material Pressure (psi) | 3480 |
| Weight (kg) | 25 |
| Weight (lbs) | 55 |
| Mixing Accuracy (%) | 1% |
| Mixing ratio | 100:1 à 1:2 (1% à 200%) |
| Number of A Component Solvents (Min/Max) | 99 |
| Number of A Components (Min/Max) | 99 |
| Number of B Component Solvents (Min/Max) | 99 |
| Number of B Components (Min/Max) | 99 |
| Number of C Components (Min/Max) | 99 |
| Number of Components (Max) | 99 |
| Number of Products (base-catalyst-solvent) | 2K, 3K &(1K) base-catalyst-solvent |
| Product Typology Compatibility | Solventbased and Waterbased paint ; Acid catalyst |
| Voltage (V) | 230 |
| Connectivity | Smartphone App (Android, IOS) ; Remote control |
| Display | 7" |
| Robot Communication | Ethernet, Profinet, Modbus, cc-link |
| Traceability | OPCua, USB |
| Air Inlet Fitting | 10 MM |
| Material Inlet Port | 1/2JIC or NPSM |
| Material Outlet Port | 1/2JIC or NPSM |
| Fluid Passages | CTM 2MM INJECTOR STD 1MM |
| Number of circuits | 2 |
| Number of guns (max) | 2 |
| Wetted Parts | FFKM, PEEK, PTFE, Stainless steel 303, Stainless steel 316, Tungsten carbide |
| Additional Technical characteristics | User management: operator/maintenance/distributor/administrator
Manufacturing order number: 12 digits Number of flushing box for manual spray guns: Up to 2 |
| Certification | ATEX II (2) G Ex ia Gb IIB |
| Maximum number of recipes | 250 |
| Designation | Part number |
|---|---|
| Short mixer | 155660105 |
| Air feeding kit | 155661391 |
| Clear cover | 155661873 |
| Frame for 3K product plate | 155661870 (x2) + 155661871 (x4) |
| Frame for 2K product plate | 155661870 + 155661871 (x2) |
| Designation | Part number |
|---|---|
| MicroEvo Control Panel | 155661890 |
| Flushing box (Fpro, Fstart, Xcite®+, Sflow®) | 155710000 |
