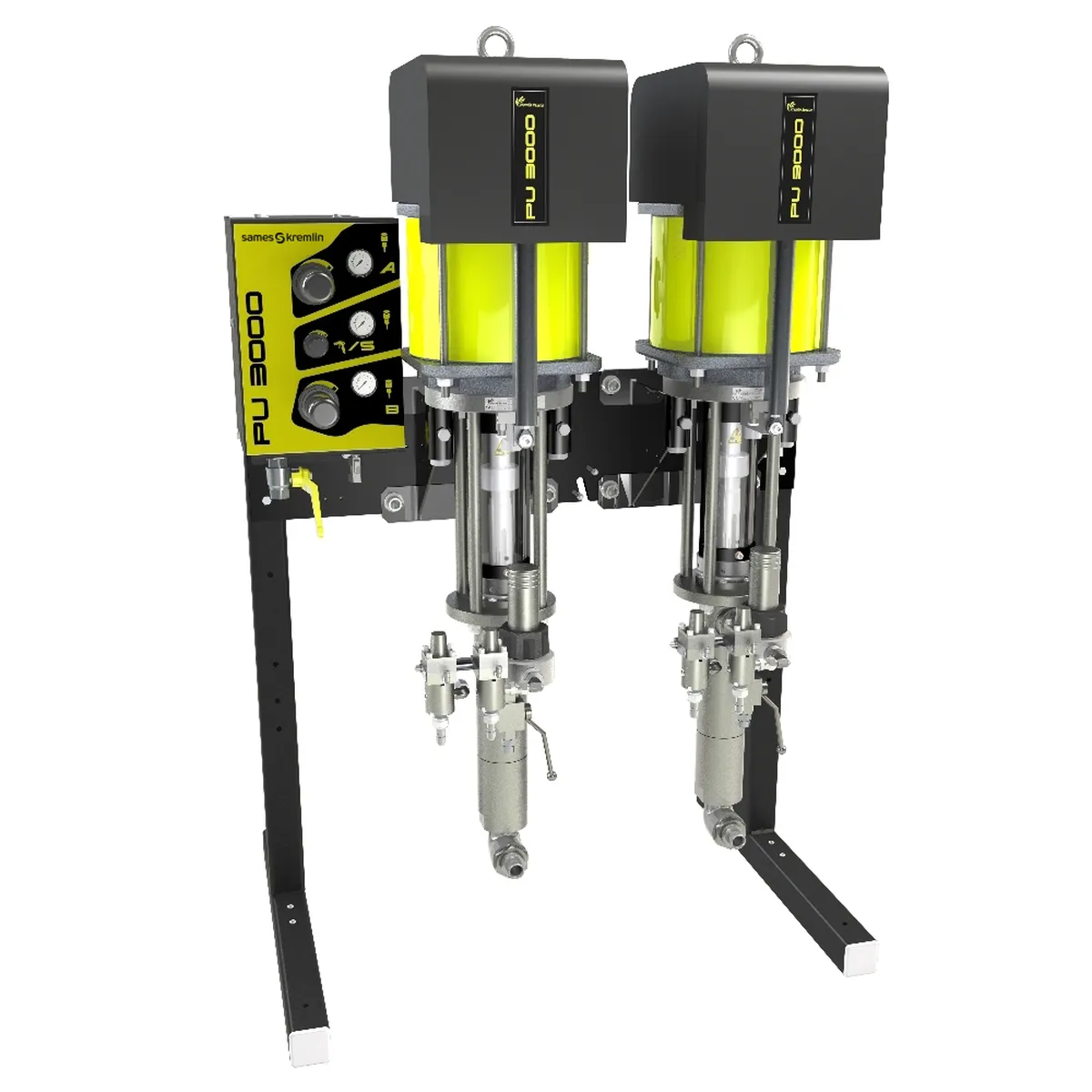

The PU3000 Airless combines electronic control and mechanical dosing & mixing and includes pumping, metering & electronic functions. The user-friendly control box allows the operator to intuitively learn how to operate the machine. It is available in 2 versions: 2 liters and 4 liters
Product Status:
Category:
Manufacturer:
The PU3000 Airless combines electronic control and mechanical dosing & mixing and includes pumping, metering & electronic functions. The user-friendly control box allows the operator to intuitively learn how to operate the machine. It is available in 2 versions: 2 liters and 4 liters
1. Easy to work plug and spray concept including pumping metering and electronic
2. Quality of mixed materials thanks to the direct injection in the high-performance unique design static mixer (Injectmix Technology)
3. Unsurpassed - 1% mixing accuracy due to the innovative pump change over technology
♦ The electronic alerts if needed and constantly monitors the material consumption and calculates the VOCs
4. Easy and quick learning thanks to the intuitive use
♦ Production stop prevented thanks to the design without flow meter
♦ Constant fluid flow rate thanks to the Sames Pulse-Free Electronic Control (PFE)
♦ Low cost of ownership for fast Return On Investment (ROI)
5. Stainless steel fluid passages for water-based materials.
6. Durability due to the Flowmax® Bellows technology on the catalyst side preventing any leaks for moisture sensitive materials
♦ Rugged design for industrial use
| Designation | Value |
|---|---|
| Max. inlet compressed air (bar) | 6 |
| Max. inlet compressed air (psi) | 94 |
| Min. inlet compressed air (bar) | 4.5 |
| Min. inlet compressed air (psi) | 65 |
| Recommended Material Viscosity Range | < 20.000 in CA4 seconds (or centipoise cps) |
| Maximum Fluid Output (cc/min) | 4000 |
| Maximum Fluid Output (cfm) | 0.14 |
| Minimum Output (cc/min) | 50 |
| Pump displacement (cc/cycle) | 260 |
| Depth (mm) | 700 |
| Height (mm) | 1500 |
| Width/depth (mm) | 860 |
| Maximum Material Pressure (bar) | 350 |
| Maximum Material Pressure (psi) | 5100 |
| Pressure ratio | 53/1 |
| Weight (kg) | 170 |
| Weight (lbs) | 217 |
| Mixing Accuracy (%) | +/- 1 % |
| Mixing ratio | 1/1 - 20/1 |
| Number of Components (Max) | 2 |
| Number of Products (base-catalyst-solvent) | 1-1-1 |
| Maximum Temperature (°C) | 50 |
| Maximum Temperature (°F) | 122 |
| Air Inlet Fitting | F 3/4 BSP |
| Material Outlet Port | F 3/4 JIC |
| Wetted Parts | PEHD |
| Certification | II 2G IIA T4 |
| Maximum number of recipes | 1 |
| Designation | Part number |
|---|---|
| PU3000 (Flowmax®) | 155680175 |
| PU 3000 | 155680150 |
| PU 3000 | 155680102 |
For pricing and availability on the Sames PU3000 Airless Plural Component Mixing and Dosing Paint Pump, call FTS at (248) 348-6700 or request a quote online.
