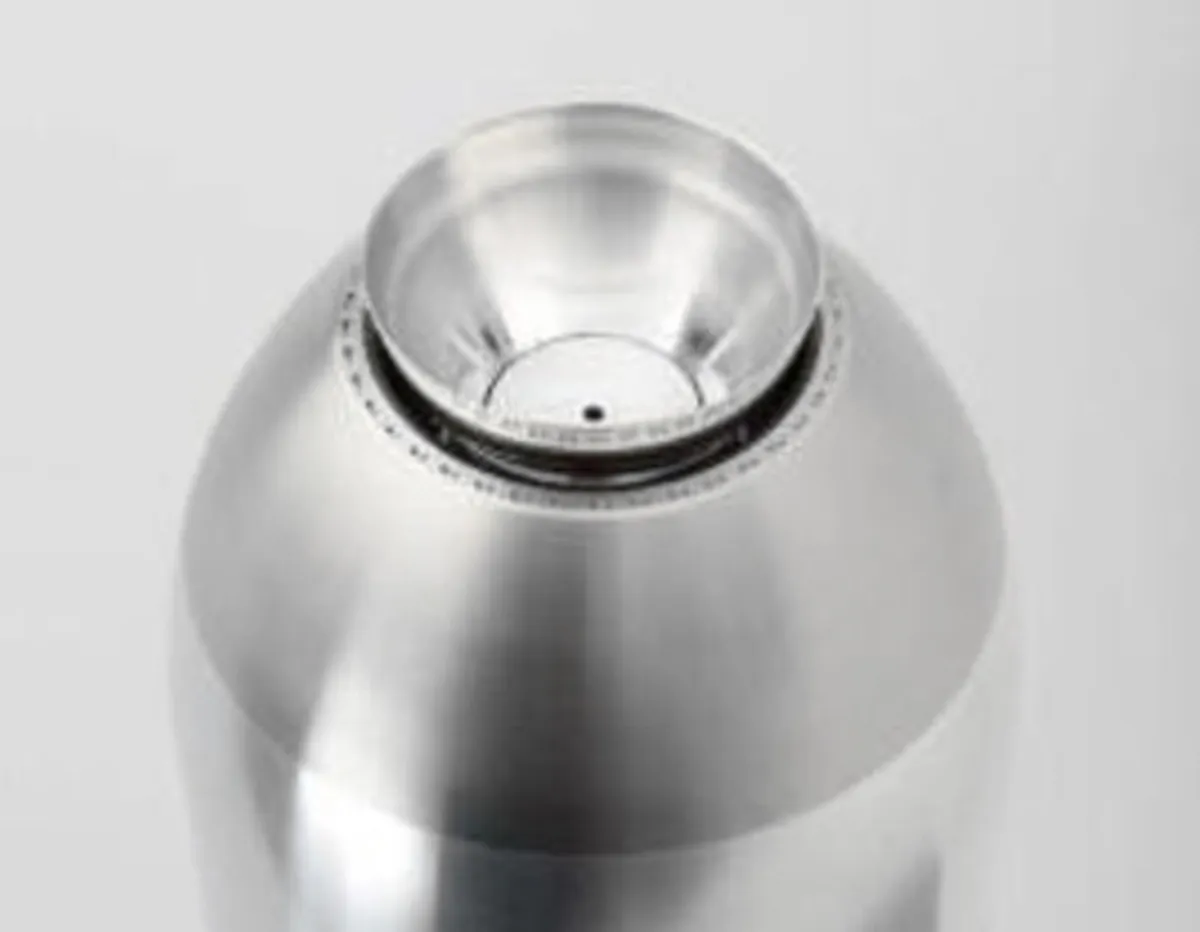

New bell system to improve the transfer efficiency of rotary bell sprayers
♦ Transfer efficiency over 85% on exterior car body
♦ Optimum transfer efficiency at 600mm/s, 300cc/min and 30 000rpm rotation speed.
♦ Validation available in all major Paint application centers of Sames: France, China, USA.
♦ Material supplier may find an optimum paint formulation for short distance and low rotation speed : paint resistivity, solvent balance.
♦ Robot speed up to 800mm/s
♦ Paint Flow up to 600cc/min
♦ Keep same number of robots as standard process
♦ Less CO2 due to less paint
♦ Reduce your VOC
♦ More time between cleaning operations and longer life for your filters
♦ -20% air consumption saved on each sprayer, due to lower rotation speed of motor
| Designation | Value |
|---|---|
| Optimal Transfer Efficiency (%) | 85 |
| Liquid Electrostatic Technology | Internal charge |
| Maximum Flow (cc/min) | 600 |
| Maximum Flow (gal/min) | 0.158 |
| Minimum Flow (cc/min) | 100 |
| Minimum Flow (gal/min) | 0.026 |
| Standard Paint Flow (cc/min) | 300 |
| Standard Paint Flow (gal/min) | 0.08 |
| High Voltage (maximum) (kV) | 60 |
| High Voltage Control Module | GNM200 & GNM300 |
| High Voltage Unit | UHT157 & UHT157i |
| Type of electrostatic charge | Internal charge |
| Wetted Parts | Titanium |
| Rotation Speed (rpm) | <35000 |
| Spraying type | Bells |
For pricing and availability on the Sames GTE Bell system, call FTS at (248) 348-6700 or request a quote online.
