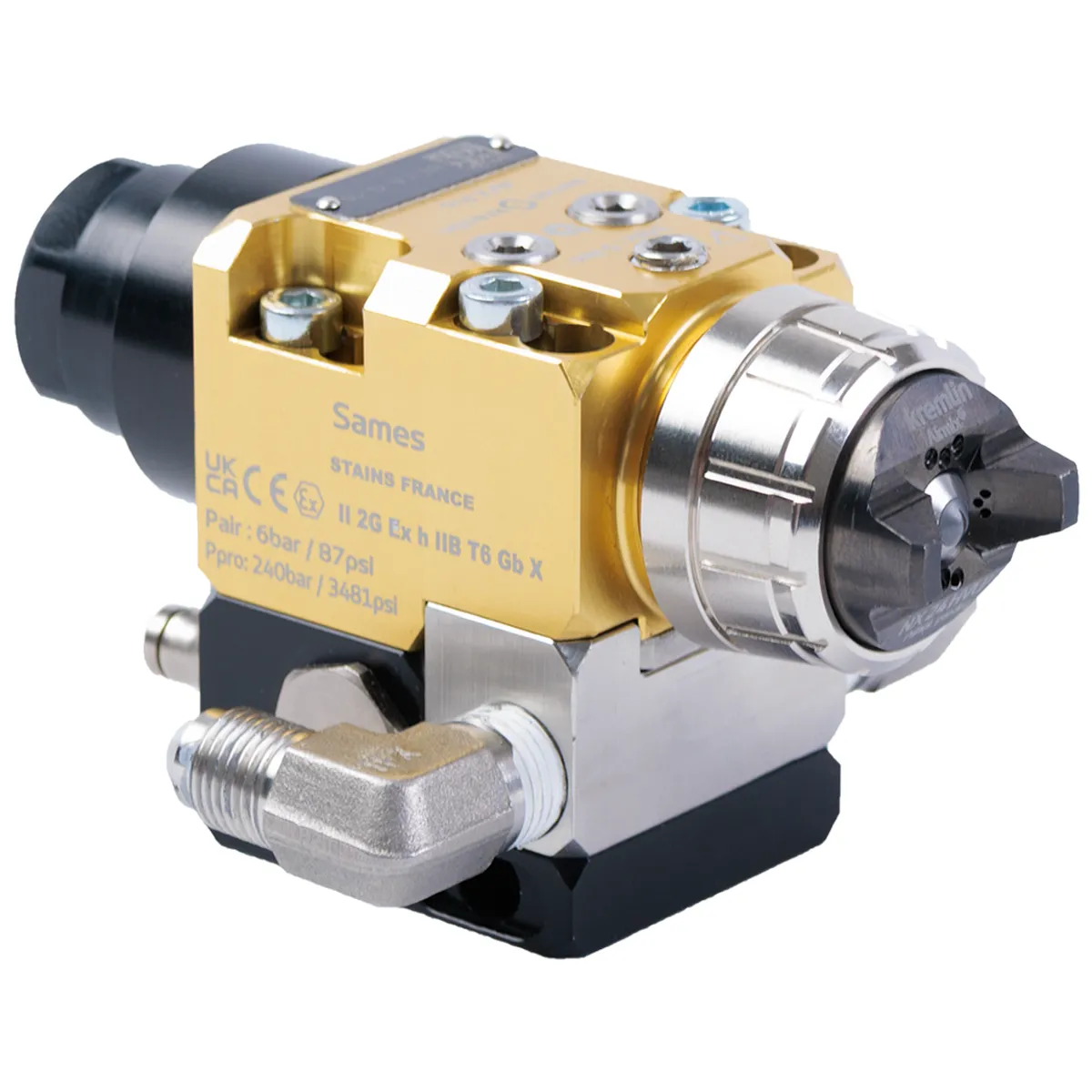

The AVX Pro is the proud offspring of the world standard AVX (Automatic Variable Airmix®), maintaining full backward compatibility while offering improved performances and lower TCO (Total Cost of Ownership)
The AVX Pro is the proud offspring of the world standard AVX (Automatic Variable Airmix®), maintaining full backward compatibility while offering improved performances and lower TCO (Total Cost of Ownership)
Product Status:
Category:
Manufacturer:
The AVX Pro is the proud offspring of the world standard AVX (Automatic Variable Airmix®), maintaining full backward compatibility while offering improved performances and lower TCO (Total Cost of Ownership)
Improved fluid passages decrease the fluid pressure loss and improve spraying evenness when daisy-chaining several guns in an application. 240 bar maximum pressure and "Airless mode" allow quick changing of the spray mode without changing the gun or releasing the pressure in the fluid and air circuits
Packing « cartridges » come in reinforced PTFE (Rulon) or GT seal, which can be chosen at will without any modification of the gun body. Replacement cartridges may be purchased whole or may be serviced by the customer with a replacement seal kit. Seats are made of tungsten carbide, which offers significant lifetime improvement over traditional stainless-steel seats. Volume of rinse material has been decreased by 10% over legacy AVX. Reduced opening and closing time reduce the amount of paint sprayed around the substrate, giving significant paint savings up to 10 to 15%.
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Trigger Air Pressure (bar) | 3.5 |
| Trigger Air Pressure (psi) | 50 |
| Atomizing Air Inlet | Common thread 1/4 NPS/BSP (fittings) |
| Pilot Air Inlet | FF4x6 (tube fitting) |
| Height (in) | 2.6 |
| Height (mm) | 68 |
| Length (gun only) (in) | 4.1 |
| Length (gun only) (mm) | 104 |
| Width/depth (in) | 1.6 |
| Width/depth (mm) | 45 |
| Maximum Material Pressure (bar) | 240 |
| Maximum Material Pressure (psi) | 3480 |
| Weight (lbs) | 1.5 - with lateral base T |
| Material Inlet Port | 2 x F 1/4 NPSM - fittings M JIC, BSP, NPT |
| Body Material | Aluminium |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 122 |
| Wetted Parts | PTFE, Stainless steel 303 |
| Certification | CE-UKCA II2G Ex h IIB T6 Gb X |
| Compatible spray tip | Airmix® Fine Finish, Airmix® Xtra Fine Finish, Airmix® Asymmetrical |
| HVLP Compliant | Yes |
| Spraying type | Airmix® |
| Designation | Part number | Details |
|---|---|---|
| AUTOMATIC AIRMIX GUN, GT CARTRIDGE | 129693003 | |
| AUTOMATIC AIRMIX GUN, RULLON CARTRIDGE | 129693000 | |
| BASE FOR AUTO. AIRMIX GUN, SIDE OUTLETS, T (CIRCULATE THROUGH BASE) | 129692070 | |
| BASE FOR AUTO. AIRMIX GUN, REAR OUTLETS, T (CIRCULATE THROUGH BASE) | 129692080 | |
| BASE FOR AUTOMATIC GUN, CIRC. GUN (OMEGA), REAR OUTLETS | 129693080 | |
| BASE FOR AUTO. AIRMIX GUN,SIDE OUTLETS, OMEGA, (CIRCULATE THROUGH GUN) | 129693070 | |
| BASE AUTO. AIRMIX GUN,CEFLA, SIDE OUTLETS, T (CIRCULATE THROUGH BASE) | 129692090 | |
| AIRCAP ASSEMBLY NX124 KHVLP INDEXED | 132730050 | Short ears, indexed, no fan width control |
| AIRCAP ASSEMBLY NX24 KHVLP INDEXED | 132730020 | Short ears, indexed, with fan width control |
| GUN,AVX PRO (RULON),C/W AIR CAP & TIP (09-154) | 668-693-000 | |
| GUN,AVX PRO (GT),C/W AIR CAP & TIP (09-152) | 668-693-001 | |
| GUN,AVX PRO,C/W CEFLA BASE,NX124,TIP (RULON) | 668-693-100 | |
| GUN,AVX PRO,REAR INLET,C/W NX124,TIP (RULON) CELFA | 668-693-101 | |
| GUN,AVX PRO,SIDE INLET,C/W NX124,TIP (RULON) CELFA | 668-693-102 | |
| GUN,AVX PRO,C/W CEFLA BASE, NX124,TIP (GT) CELFA | 668-693-103 | |
| GUN,AVX PRO,SIDE INLET,C/W NX124,TIP (RULON) MAKOR | 668-693-200 | |
| GUN,AVX PRO,REAR INLET,C/W NX124,TIP (RULON) MAKOR | 668-693-201 | |
| GUN,AVX PRO,SIDE INLET,C/W NX124,TIP (GT) MAKOR | 668-693-202 | |
| GUN,AVX PRO,SIDE INLET,C/W NX124,TIP (RULON) SUPERFICI | 668-693-300 | |
| GUN,AVX PRO,REAR INLET,C/W NX124,TIP (RULON) SUPERFICI | 668-693-301 | |
| GUN,AVX PRO,SIDE INLET,C/W NX124,TIP (GT) SUPERFICI | 668-693-302 | |
| GUN,AVX PRO,SIDE INLET,C/W NX24,TIP, FAN-CTRL,SUPERFICI | 668-693-303 | |
| GUN,AVX PRO,REAR INLET,C/W NX124,TIP (RULON) VENJAKOB | 668-693-400 | |
| GUN,AVX PRO,REAR INLET,C/W NX124,TIP(RULON) GUN CIRC,VENJAKOB | 668-693-401 | |
| GUN,AVX PRO,SIDE INLET,C/W NX124,TIP (RULON) GIARDINA | 668-693-500 |
| Designation | Part number |
|---|---|
| ADJUSTABLE FAN WIDTH MANUAL NEEDLE AUTO.GUN (M14x100) | 129253100 |
| ADJUSTABLE FAN WIDTH CONNECTOR - M14x100 - (F) 1/4 BSPP | 029253002 |
| Mounting support DIA.12mm | 049351700 |
| COMPLETE ATTACHMENT FOR AUTO. GUN ROD D16 + FIXING NUT | 049351000 |
| SS ELBOW CONN.MM 1/4 NPT 1/2'' JIC | 905210602 |
| SS CONNECTOR MM 1/4 NPT 1/2'' JIC | 905210502 |
| SS ELBOW CONN.MM 1/4 NPT 1/4 BSP | 905210630 |
| SS ELBOW CONN.MM 1/4 NPT | 905210620 |
| SS CONNECTOR MM 1/4 NPT 1/4 BSP | 905210530 |
| SS CONNECTOR MM 1/4 NPT | 905210520 |
| TUBING FITTING (CONTROL) M 1/8 BSP D6MM | 552252 |
| TUBING FITTING (CONTROL) M 1/8 BSP D4MM | 552251 |
| TUBING FITTING (AIR) M 1/4 BSP D8MM | 905121018 |
| AIR FITTING 'COMMON THREAD' MM 1/4BSP 1/4 BSP/NPS | 21000150 |

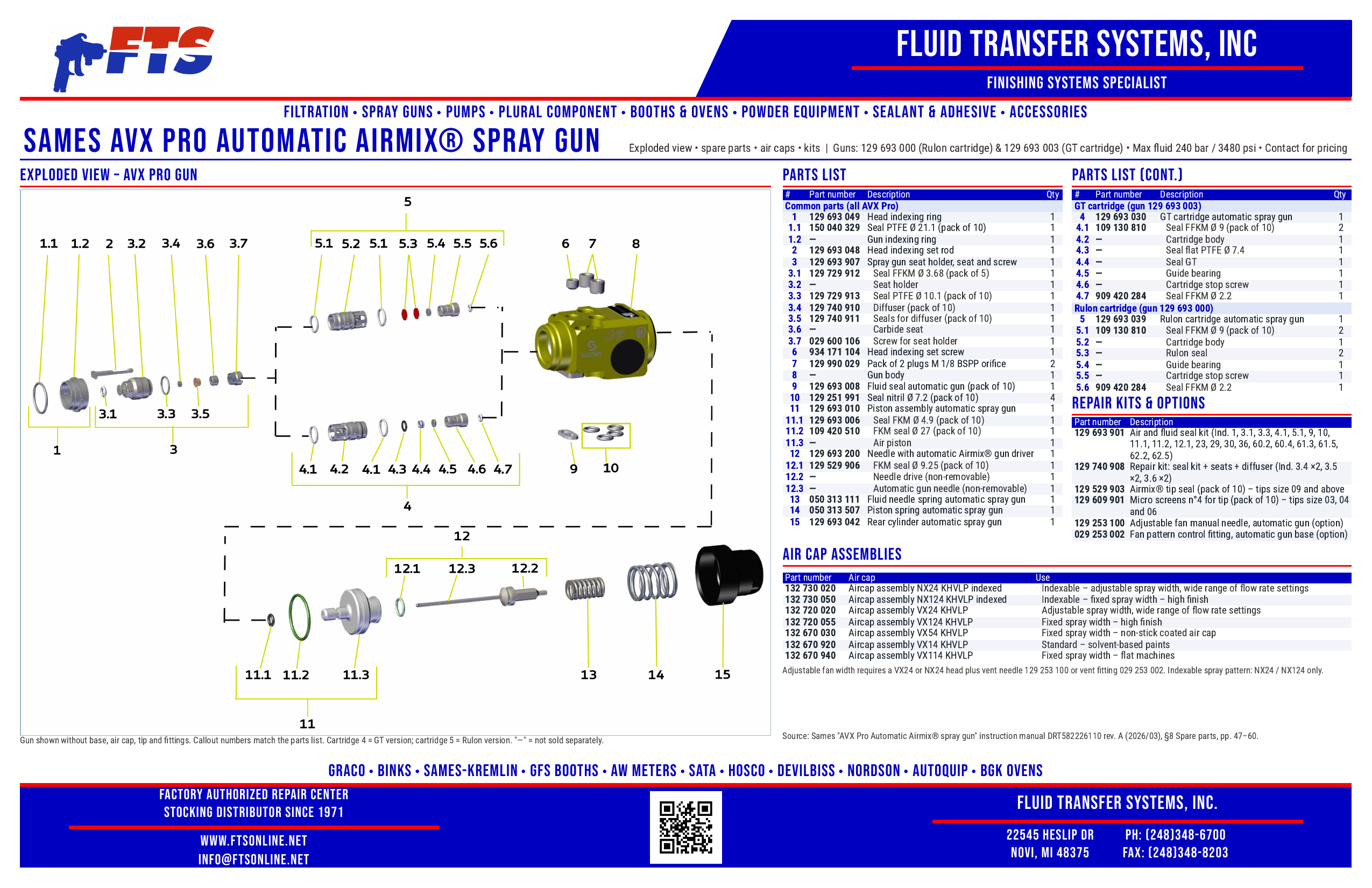

Download the AVX Pro exploded view & parts list (PDF)
