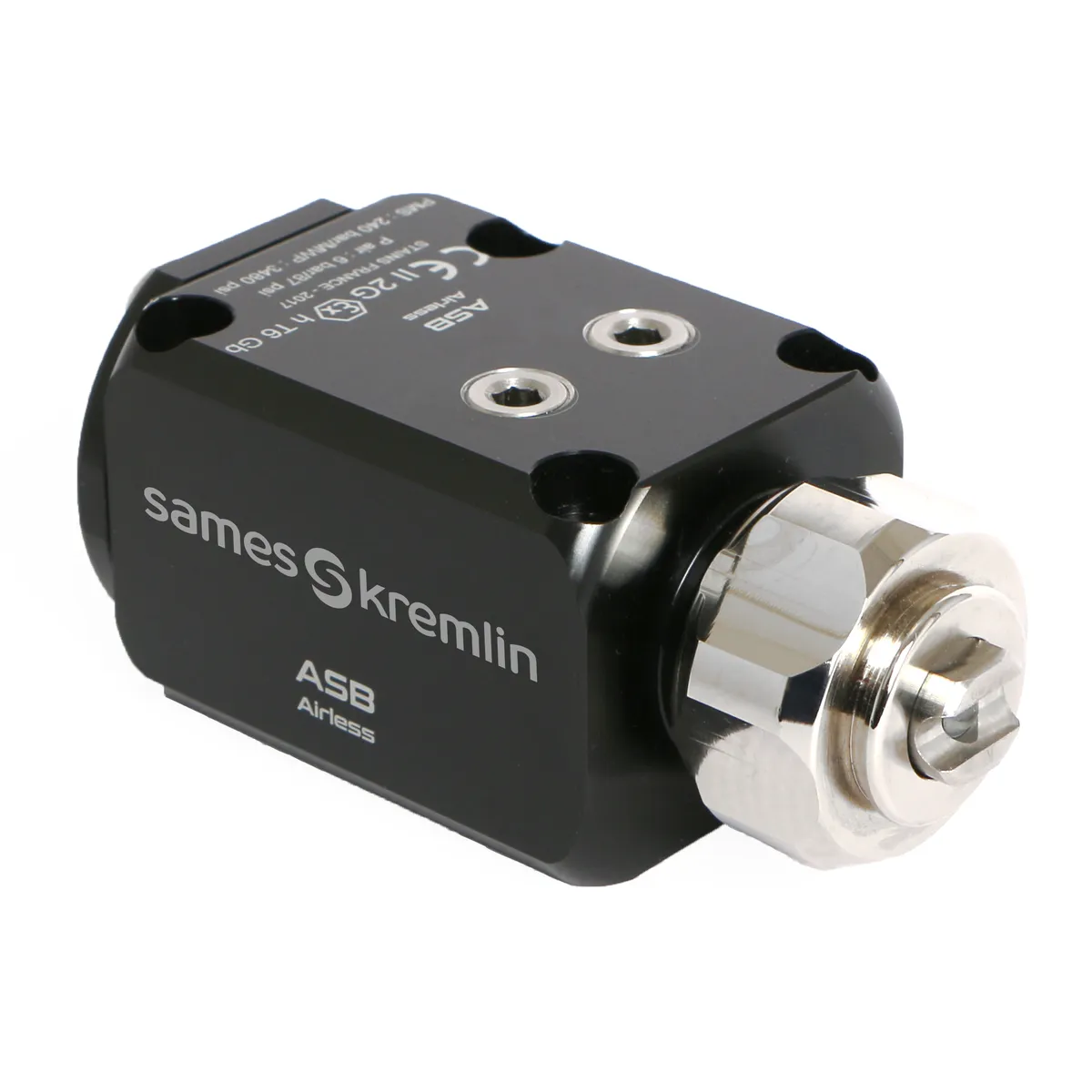

The ASB automatic spray gun offers superior atomization whatever the line speed thanks to perfect balance between high pressure and high flow rate. It offers precise application – coating applied directly on the target – due to fast response time.
The ASB automatic spray gun offers superior atomization whatever the line speed thanks to perfect balance between high pressure and high flow rate. It offers precise application – coating applied directly on the target – due to fast response time.
Product Status:
Category:
Manufacturer:
The ASB automatic spray gun offers superior atomization whatever the line speed thanks to perfect balance between high pressure and high flow rate. It offers precise application - coating applied directly on the target - due to fast response time.
1. Easy offer, the same gun works in Ω or T version by adding one plug
2. Fast response time and High Speed cycling capability
♦ The ASB gun is the lightest gun on the market decreasing paint machine wear
♦ Compact design for easy integration
3. Full versatility with other Sames spray guns, only 4 screws to remove
4. Smart operation: Trigger indicator located on back of gun
5. Wide range of tips available (Flat, reversible Tip Top and fine finishing Skill™)
♦ Easy maintenance with simple construction (only 14 parts) for an overall low maintenance cost
6. Two choices of cartridges, PTFE or V-seal energized (also called GT), prevents leakage
7. Optional cartridge lubrication for long term usage
8. Compatibility with full range of bases
♦ Anodized body for excellent wear resistance
♦ Stainless steel fluid passages for full compatibility with most coatings
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Trigger Air Pressure (bar) | 3 |
| Trigger Air Pressure (psi) | 43 |
| Optimal Transfer Efficiency (%) | 81 |
| Maximum Material Pressure (bar) | 240 |
| Maximum Material Pressure (psi) | 3480 |
| Weight (lbs) | 0.74 |
| Maximum Temperature (°C) | 40 |
| Maximum Temperature (°F) | 104 |
| Material Inlet Port | 2x F 1/4 NPS (base) |
| Body Material | Aluminium |
| Wetted Parts | PTFE, Stainless steel 303 |
| Certification | II 2G Ex h IIB T6 Gb |
| Compatible spray tip | Airless Flat, Airless Skill®, Airless Tip top |
| Spraying type | Airless |
| Designation | Part number | Weight (kg) | Weight (lbs) | Fittings |
|---|---|---|---|---|
| ASB 240 PTFE CARTRIDGE FLAT TIP GUARD W/O BASE | 129990200 | 0.336 | 0.74 | |
| ASB 240 PTFE CARTRIDGE REVERSIBLE TIP GUARD W/O BASE | 129990400 | 0.336 | 0.74 | |
| ASB 240 GT CARTRIDGE FLAT TIP GUARD W/O BASE | 129990300 | 0.336 | 0.74 | |
| ASB 240 GT CARTRIDGE REVERSIBLE TIP GUARD W/O BASE | 129990500 | 0.336 | 0.74 | |
| (⊥) BASE WITH SIDE FLUID CONNEC. | 129690070 | 0.24 | 0.53 | side |
| (⊥) BASE WITH REAR FLUID CONNEC. | 129690080 | 0.48 | 1.06 | |
| (Omega) BASE WITH SIDE FLUID CONNEC. | 129691070 | 0.24 | 0.53 | |
| (Omega) BASE WITH REAR FLUID CONNEC. | 129691080 | 0.48 | 1.06 | |
| (⊥) CEFLA BASE WITH SIDE FLUID CONNEC. | 129690090 | 0.24 | 0.53 |
| Designation | Part number |
|---|---|
| AIRLESS FLAT TIP CALIBER XXXX | 00000XXXX |
| AIRLESS SKILL TIP CALIBER XXXX | 00030XXXX |
| TIPTOP AIRLESS REVERSIBLE TIP CALIBER XXXX | 00040XXXX |
| SEALS MAINTENANCE KIT FOR ASB | 129990060 |
| PACK OF 2 QUICK CONNECTION FOR LUBRIFICANT CIRCULATION | 129990062 |
| Mounting support DIA.12mm | 049351700 |
| MOUNTING SUPPORT SWIVELING | 049351705 |
| COMPLETE ATTACHMENT FOR AUTO. GUN ROD D16 + FIXING NUT | 049351000 |
| EXTENSION AIRLESS SST 500B LG300 | 175740030 |
| EXTENSION AIRLESS SST 500B LG600 | 175740060 |
| ROBOTIC BASE 60° - T - WITH FILTER | 129691170 |
For pricing and availability on the Sames ASB Airless Automatic Spray Gun on Base Plate, call FTS at (248) 348-6700 or request a quote online.
