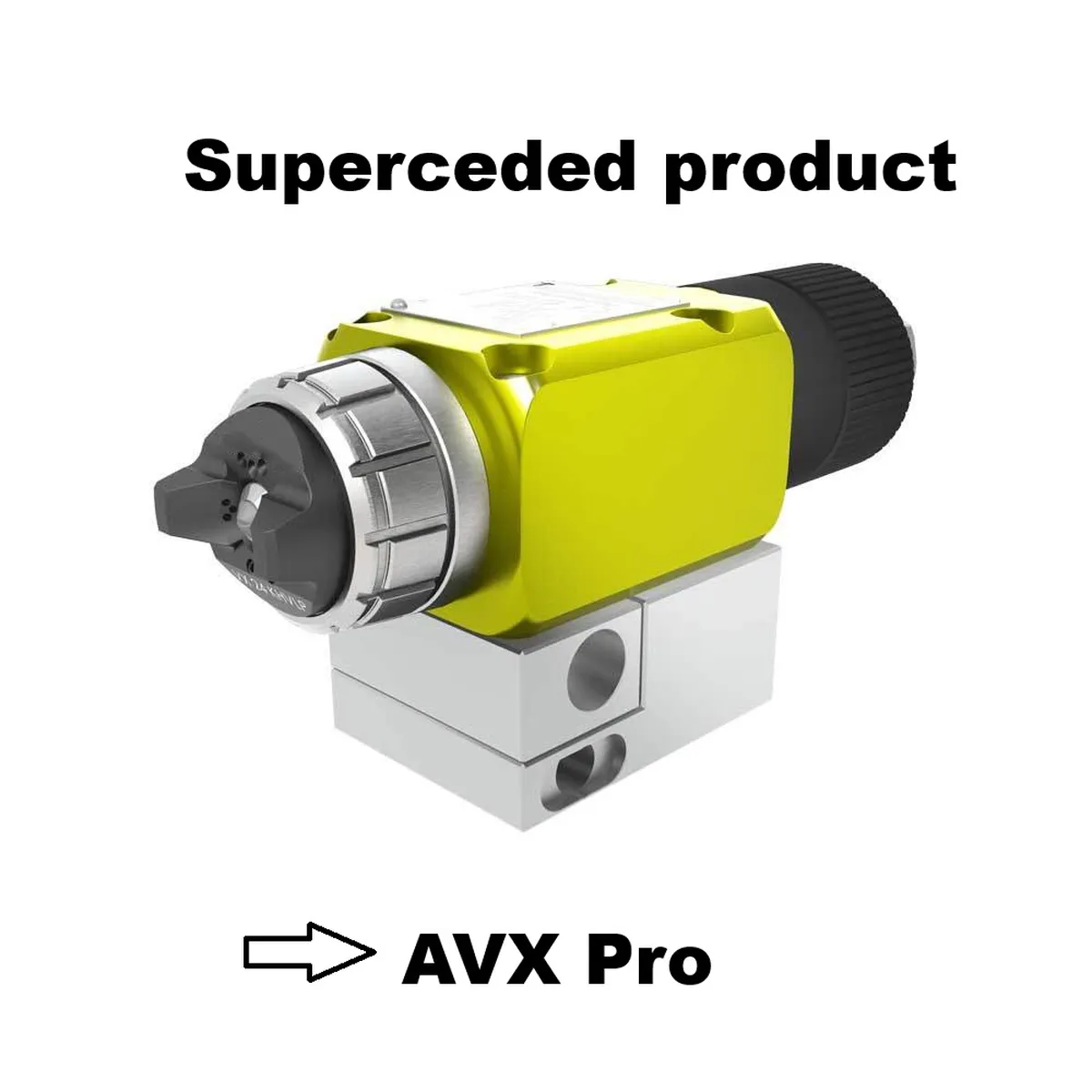

The automatic Airmix® AVX spray gun ensures high level performance with unsurpassed finish & excellent atomization quality. The base-mounted modular design allows for quick maintenance with minimum downtime.
The automatic Airmix® AVX spray gun ensures high level performance with unsurpassed finish & excellent atomization quality. The base-mounted modular design allows for quick maintenance with minimum downtime.
Product Status:
Category:
Manufacturer:
The automatic Airmix® AVX spray gun ensures high level performance with unsurpassed finish & excellent atomization quality. The base-mounted modular design allows for quick maintenance with minimum downtime.
1. Dual spring mounted outside fluid passage allows for opening air before atomizing fluid for better fan spray quality
2. VX24 (adjustable spray) or VX124 (fixed spray) and a wide offering of fine finish and Xtra fine finish spray tips
3. Optional fan air - local or remote control
♦ Extreme film build accuracy
♦ Compatible with a wide range of products (solvent-based and water-based)
4. Easy assembly and disassembly - only 4 bolts for easy servicing Circulation in the base allows less pressure loss in circulation system OR circulation in the gun offers a quicker, better flushing with limited volume of solvent sprayed into the machine or spray booth
5. Wetted parts are stainless steel, Rulon or GT for better durability
♦ Extended lifetime with most products
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (bar) | 0.7 - 3 |
| Recommended Air Pressure (psi) | 10 - 43 |
| Trigger Air Pressure (bar) | 3 |
| Trigger Air Pressure (psi) | 43 |
| Optimal Transfer Efficiency (%) | 86 |
| Atomizing Air Inlet | F 1/4 NPS (base) or M1/4 NPS (fittings) |
| Pilot Air Inlet | F 1/8 NPS (base) or FF4x6 (fittings) |
| Maximum Material Pressure (bar) | 200 |
| Maximum Material Pressure (psi) | 2900 |
| Minimum Material Pressure (bar) | 20 |
| Minimum Material Pressure (psi) | 290 |
| Air Consumption (cfm) | 1.77 - 4.41 |
| Air Consumption (m3/h) | 3 - 7.5 |
| Weight (lbs) | 16 |
| Maximum Temperature (°C) | 50 |
| Maximum Temperature (°F) | 122 |
| Material Inlet Port | 2 x F 1/4 NPS (base) or 2 x M1/2'' JIC (fittings) |
| Body Material | Aluminium |
| Maximum Fluid Temperature (°C) | 50 |
| Maximum Fluid Temperature (°F) | 122 |
| Wetted Parts | Stainless steel 303, PTFE |
| Additional Technical characteristics | The fluid output is determined by the tip used |
| Certification | CE-UKCA II2G Ex h IIB T6 Gb X |
| Compatible spray tip | Airmix® Asymmetrical, Airmix® Fine Finish, Airmix® Xtra Fine Finish |
| HVLP Compliant | Yes |
| Spraying type | Airmix® |
| Designation | Part number | Weight (kg) | Weight (lbs) | Fittings |
|---|---|---|---|---|
| AVX Spray Gun (T) (Gun only) | 129690000 | 0.452 | 1 | |
| AVX Spray Gun ( Ω ) (Gun only) | 129691000 | 0.452 | 1 | |
| AVX Spray Gun ( T ), GT (Gun only) | 129690003 | 0.452 | 1 | |
| AVX Spray Gun ( Ω ), GT (Gun only) | 129691001 | 0.452 | 1 | |
| (⊥) BASE WITH SIDE FLUID CONNEC. | 129690070 | 0.24 | 0.53 | side |
| (Omega) BASE WITH SIDE FLUID CONNEC. | 129691070 | 0.24 | 0.53 | |
| (⊥) BASE WITH REAR FLUID CONNEC. | 129690080 | 0.48 | 1.06 | |
| (Omega) BASE WITH REAR FLUID CONNEC. | 129691080 | 0.48 | 1.06 | |
| (⊥) CEFLA BASE WITH SIDE FLUID CONNEC. | 129690090 | 0.24 | 0.53 | |
| FLUID FITTING KIT (JIC) FOR SIDE OUTLET BASE | 129690075 | |||
| FLUID FITTING KIT (JIC) FOR REAR OUTLET BASE | 129690085 | |||
| Fitting kit for side outlet base Cefla | 129690065 |
| Designation | Part number | Details | Fan control | Surface |
|---|---|---|---|---|
| VX24 KHVLP - Xcite®+ type ring | 132720020 | Long ears, no index | Full jet | Anodized Black |
| AIRCAP VX124 - HVLP | 132720055 | Long ears, no index | Anodized Black | |
| AIRCAP VX124 - HVLP (MVX ring) | 132720065 | Anodized Black | ||
| AIRCAP VX14 - HVLP | 132670920 | Short ears, no index | Reduced jet | Aluminum |
| AIRCAP VX114 - HVLP | 132670940 | Short ears, no index | Aluminum | |
| AIRCAP VX54 | 132670030 | Short ears, no index | Non-stick coating | |
| Aircap protection (pack of 3) | 132720003 | |||
| Package of Seals AVX ( Air and Fluid) | 129690901 | |||
| ADJUSTABLE FAN WIDTH MANUAL NEEDLE AUTO.GUN (M14x100) | 129253100 | |||
| ADJUSTABLE FAN WIDTH CONNECTOR - M14x100 - (F) 1/4 BSPP | 029253002 | |||
| ACETAL SEAT (PACK OF 10) | 129679904 | For very low viscosity products | ||
| COMPLETE ATTACHMENT FOR AUTO. GUN ROD D16 + FIXING NUT | 049351000 | |||
| Mounting support DIA.12mm | 049351700 | |||
| MOUNTING SUPPORT SWIVELING | 049351705 | |||
| ROBOTIC BASE 60° - T - WITH FILTER | 129691170 |
For pricing and availability on the Sames AVX Automatic Airmix® Spray Gun, call FTS at (248) 348-6700 or request a quote online.
