DeVilbiss SRi Pro Lite Spray Gun

Manufacturer Part Number: SRIPROL

DeVilbiss SRi Pro Lite precision touch-up and spot repair spray gun for fine shading, retouching and stencilling in automotive and general industry.

Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.

Product Status:

Available

Tags:

Category:

Manufacturer:

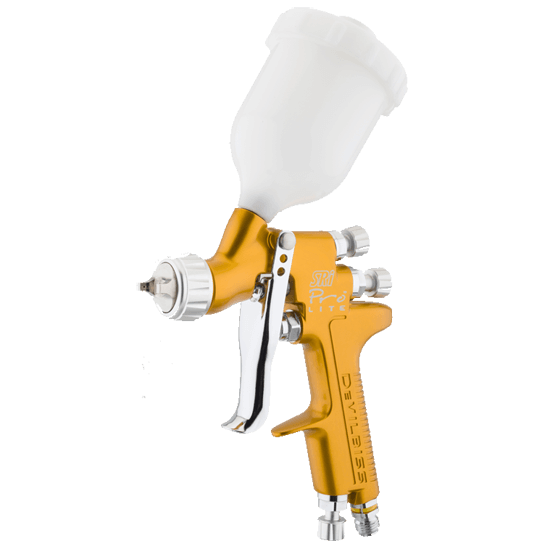

DeVilbiss SRi Pro Lite spray gun
DeVilbiss SRi Pro Lite Spray Gun

Description:

DeVilbiss SRi Pro Lite precision touch-up and spot repair spray gun for fine shading, retouching and stencilling in automotive and general industry.

A fine finish spray gun to provide ultra sensitive fan pattern control with the comfort of a full-size spray gun.

The Devilbiss SRI Pro Lite is the ultimate high precision spray gun providing superb feathering control combined with the pattern range and versatility needed for top quality finishing including spot repairs, shading and stencilling, whilst providing excellent comfort stability balance and delicacy of control. A new edition to the range is the SRi Pro Lite Micro which has been custom built for the high precision techniques used in the growing field of micro repairs.

Typical Applications in General Industry

  • Fine shading
  • Retouching
  • Stencilling
  • Spot repair
  • Reworking
  • A small scale fine finish spray gun with many practical uses throughout general industry, ergonomically styled for comfort.
  • Choice of HVLP or Trans-Tech® Compliant air caps provide superb atomisation of both solvent and waterbased materials
  • Critically engineered Stainless Steel fluid tips & needles give ultimate feathering control
  • Balanced air valve design for lighter trigger pull and improved air flow
  • Lightweight, strong, cast aluminium spray gun body
  • Reduced needle spring loading enhances trigger sensitivity
  • SRi Pro Lite is supplied as standard with a qualityscrew-top gravity feed cup with 125mls capacity
  • Optional inexpensive semi-disposable cups are available.

Suitable for these materials

  • Solvents and water based paints
  • Stains and varnishes
  • Inks and dyes
  • Lacquers

The SRi Pro Lite spray gun is constructed of the very highest grade alloys and stainless steels to ensure smooth operation as well as high impact resistance. Every single component within the SRi Pro Lite spray gun is quality controlled and machined parts are checked to exacting tolerances.

DeVilbiss DeKup Disposible Paint Cups are available for SRi Pro Lite Gravity Spray Guns

Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.

Features:

Technical Specifications

Max static air input pressure (P1)12 bar [175 psi]
Gun air inlet pressure, High Efficiency and HVLP, gun triggered2.0 bar [29 psi]
Vibration level<2.5 m/s²
Gun body, air cap retaining ring, knobsAnodised aluminium
Air capNickel plated brass
Fluid tip, fluid needle, trigger studStainless steel

Models & Gun Part Numbers

Part #Model
SRIPROLDeVilbiss SRi Pro Lite Manual Gun

Repair Kits & Service Parts

Part #Description
PRO-415-1Spray gun repair kit
SN-404-KPacking, spring & packing nut kit
SRI-510Gravity cup kit
SRI-414-K2Gravity cup lid (kit of 2)
SRI-42-K3Filter (kit of 3)

Additional air caps, fluid tips, needles and parts are listed in the DeVilbiss service manual below. Contact FTS for help matching parts to your gun.

Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.

DeVilbiss SRi Pro Lite Service Manual SB-E-2-512
