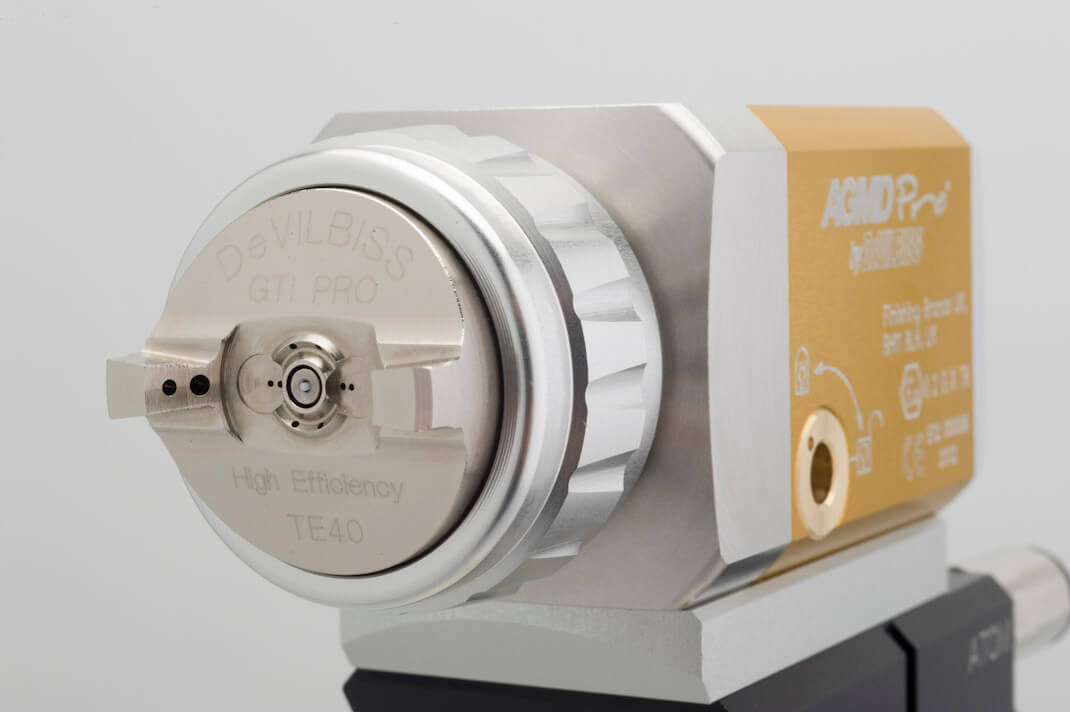

DeVilbiss AGMD Pro Automatic Spray Gun

DeVilbiss AGMD Pro automatic spray gun with a quick detach gun head, DeVilbiss atomization technology and fluid passages built for efficient color change on machine mount and robot applications.

The new design AGMD Pro features a simple quick detach gun head which provides reduced production downtime allowing servicing exchange for maintenance in seconds. The improved internal fluid passages, facilitates efficient color change and flushing cycles required by Class A finishes. This new platform of Automatic gun technology has the ability to improve Transfer Efficiency whilst while also providing reduced air consumption. Improved maintenance and serviceability comes as standard from the AGMD Pro which is vital for the high demand finishing industries.

• DeVilbiss Atomization Technology
• High Performance front end technology with removable/replaceable baffle and air cap retaining threads
• New radial clamping device with quick release cam operation from either side of gun “ compact and convenient
• Fast trigger cycle at lower air pressures
• Same Tool Center Point as original DeVilbiss AGMD model
• Certified air caps with indexing facility
• Plastic tip needle on stainless steel seat for increased life (option)
• Suitable for waterborne and solvent base coatings

The AGMD Pro gun can be configured for standard machine mount applications or upon adapters and hose bundles suitable for most common painting robots.

• Fluid path with low pressure drop and smooth passageways
• More efficient color change
• Radial clamping device for positive sealing and reduced risk of O-ring damage
• No exposed clamping mechanism
• Air cap indexing without fluid nozzle removal
• Air cap retaining ring with integral seals as standard
• Large piston with fast trigger cycles
• Full trigger stroke at reduced air pressure
• Easy maintenance with fewer critical gun body components
• Fluid needle removable from rear of gun without complete disassembly.
• Gravity feed option

Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
