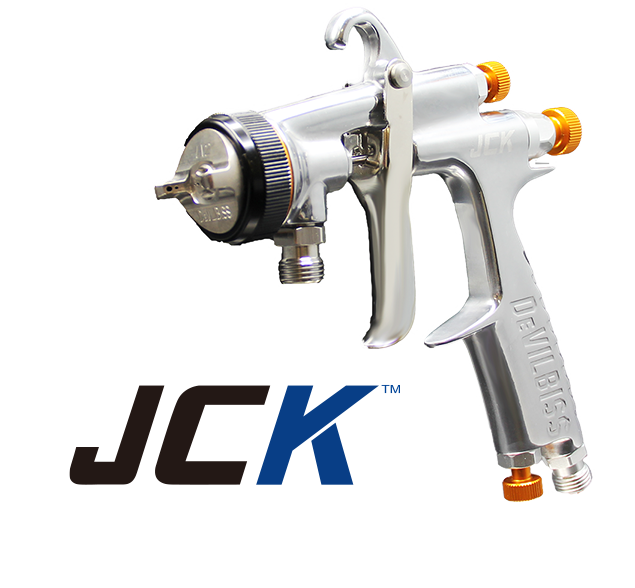

DeVilbiss JCK compact, super lightweight general purpose spray gun with DeVilbiss atomization and a large paint inlet passage for high viscosity and water-based paints.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
Product Status:
Tags:
Category:
Manufacturer:
DeVilbiss JCK compact, super lightweight general purpose spray gun with DeVilbiss atomization and a large paint inlet passage for high viscosity and water-based paints.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Maximum working air pressure | 0.69 MPa |
|---|---|
| Maximum working fluid pressure | 0.69 MPa |
| Fluid inlet | G1/4 |
| Air inlet | G1/4 |
| Type of Feed | Air Cap Part No. | Fluid Tip I.D. (mm) | Air Inlet Pressure (MPa) | Air Consumption (ℓ/min) | Fluid Output (mℓ /min) | Fan Pattern Size (mm) |
|---|---|---|---|---|---|---|
| Gravity | SS1 (LVMP) | 0.8 | 0.1 | 80 | ★50 | ★120 |
| SS3 (Conven-tional) | 1.3 | 0.24 | 145 | 160 | 170 | |
| 1.5 | 200 | 180 | ||||
| 1.8 | 250 | 190 | ||||
| ST1 (Conven-tional) | 1.0 | 0.2 | 240 | ★100 | ★220 | |
| 1.3 | 135 | 240 | ||||
| 1.5 | 165 | |||||
| 1.8 | 200 | |||||
| Suction | SS3 (Conven-tional) | 1.3 | 0.24 | 145 | 120 | 130 |
| 1.5 | 160 | 150 | ||||
| 1.8 | 185 | 180 | ||||
| ST1 (Conven-tional) | 1.3 | 0.2 | 240 | 95 | 180 | |
| 1.5 | 115 | 190 | ||||
| 1.8 | 140 | 210 | ||||
| Pressure | CN1 (Conven-tional) | 0.8/1.0 /1.3/1.5 | 0.24 | 220 | 100 | 160 |
| 200 | 210 | |||||
| 300 | 260 | |||||
| LV1 (LVMP) | 0.8/1.0/ 1.3 | 0.2 | 230 | 100 | 150 | |
| 200 | 200 | |||||
| 300 | 250 | |||||
| LV2 (LVMP) | 0.8/1.0 /1.3 | 0.2 | 230 | 100 | 200 | |
| 200 | 270 | |||||
| 300 | 320 |
Painting Conditions: Air Inlet Regulator = HARG-510 Paint Viscosity = 20sec ★13sec (IHS) Spray Distance = 200mm
Gun Weight:290g
| Part # | Description |
|---|---|
| JCK-100 | Repair kit |
| JCK-443 | Air seal & air valve kit |
| JCK-35 | Fluid inlet kit |
| JCK-108 | Trigger kit |
| JCK-14-K5 | Needle spring (kit of 5) |
Additional air caps, fluid tips, needles and parts are listed in the DeVilbiss service manual below. Contact FTS for help matching parts to your gun.
