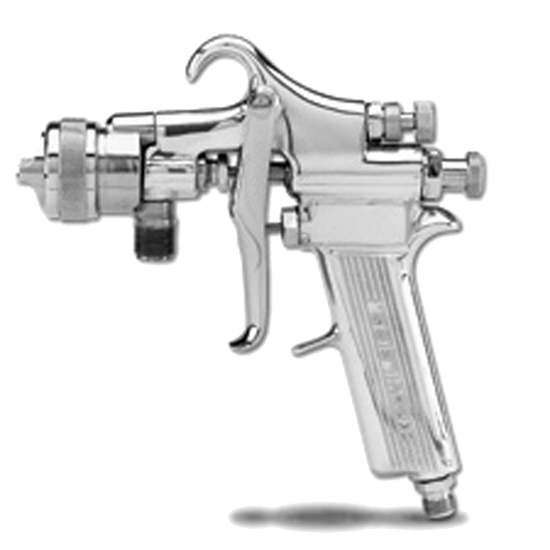

DeVilbiss MBC-510 manual spray gun with a drop forged aluminum body and removable spray head for maximum output and quick changeovers, ideal for zinc coatings.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
Product Status:
Tags:
Category:
Manufacturer:
DeVilbiss MBC-510 manual spray gun with a drop forged aluminum body and removable spray head for maximum output and quick changeovers, ideal for zinc coatings.
Combining a drop forged aluminum body with a forged removable spray head, the MBC-510 spray gun is ideal for applications that require maximum output and quick changeovers. Removable spray head allows for reduced downtime on nozzle combination changeovers. MBC spray guns have nickel-plated brass fluid passages and 400-grade stainless steel fluid tip and needle.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
| Body | Drop forged aluminum |
|---|---|
| Weight | 27 oz. (756 g) with air cap and ring |
| Air inlet | 100 psi max (7 bar), 1/4" NPS (M) |
| Fluid inlet | 150 psi max (10 bar), 3/8" NPS (M) |
| Fluid passages | Nickel-plated brass |
| Wetted parts | Nickel-plated brass, 300 and 400-grade stainless steel |
| Feed type | Pressure feed / suction feed |
| Part # | Model |
|---|---|
| MBC-510 | DeVilbiss MBC Manual Spray Gun |
| Part # | Description |
|---|---|
| KK-4058-1 | MBC repair kit |
| MB-19-K5 | Packing nut kit (kit of 5) |
| JGS-72-K10 | Gasket kit (kit of 10) |
| MBC-1226-K10 | Gasket kit (kit of 10) |
| JGS-477-1 | Trigger, stud and screw kit |
Additional air caps, fluid tips, needles and parts are listed in the DeVilbiss service manual below. Contact FTS for help matching parts to your gun.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability.
