The Binks Spindle Pro is a standardized, modular chain-on-edge conveyor for fast installation and flexible static or power rotator setups. It can be engineered with automatic loaders and unloaders and variable track height for liquid or powder finishing lines.
Product Status:
Category:
Manufacturer:
Spindle Pro is part of the Binks chain-on-edge family (Spindle Master II, Spindle Pro, Spindle King and Spindle Boss) and is engineered for liquid or powder applications.
Binks pairs its chain-on-edge conveyors with its infrared and convection curing equipment so the conveyor and oven are matched to part weight, size, line speed and coating. See the Binks Chain-on-Edge Conveyor brochure (04-508-01).
Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and application support.
| Specification | Binks Spindle Pro |
|---|---|
| Conveyor Type | Standardized, modular chain-on-edge (spindle) conveyor |
| Track | Low friction track, sturdy turn modules |
| Drive | Combination drive and take-up module |
| Rotators | Static or power rotators |
| Automation | Automatic loaders/unloaders with variable track height (engineered) |
| Applications | Liquid or powder coating |

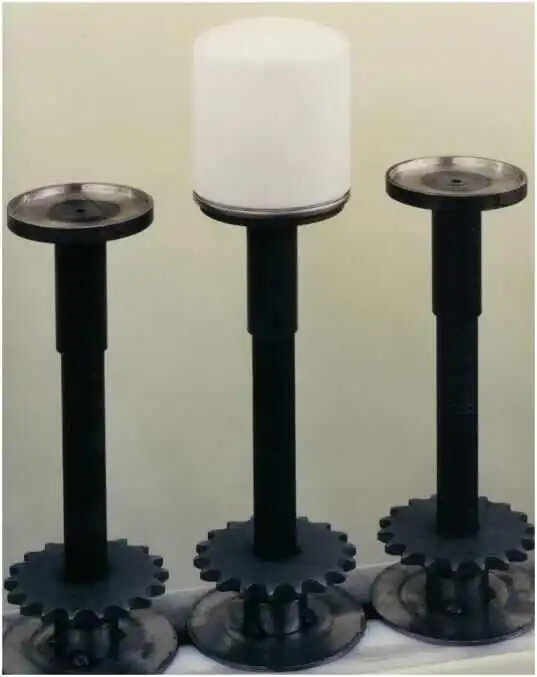

| Spindle | Sprocket spindle for positive rotation; 1-1/2" and 3" center spacing available (engineered) |
Source: binks.com and Binks Chain-on-Edge Conveyor brochure 04-508-01.
Spindle Pro features and options from binks.com.
| Standard Features | Options | Engineered Options |
|---|---|---|
| Sturdy Turn Modules | Static Rotator | Spindle Orientation |
| Low Friction Track | Power Rotator | Automatic Loaders and Unloaders |
| Combination Drive and Take-Up Module | Liquid or Powder Air Knife | Unique Spindle Spacing |
| Sprocket Spindle for Positive Rotation | Part Orientation | Load/Unload Guide Bars and Shields |
| Simple Layout Configurations using Modular Components | Automation Capabilities: Load, Unload, Paint-to-Cure Line Transfer | E-Stop Cable |
| Engineered for Liquid or Powder Applications | Track Height Variations | |
| PLC Controls | ||
| VFD Drives | ||
| Indexing Drives | ||
| Spray Gun Controls |
Binks chain-on-edge conveyor family (brochure 04-508-01).
| Model | Description |
|---|---|
| Spindle Master II | Compact, self-contained chain-on-edge conveyor table, ideal for lighter, smaller parts. Five layouts, quick set-up, adjustable spray gun mountings. |
| Spindle Pro | Standardized, modular components for easy, fast installation; flexible for static or power rotators. Can be engineered with automatic loaders/unloaders and variable track height. |
| Spindle Boss | Heavy-duty industrial chain-on-edge conveyor with welded frame, variable speed drive motor and gearbox, take-up slider table and air cylinder system. Conveys parts through coating booths, ovens and cool downs with variable track height adjustment. |
| Spindle King | Robust chain-on-edge conveyor with a track design for heavy, large parts. Easy to install, with sturdy turn modules and low friction structural track. |
Chain-on-edge conveyor options from Binks brochure 04-508-01. Availability varies by model.
| Option | Description |
|---|---|
| Drive Assist | Used with systems that exceed application data |
| Power Rotator | Rotates parts in booths at variable speeds |
| Air Knife | Used in coating booths to minimize coating on conveyor and spindle |
| Static Rotator | Rotates parts in ovens and cool downs |
| Teflon Wear-Strips | Used in hot areas above 180°F and below 450°F |
| Control Cabinet | Controls conveyor and power rotator |
| VFD Drives | Conveyor and power rotator |
| Indexing Drive | Starts/stops the conveyor for each part automatically |
| PLC Controls | Controls conveyor, power rotator and spray controls |
| Spray Gun Controls | Pneumatic gun trigger and spray gun adjustments |
| Part Orientation (custom) | Indexes spindle for load and unload areas |
| Automatic Loaders and Unloaders (custom) | Automated part loading and unloading |
| Spindle Spacing (custom) | 1-1/2" and 3" center spindle spacing available |
| Track Height Variations (custom) | Engineered track heights |
Flatline conveyor applications from Binks brochure 04-508-01.
| Application | Highlights |
|---|---|
| Brake Pad Systems | Up to 14 lanes wide at 10 to 100 pads per minute; tough finish meeting film build and brake fluid resistance testing; pads cured in under two minutes with zoned temperature control |
| Glass Systems | Flatline conveyors for water- or oil-based ceramic frit, solvent-based mirror backs and organic/non-organic UV inhibitors; respond instantly to empty or full load conditions |
| Media Cure Systems | Single or dual lane, matched to automated count-cut or cartridge assembly equipment; even distribution around the center tube |
