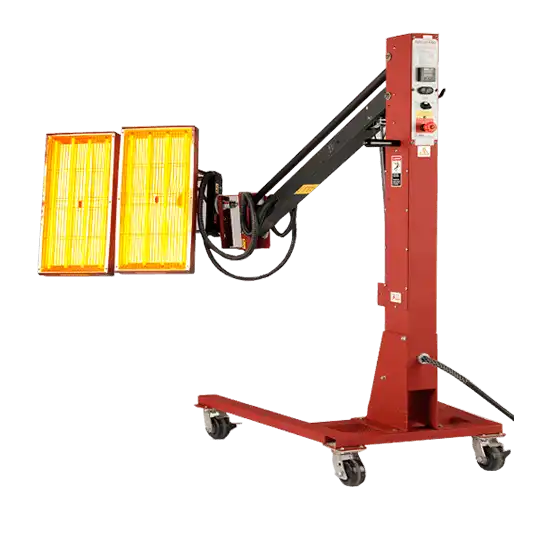

BINKS AutoCure Infrared Portable Curing

The Binks AutoCure line of portable, overhead, side mount and panel infrared heaters cures spot repairs and complete panels using shortwave T3 emitters, laser sighting and accurate temperature control.

Save

Product Status:

Available

Category:

Curing & Convey Equipment

Manufacturer:

Binks

BINKS AutoCure Infrared Portable Curing

Description:

The Binks AutoCure™ line of infrared heaters gives body shops, refinish booths and production plants a fast, accurate way to cure spot repairs and complete panels. Every AutoCure unit combines infrared temperature control with laser-sighting technology, so the operator can position the heater precisely and hold the surface at the correct cure temperature.

AutoCure heaters use shortwave T3 emitters made exclusively for Binks equipment. The halogen-filled clear quartz tubes contain tantalum discs, tungsten filaments, stainless steel leads and durable ceramic end seals, delivering direct, reflected and convective energy across all wavelengths. Lamps are rated for 5,000 hours, and Binks reports that its systems routinely see 10,000 hours or more.

AutoCure Models

AutoCure 3000 Portable Heater – 2 lamps, single head, 1,600 W, for small spot repairs such as posts and sills.
AutoCure 5000 / 5000II Portable Heater – spot-repair curing in a variety of head sizes, with locking wheels to hold position.
AutoCure 6000 / 6000II Overhead Heater – built for overhead XY gantry mounting, with an electric linear actuator for heater positioning.
AutoCure 7000 Side Mount Heater – mounts to a booth or wall where ceiling clearance is minimal.
AutoCure 8000 Panel Heater – portable unit for drying complete panel sections, offered in two standard sizes.

Key Features

Accurate surface temperature control to ±5°F
Heating range to 400°F (204°C)
Laser spot sensor position and temperature indicator
Single or dual temperature setpoints with adjustable time/temperature heat cycles
Adjustable controlled ramp rates to setpoint
Cycle-time-remaining display and automatic timed shut-off
Power-assisted raise and lower; heater head stays in place without locking handles
Configurable for cars, SUVs/trucks and commercial trucks

Full part number tables for the AutoCure 3000 and 5000 are below. For details, see the AutoCure brochure (04-520B-01).

Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and application support.

Features:

Technical Specifications

Specification	AutoCure Infrared Heaters
Models	3000 portable, 5000/5000II portable, 6000/6000II overhead gantry, 7000 side mount, 8000 panel heater
Emitters	Binks shortwave T3 – halogen-filled clear quartz, tungsten filament, tantalum discs, ceramic end seals
Rated Lamp Life	5,000 hours (Binks reports 10,000+ hours in typical use)
Heating Range	To 400°F (204°C)
Temperature Control	±5°F surface temperature control (brochure feature list); AutoCure 5000 description lists ±10°F accuracy
Heater Power	1.6 kW, 2.5 kW and 3.8 kW heads (per part number tables)
Voltages	240V, 480V and 575V (per part number tables)
Lamps / Heads	2 or 4 lamps; single or dual head
Controls	Automatic control, single/dual setpoints, ramp rates, timed cycles, cycle-time display, automatic shut-off
Positioning	Laser spot sensor, 360° pivot, power-assisted raise/lower, locking arm and locking wheels
Configurations	Cars, SUVs/trucks, commercial trucks

Source: Binks AutoCure brochure 04-520B-01 and binks.com.

BINKS AUTOCURE MODELS

Binks AutoCure infrared heater family.

Model	Type	Description
AutoCure 3000	Portable heater (standard product)	2 lamps, single head, 1,600 W; temperature control and laser sighting for small spot repairs such as post and sill repairs
AutoCure 5000 / 5000II	Portable heater (standard product)	Spot repairs; variety of head sizes; single or dual temperature setpoints, automatic timed heat cycle and shut-off, locking wheels
AutoCure 6000 / 6000II	Overhead heater (special order)	Mounts to an overhead XY gantry; electric linear actuator for heater positioning; single or dual lamp options
AutoCure 7000	Side mount heater	Mounts to a booth or wall where ceiling clearance is minimal; variety of sizes
AutoCure 8000	Portable panel heater	Dries complete panel sections; locking wheels; two standard sizes

AUTOCURE 3000 PORTABLE HEATER PART NUMBERS

AutoCure 3000 portable heater (2 lamps, single head, 1,600 W) part numbers from Binks brochure 04-520B-01. Call FTS at (248) 348-6700 for pricing.

Part #	Voltage	Temp Scale	Power %
AC3-2116-240-F-100	240V	°F	100%
AC3-2116-480-F-100	480V	°F	100%
AC3-2116-480-F-75	480V	°F	75%
AC3-2116-480-C-100	480V	°C	100%

AUTOCURE 5000 PORTABLE HEATER PART NUMBERS

AutoCure 5000 portable heater part numbers from Binks brochure 04-520B-01. Head codes: 2116/2216 = 2 lamp 1.6 kW, 2225 = 2 lamp 2.5 kW, 4125/4225 = 4 lamp 2.5 kW, 4138/4238 = 4 lamp 3.8 kW. Call FTS at (248) 348-6700 for pricing.

Vehicle Configuration	Part #	Lamps / Head	Watts	Voltage	Temp / Power	Min Ht.	Max Ht.
Cars	AC5-4225-480-PL-CRL-20-F-75	4 / Dual	2.5 kW	480V	°F / 75%	2.3"	67"
Cars	AC5-4225-480-PL-CRL-20-C-75	4 / Dual	2.5 kW	480V	°C / 75%	2.3"	67"
SUVs / Pickups / Trucks	AC5-2116-240-F-100	2 / Single	1.6 kW	240V	°F / 100%	6.5"	83.6"
SUVs / Pickups / Trucks	AC5-2116-480-SP-STE-10-F-100	2 / Single	1.6 kW	480V	°F / 100%	6.5"	83.6"
SUVs / Pickups / Trucks	AC5-2116-480-SP-STE-20-F-100	2 / Single	1.6 kW	480V	°F / 100%	6.5"	83.6"
SUVs / Pickups / Trucks	AC5-2116-480-SP-STE-20-F-75	2 / Single	1.6 kW	480V	°F / 75%	6.5"	83.6"
SUVs / Pickups / Trucks	AC5-2116-480-SP-STE-30-F-100	2 / Single	1.6 kW	480V	°F / 100%	1.6"	83.2"
SUVs / Pickups / Trucks	AC5-2225-480-PL-STE-20-F-100	2 / Dual	2.5 kW	480V	°F / 100%	1.6"	83.2"
SUVs / Pickups / Trucks	AC5-2225-480-PL-STE-20-F-75	2 / Dual	2.5 kW	480V	°F / 75%	4.5"	83.6"
SUVs / Pickups / Trucks	AC5-4125-240-PL-STE-20-F-100	4 / Dual	2.5 kW	480V*	°F / 100%	4.5"	83.6"
SUVs / Pickups / Trucks	AC5-4125-480-PL-STE-10-F-100	4 / Dual	2.5 kW	480V	°F / 100%	4.5"	83.6"
SUVs / Pickups / Trucks	AC5-4125-480-PL-STE-20-F-100	4 / Dual	2.5 kW	480V	°F / 100%	4.5"	83.6"
SUVs / Pickups / Trucks	AC5-4125-480-PL-STE-30-F-100	4 / Dual	2.5 kW	480V	°F / 100%	4.5"	83.6"
SUVs / Pickups / Trucks	AC5-4138-480-PL-STE-20-F-100	4 / Dual	3.8 kW	480V	°F / 100%	4.5"	83.6"
SUVs / Pickups / Trucks	AC5-4138-480-PL-STE-20-F-75	4 / Dual	3.8 kW	480V	°F / 75%	4.5"	83.6"
SUVs / Pickups / Trucks	AC5-4138-480-PL-STE-30-F-100	4 / Dual	3.8 kW	480V	°F / 100%	4.5"	83.6"
SUVs / Pickups / Trucks	AC5-4238-575-SP-STE-20-80-C-60-C	4 / Dual	3.8 kW	575V	°C / 60%	2.5"	81.2"
Commercial Trucks	AC5-2216-480-SP-CTE-20-F-100	2 / Dual	1.6 kW	480V	°F / 100%	11"	92.5"
Commercial Trucks	AC5-2216-480-SP-CTE-20-F-75	2 / Dual	1.6 kW	480V	°F / 75%	11"	92.5"
Commercial Trucks	AC5-2225-480-PL-CTE-20-F-100	2 / Dual	2.5 kW	480V	°F / 100%	11"	92.5"
Commercial Trucks	AC5-2225-480-PL-CTE-20-F-75	2 / Dual	2.5 kW	480V	°F / 75%	11"	92.5"
Commercial Trucks	AC5-4125-240-PL-CTE-20-F-100	4 / Dual	2.5 kW	240V	°F / 100%	13.9"	93"
Commercial Trucks	AC5-4125-480-PL-CTE-20-F-100	4 / Dual	2.5 kW	480V	°F / 100%	13.9"	93"
Commercial Trucks	AC5-4225-480-PL-CTE-20-F-100	4 / Dual	2.5 kW	480V	°F / 100%	6.2"	90.5"
Commercial Trucks	AC5-4225-480-PL-CTE-20-F-75	4 / Dual	2.5 kW	480V	°F / 75%	6.2"	90.5"
Commercial Trucks	AC5-4238-480-PL-CTE-20-F-100	4 / Dual	3.8 kW	480V	°F / 100%	6.2"	90.5"
Commercial Trucks	AC5-4238-480-PL-CTE-20-F-75	4 / Dual	3.8 kW	480V	°F / 75%	6.2"	90.5"
