Binks IntelliCure IR1 Overhead Infrared Oven

The Binks IntelliCure IR1 is a modular overhead infrared boost and cure oven for liquid and powder coatings, with a 15-inch touchscreen, remote diagnostics and recipe-based zone control.

Product Status:

Available

Category:

Manufacturer:

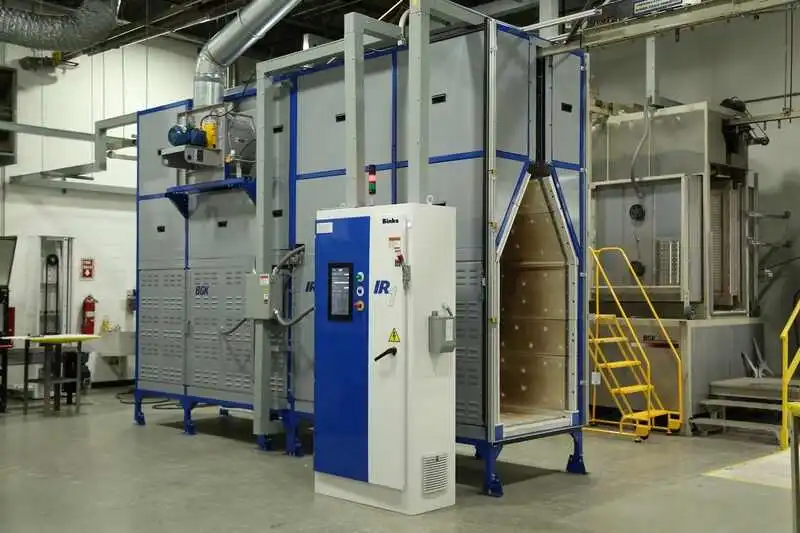

Binks IntelliCure IR1 overhead infrared curing oven system
Binks IntelliCure IR1 Overhead Infrared Oven

Description:

The Binks IntelliCure IR1 is an overhead infrared boost and cure oven built for versatility and efficiency. Its modular, configurable design allows optimized delivery lead times and lets each system be tailored to your application – as a standalone curing oven, or as a booster or drying oven positioned next to or inside a conventional convection oven.

The IR1 is compatible with all coating types, liquid and powder, and is engineered for a wide range of industries and part profiles. It runs on the Binks IntelliCure platform with a 15-inch full-color touchscreen for app-like control of the entire system, plus full remote operation and diagnostics so the oven can be managed, monitored and troubleshot from anywhere. It is a natural upgrade path for plants running legacy BGK infrared systems.

Features

  • Fully modular system – configure as a standalone curing oven, booster oven or drying oven
  • Supports powder and liquid coatings across industries and part sizes
  • Single, centrally located control panel with 15" touchscreen
  • Remote access and diagnostics
  • Heater modules with hinged lamp access and integrated supply air
  • Recipe-based control with independent heater zone, temperature and lamp intensity settings

Benefits

  • Efficiency – a higher percentage of energy goes directly to the part in a smaller footprint
  • Focus – energy is absorbed primarily by the coating, not the substrate
  • Control – user-defined zones with optional pyrometer feedback
  • Speed – IR lamps reach temperature instantly and cool rapidly, cutting cycle times
  • Savings – lamps run only when part detection is active, lowering energy use, rework and part handling

Download the IntelliCure IR1 brochure (04-555-01) for configuration details.

Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and application support.

What makes IR1 different

The IntelliCure IR1 is an overhead infrared oven system with a fully modular design. The official Binks page states it supports a wide range of applications, part profiles, and production demands and is used when upgrading from legacy BGK systems or starting fresh.

Features:

Technical Specifications

SpecificationIntelliCure IR1
Oven TypeOverhead infrared boost and cure oven – standalone, booster or drying oven
CoatingsLiquid and powder, all coating types
Control PlatformBinks IntelliCure; 15" full-color touchscreen; single central control panel
Remote CapabilityFull remote operation and diagnostics
Lamp Options3800W/570V, 3650W/480V, 3800W/415V
Lamp Center SpacingEight spacing options for tailored watt density
Heater LayoutOptional angled top/bottom heaters on select configurations
Heater ModulesSupply air standard; hinged lamp access
Part DetectionPhoto eye or proximity sensor standard on all configurations
ExhaustFour standard exhaust blower sizes
RecipesDedicated part recipes with independent zone, temperature and lamp intensity settings
OptionsEntry/exit vestibules, hold zones, additional product detect sensors, closed-loop (pyrometer) temperature control

Source: Binks IntelliCure IR1 brochure 04-555-01 and binks.com.

Where to Buy Binks IntelliCure IR1 Overhead Infrared Oven in Michigan, Indiana and Ohio

Fluid Transfer Systems, Inc. (FTS) is an authorized Binks distributor and Authorized Repair & Service Center in Novi, Michigan. Manufacturers in Michigan, Indiana and Ohio call FTS for the Binks IntelliCure IR1 Overhead Infrared Oven. Third-generation family owned since 1971, FTS serves all three states from one location at 22545 Heslip Drive, Novi, MI 48375.

See who to call for paint finishing equipment in Michigan, Indiana and Ohio.

For pricing and availability, call (248) 348-6700 (Monday to Friday, 8 AM to 5 PM Eastern) or request a quote.

INTELLICURE IR1 CONFIGURABLE OPTIONS

IntelliCure IR1 configuration options.

Configurable OptionDetails
Multiple Power Options3800W/570V, 3650W/480V, 3800W/415V lamp configurations
Customizable Watt DensityEight lamp center spacing options
Flexible Heater LayoutsOptional angled top/bottom heaters
Integrated Motion DetectionPhoto eye or proximity sensor on every unit
Scalable ExhaustFour standard blower sizes
Precision Add-OnsAdditional product detect sensors and closed-loop temperature control
Oven Build OptionsEntry/exit vestibules and hold zones
Standardized ComponentsBinks standardized components for easy part identification, service and replacement
04-555-01 INTELLICURE IR1 BROCHURE
